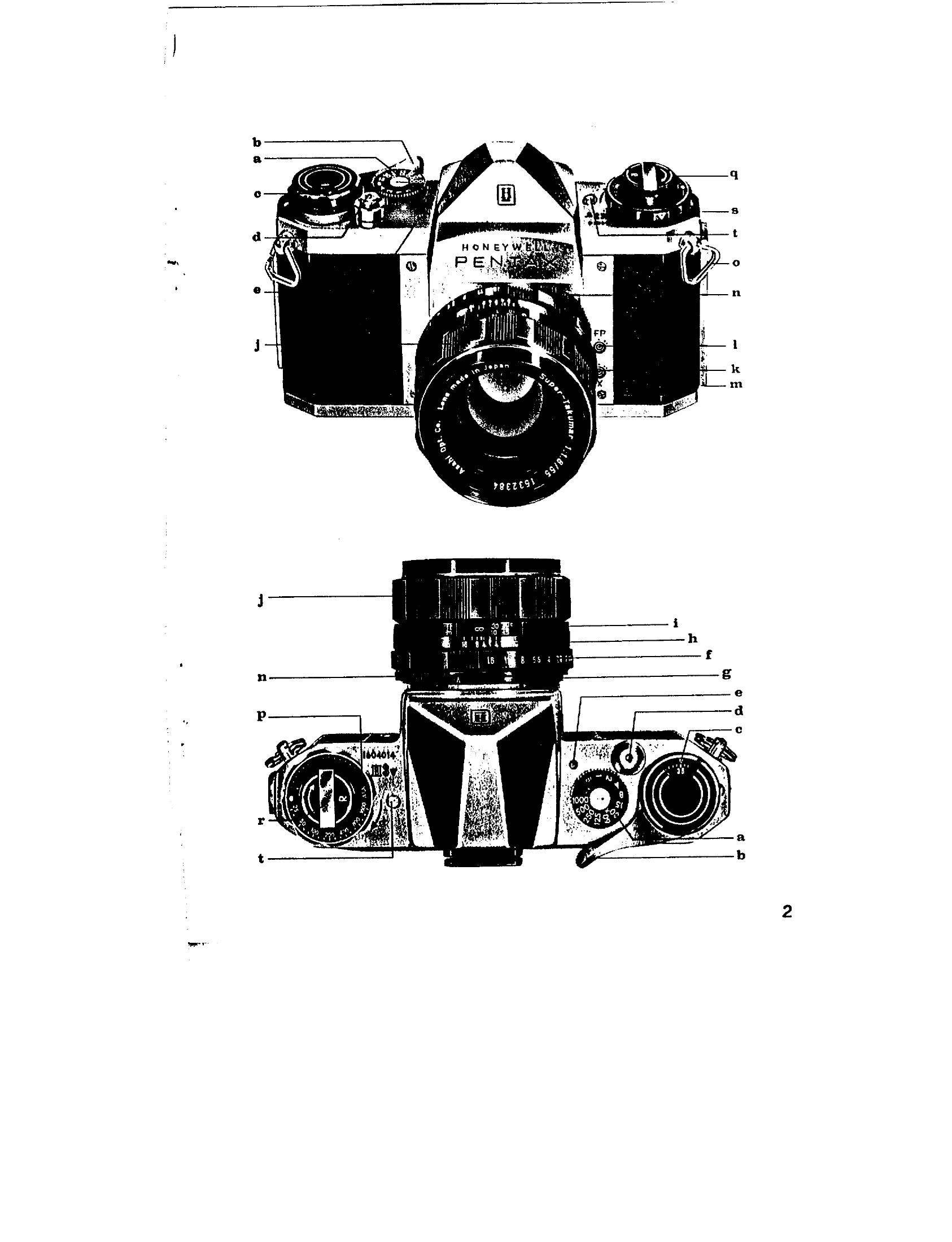

Manual for H3v and H1a

Manual for H3v and H1a

Brand: Honeywell

Category: Camera

Document Type:

Language: EN

Uploaded: Aug. 9, 2025, 11:47 p.m.

Manual Publish Date: 1967-10-01

Warranty Information

Guaranteed against defects for 12 months from date of purchase.

Before Taking Pictures:
  1. Set preview lever to 'A' for bright viewing.
  2. Cock the rapid wind lever fully.
  3. Select aperture using the diaphragm ring.
  4. Set shutter speed.
  5. Compose image in viewfinder.
  6. Focus using the distance scale ring.
  7. For depth of field, move preview lever to 'M'.
Film Loading:
  1. Open back by pulling out the lock.
  2. Pull out rewind knob, insert cassette, push knob back, insert leader into take-up spool.
  3. Turn wind lever to engage sprockets, then close back.
Film Wind and Rewind:
  1. Slowly turn rewind knob clockwise to prevent film loosening.
  2. Make two blank exposures before first picture. Cock wind lever fully.
  3. After last picture, wind lever will resist. Unfold rewind crank to rewind film into cassette.
  4. Depress rewind release button and rewind.
  5. Open back, remove cassette.
