Warranty Information
One year warranty against defects in material or workmanship, covering repair or replacement.

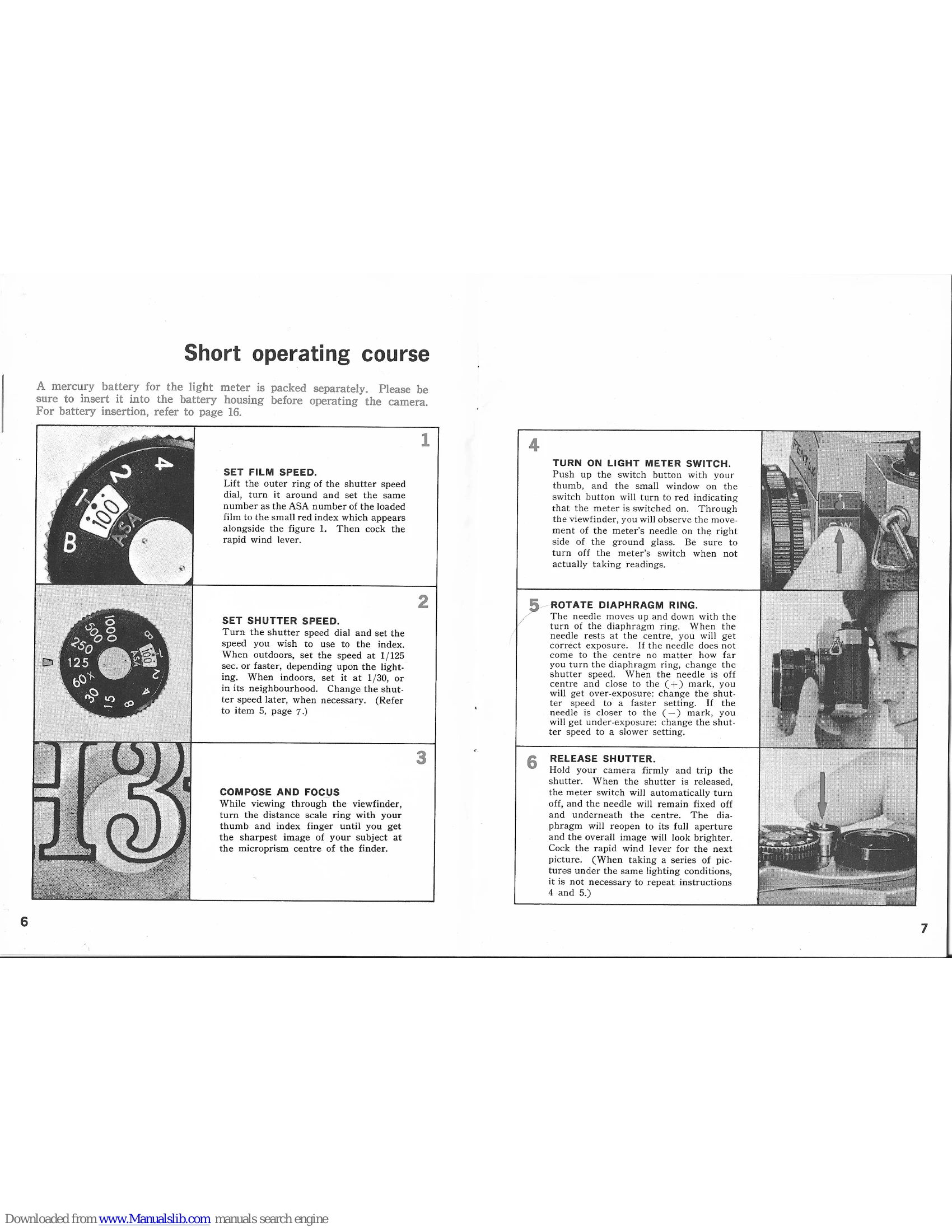

Short operating course
- Set Film Speed: Lift the outer ring of the shutter speed dial, turn it and set the film's ASA number to the red index. Cock the rapid wind lever.
- Set Shutter Speed: Turn the shutter speed dial to the desired speed. Use faster speeds outdoors (e.g., 1/125 sec.) and slower speeds indoors (e.g., 1/30 sec.).
- Compose and Focus: View through the viewfinder and turn the distance scale ring until the image is sharp.
- Turn On Light Meter Switch: Push the switch button. The meter is now active. Observe the needle in the viewfinder. Turn off when not taking readings.
- Rotate Diaphragm Ring: Adjust the diaphragm ring until the meter needle centers. If it doesn't center, change the shutter speed.
- Release Shutter: Hold the camera firmly and trip the shutter. The meter turns off automatically. Cock the rapid wind lever for the next shot.
Troubleshooting and error codes
| Condition | Troubleshooting Step |
|---|---|
| Shutter speed index turns red | Indicates shutter and film speed settings are outside the meter's measurability range. Refer to page 15. |
| Film rewind knob does not turn counter-clockwise when advancing film | Film is not properly loaded. Reload film. |
| Lens may be damaged when removing | Do not place 50mm f/1.4 lens on its threaded end without the rear mount cap in place. |
| Flash synchronization failure | Follow the table for flash terminal, shutter speed, and flash bulb combinations. Note 'X' setting at 1/60 sec. for electronic flash. |
| Self-timer not operating | Ensure the self-timer cocking lever is turned down at least 90°. Depress the self-timer release button, not the shutter button. |
