Warranty Information

The instrument is warranted for 12 months from first turn-on or 18 months from delivery against defects, excluding damage from accident, abuse, or unauthorized modification.

SPM Operation Summary

The SPM Single Point Monitor is designed for easy operation and maintenance, requiring less than three hours annually for routine tasks. Key operations include:

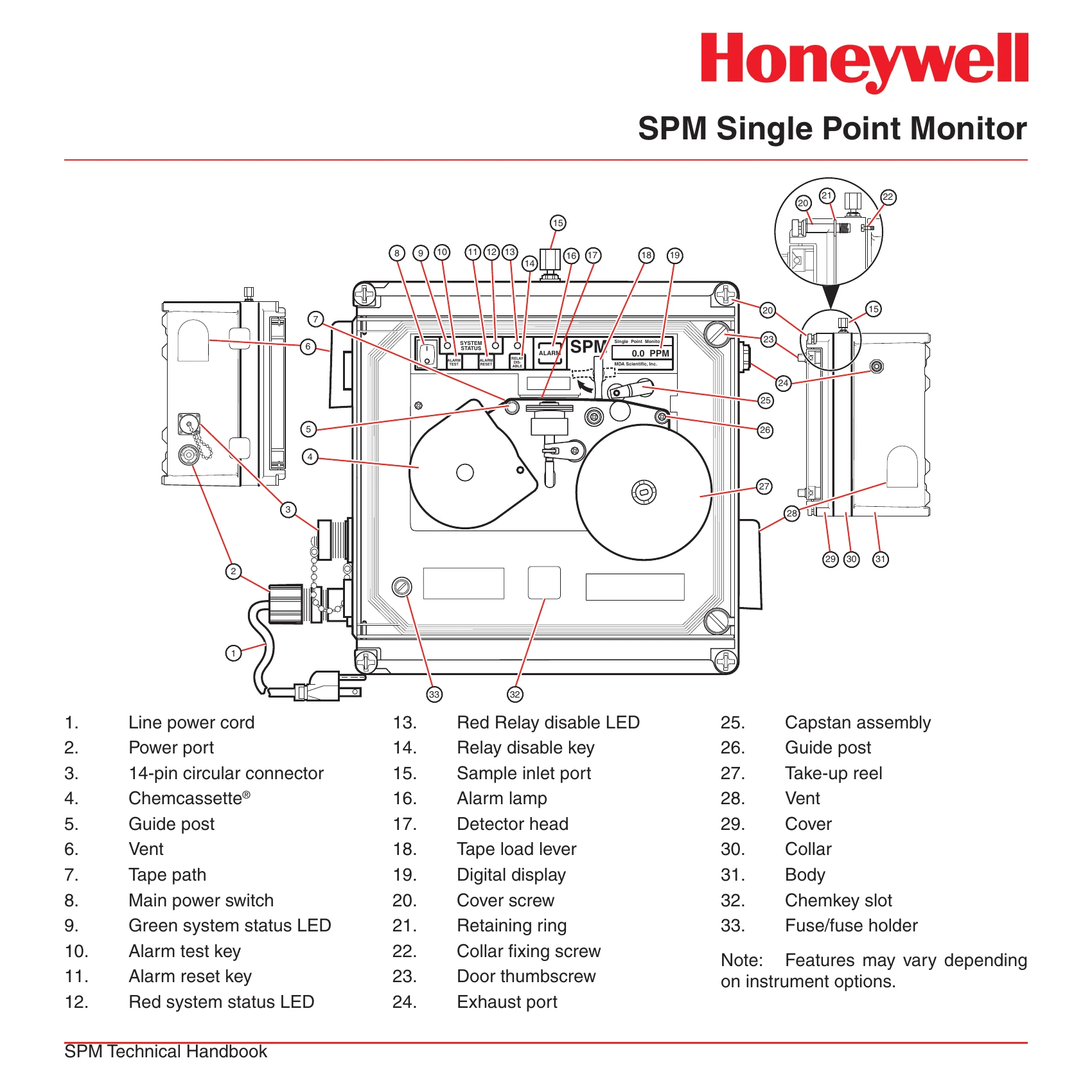

  • Switching On/Off: Use the main power switch (8). The display shows Gas Type, Alarm Levels, and Chemcassette® Type upon startup.
  • Loading Chemcassette®: Follow a step-by-step process involving opening the tape load lever, securing the cassette, threading the tape, and closing the lever.
  • Monitoring: The instrument monitors when the Chemcassette® is in place, the tape load lever is closed, and the power is on. The green system status LED indicates normal operation.
  • Simulating Gas Conditions: Two simulations are available: Gross Alarm (tests audible alarm, lamp, and relays) and Full Alarm (simulates various concentration levels).
  • Verifying System Response: A routine using an optical test card checks the operating condition of the SPM optical system.

Troubleshooting and error codes

Fault Code Description
#17 No leaks between the sampling point and SPM.
FAULT 25 Open Tape Load Lever Fault (lever not closed within two minutes).
FAULT XX General Instrument Fault (See Section 4.7 for specific codes).
