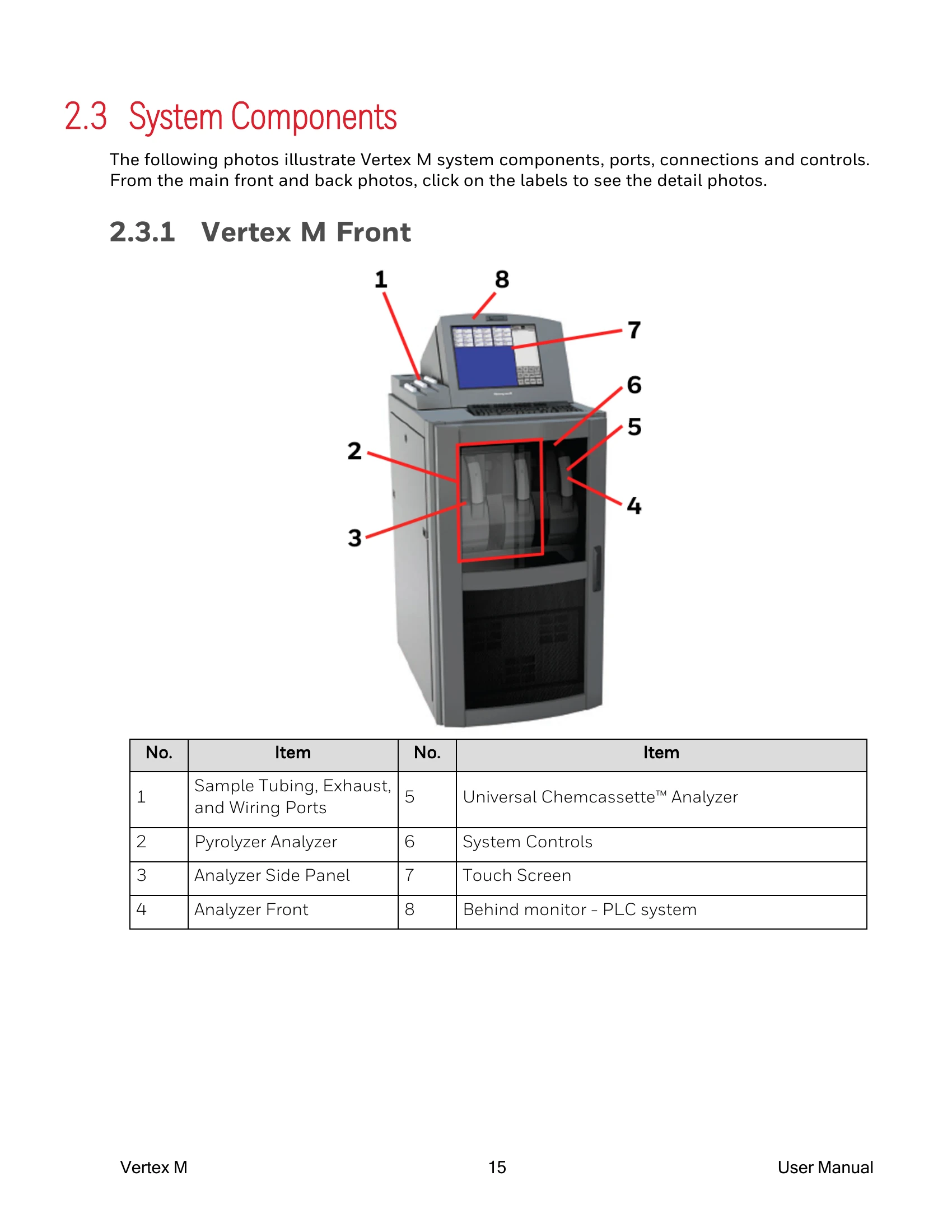

Manual for Vertex M
Uploaded: Nov. 21, 2025, 7:42 p.m.
Warranty Information
Warranted against defects for 12 months from first turn-on or 18 months from delivery.
The Honeywell Vertex M system continuously monitors up to 24 remote locations for toxic gases, responding to programmed levels by triggering alarms, reporting to automation equipment, and storing information. It offers fast response for a wide range of gases, with locations up to 400 ft away. The system uses redundant features for maximum uptime, including redundant power supplies and pumps. Operation is via an LCD touch screen or a local area network (LAN).
Troubleshooting and error codes
| General System Problems | Maintenance Faults | Instrument Faults | Information Events |
|---|---|---|---|
| No communications or intermittent communications with the PLC. | Fault 122: Loss of Sample Flow to Analyzer | Fault 140: Sample Pump Failure | Event 153: LIT Related Informational Events |
| System loses communication with the DAQ. | Fault 123: No Sample Pressure from Analyzer | Fault 141: Sample Pressure Out of Range | |
| Instrument not starting up. | Fault 124: Sample Line Leak Detected | Fault 142: Sample Flow Out of Range | |
| No sample flow. | Fault 125: No Sample Flow for LIT Test | Fault 143: Analyzer Communication Lost |
