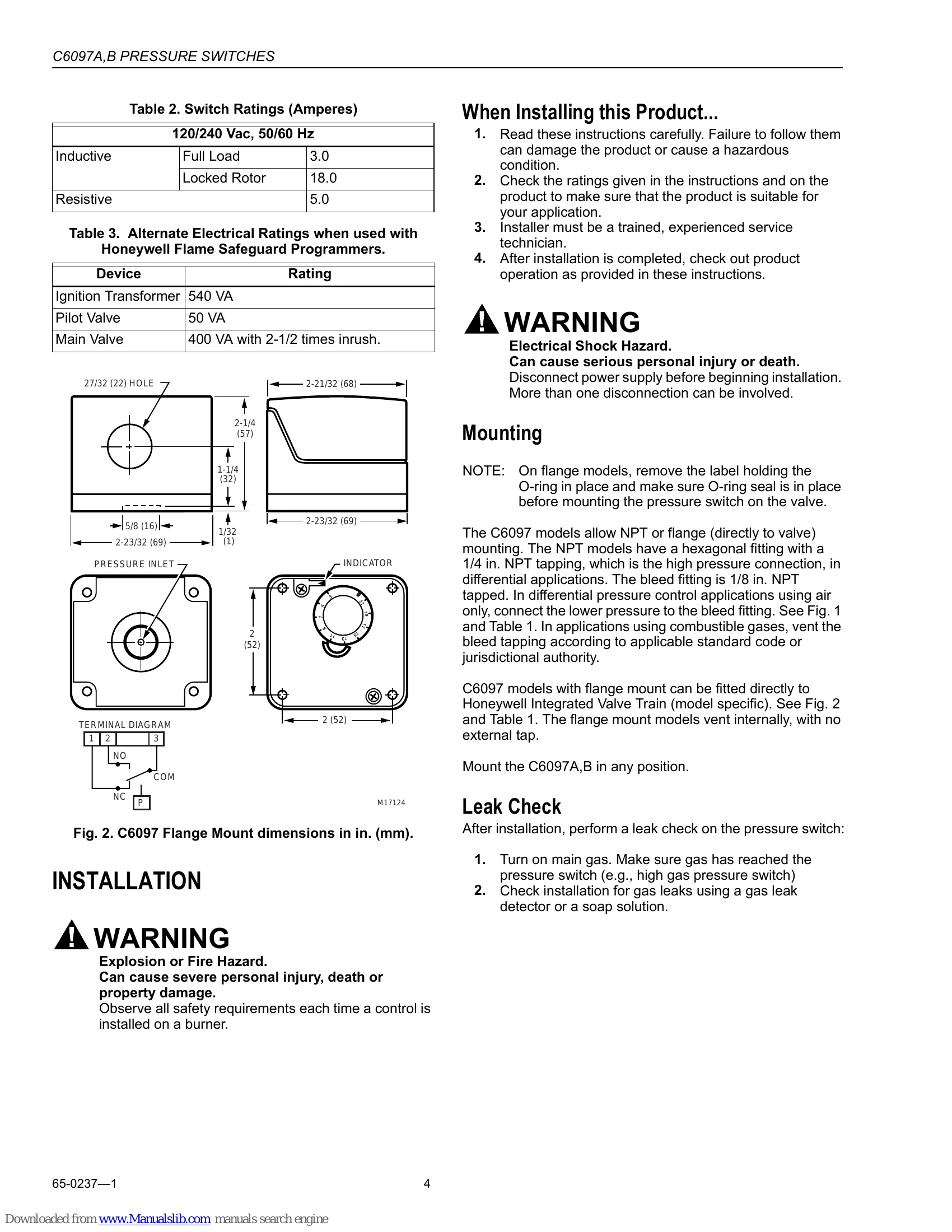

Manual for C6097A,B

The C6097A pressure switch breaks a control circuit and locks out when pressure falls to the setpoint. Recycle models automatically reset when the control circuit returns to the scale setting plus differential. The C6097B pressure switch breaks a control circuit and locks out when pressure rises to the setpoint. Recycle models automatically reset when the control pressure falls to the scale setting minus differential.

Manual reset models require pushing a reset button after the pressure has returned to the normal operating range.

Lockout models cannot be set to recycle automatically.
