Brand: Honeywell
Category: Scanner
Document Type: Manual
Language: EN
Manual for Xenon 1900/1902
Uploaded: Nov. 21, 2025, 6:24 p.m.
Warranty Information
The Xenon 1900 scanner has a limited warranty of five years, the 1902 scanner and base have a three-year warranty, and the battery has a one-year warranty.

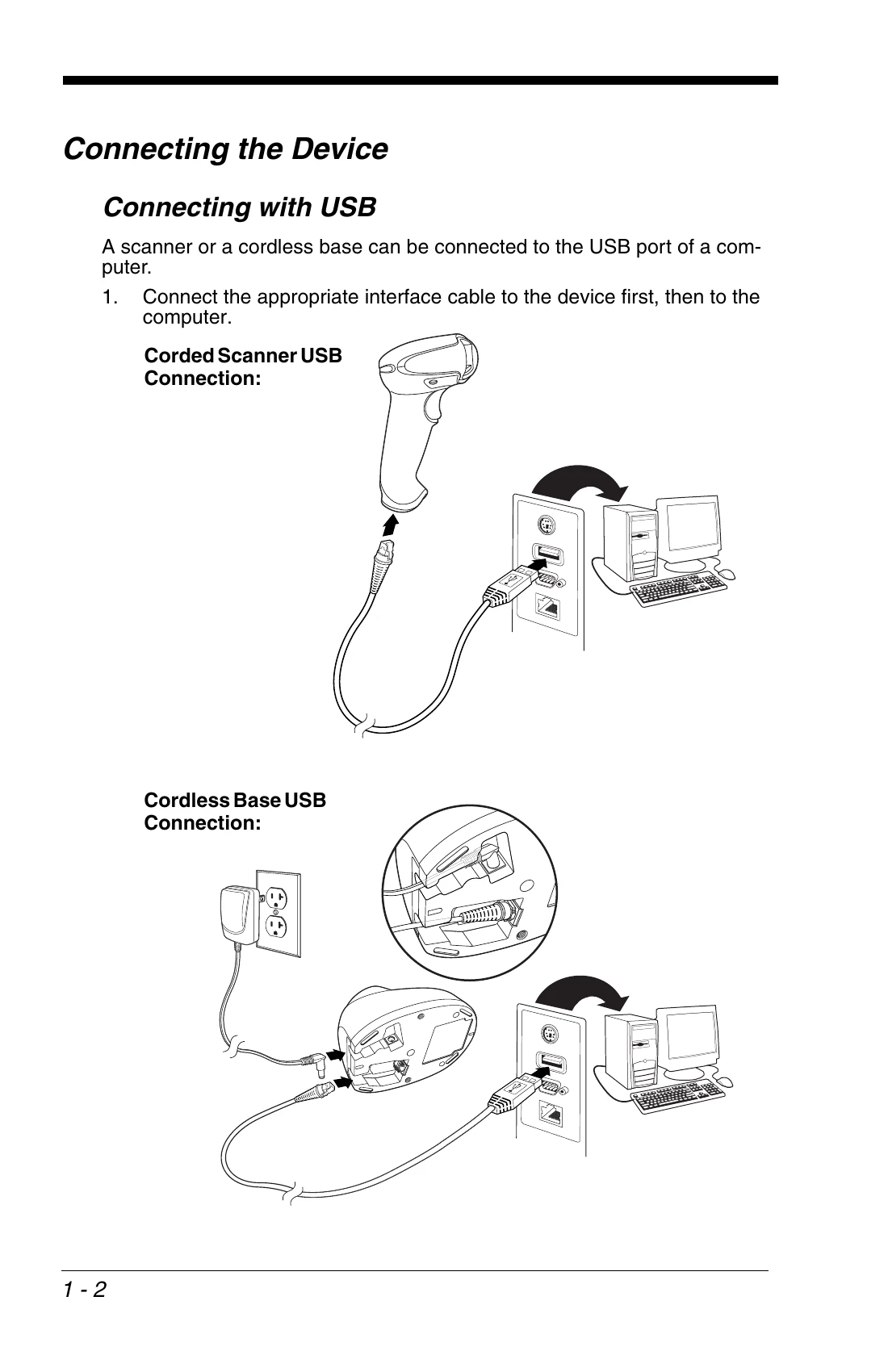

This manual provides installation and programming instructions for the Xenon 1900 and 1902 area-imaging scanners. It covers connecting the device via USB, keyboard wedge, RS232 serial port, and RS485. It also details reading techniques, menu bar code security settings, and how to reset factory or custom defaults. The guide explains cordless system operation, including linking scanners to the base, communication, RF module operation, system conditions, and battery recommendations. Input/output settings, data editing, symbologies, imaging commands, interface keys, utilities, serial programming commands, product specifications, maintenance, and customer support are also covered.
Troubleshooting and error codes
| Selection | Setting * Indicates default | Serial Command # Indicates a numeric entry | Page |
|---|---|---|---|
| Scanner Modes - Single | Locked Link Mode | BASCON0,DNG1 | 3-11 |
| *Open Link Mode | BASCON1,DNG1 | 3-11 | |
| Unlink Scanner | BT_RMV | 3-11 | |
| Override Locked Scanner | BT_RPL1 | 3-11 | |
| Out-of-Range Alarm | Base Alarm Duration (Range 1 - 3000 sec (*0)) | BASORD | 3-12 |
| Scanner Alarm Duration (Range 1 - 3000 sec (*0)) | BT_ORD | 3-12 | |
| Alarm Sound Type | Base Alarm Type | BASORW | 3-12 |
| Scanner Alarm Type | BT_ORW | 3-12 | |
| Flexible Power Management | *Full Power | BT_TXP100 | 3-13 |
| Medium Power | BT_TXP35 | 3-13 | |
| Medium Low Power | BT_TXP5 | 3-13 | |
| Low Power | BT_TXP1 | 3-13 | |
| Batch Mode | Automatic Batch Mode | BATENA1 | 3-15 |
| *Batch Mode Off | BATENA0 | 3-15 | |
| Inventory Batch Mode | BATENA2 | 3-15 | |
| Batch Mode Beep | Off | BATBEP0 | 3-15 |
| *On | BATBEP1 | 3-15 | |
| Batch Mode Storage | *Flash Storage | BATNVS1 | 3-16 |
| RAM Storage | BATNVS0 | 3-16 | |
| Batch Mode Quantity | *Off | BATQTY0 | 3-16 |
| On | BATQTY1 | 3-16 |
