Brand: HP
Category: Computer
Document Type: Manual
Language: EN
Manual for 2011x/2011s
Uploaded: Nov. 21, 2025, 7:21 p.m.
Manual Publish Date: 2011-06-01
Warranty Information
Warranty information is not explicitly stated with a period but refers to specific warranty statements accompanying products and services.

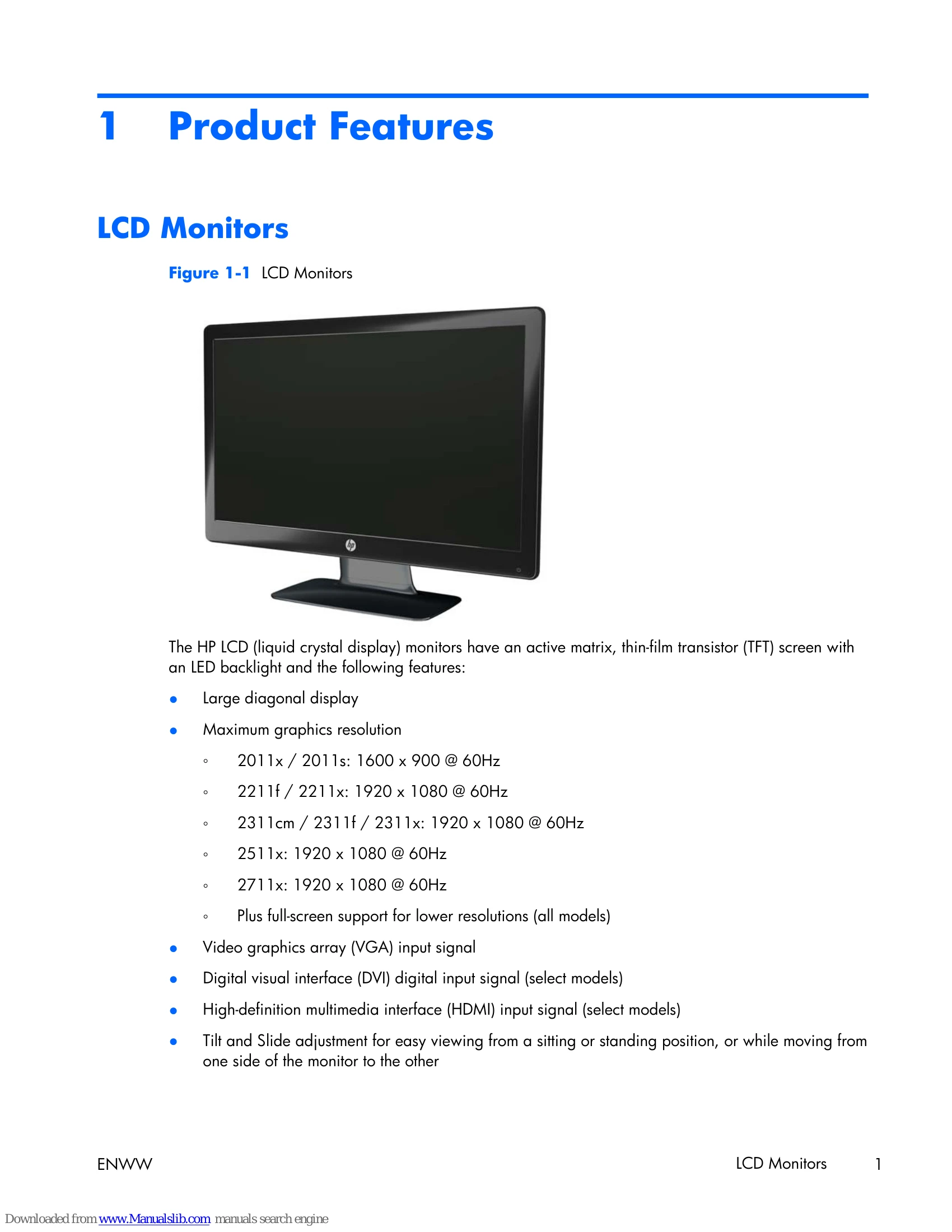

- Product Features: Large diagonal display, maximum graphics resolution (specific to model), full-screen support, VGA, DVI, and HDMI input signals, tilt and slide adjustment, dynamic contrast ratio (DCR), external USB powered speakers, Plug and Play, On-screen display (OSD) for setup and optimization, Power Saver, Quick View Settings (Text, Movie/Game, Photo, Custom modes), HDCP support, software and utilities CD.
- Safety and Maintenance: Warnings and precautions for electrical shock, proper workstation setup, use of surge protection, furniture support, and cord routing. Maintenance includes cleaning the monitor and handling it carefully.
- Setting Up: Unpacking, assembling the base and pedestal, connecting monitor cables (VGA, DVI-D, HDMI), connecting the power cord, installing the cable management clip, turning on the monitor, selecting video input, adjusting tilt, connecting external speakers, and wall mounting.
- Operating the Monitor: Installing drivers, using front-panel controls, navigating the On-Screen Display (OSD) for various settings, identifying monitor conditions, and utilizing the Power-Saver feature.
Troubleshooting and error codes
| Common Problem | Possible Cause | Solution |
|---|---|---|
| No image displayed | Monitor is not powered on. | Press the monitor power button. |
| Monitor brightness and contrast are set too low. | Adjust brightness and contrast settings using the OSD. | |
| Video cable is not connected correctly. | Ensure the video cable is securely connected to both the monitor and the computer. | |
| Computer is not powered on. | Press the computer power button. | |
| No image displayed or wrong image displayed | Incorrect input selected. | Press the Source button on the monitor to select the correct input. |
| Screen image is not the correct size or is mispositioned. | Monitor is not set to optimum resolution. | Set the monitor to its optimum resolution as specified in the technical specifications. |
| Graphics card is not set to optimum resolution. | Adjust the display resolution in the computer's operating system. | |
| Flickering screen | Refresh rate is too low. | Set the monitor to the recommended refresh rate (typically 60 Hz) in the computer's display settings. |
| Burn-in image (image retention) | Static image displayed for a prolonged period. | Activate a screen saver or turn off the monitor when not in use. (Note: Burn-in is not covered by warranty). |
