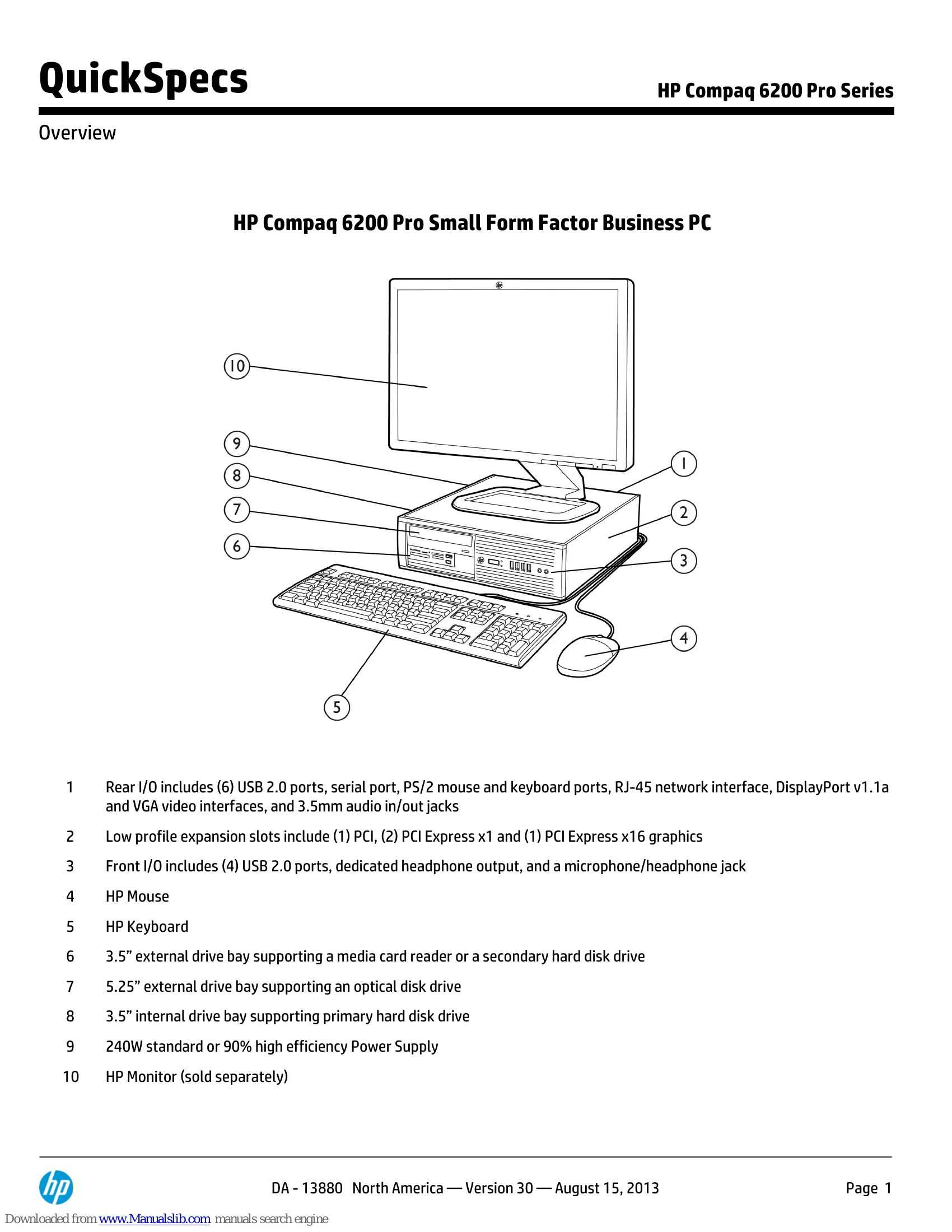

Spec Sheet for Compaq 6200 Pro
Uploaded: Nov. 21, 2025, 6:45 p.m.
Manual Publish Date: 2013-08-15
Warranty Information
Standard warranties up to 5-5-5 are provided, with terms and conditions varying by country.
- Choice of two chassis form factors: Small Form Factor (SFF) and Microtower (MT).
- Components are 100% free of brominated flame retardants (BFRs) and Polyvinyl Chloride (PVC).
- UEFI BIOS for enhanced security, manageability, and software image stability.
- Intel Q65 Express chipset with Intel 2nd generation Core processors and Intel HD Graphics.
- Integrated Intel 82579LM GbE network connection.
- Supports DDR3 Synchronous Dynamic Random Access Memory (SDRAM).
- Integrated dual independent monitor support via VGA and DisplayPort v1.1a.
- Standard or 90% high efficiency power supplies available (ENERGY STAR qualified).
- Guaranteed lengthy purchase lifecycles and image stability.
- Software image fully compatible across all models and form factors.
- Designed using industry leading Design for Environment standards.
- Selected configurations with global availability.
- Tailored HP Factory Express deployment and lifecycle services available.
- Protected by HP Services, including standard warranties.
- Tool-less serviceability features for easier upgrades and repairs.
Troubleshooting and error codes
| Diagnostic LED Explanation | Description |
|---|---|
| Number of 1-second red LED blinks followed by a 2-second pause, then repeats: | |
| 2 | processor thermal protection activated |
| 3 | processor not installed |
| 4 | power supply failure |
| 5 | memory error |
| 6 | video error |
| 7 | PCA failure (ROM detected failure prior to video) |
| 8 | invalid ROM, bootblock recovery mode |
| 9 | system not fetching code |
| 10 | system hang while loading an option ROM |
