Brand: HP
Category: Computer
Document Type: Manual
Language: EN
Manual for LA2006x, LA2206x, and LA2306x
Uploaded: Nov. 21, 2025, 9:25 p.m.
Manual Publish Date: 2011-06-01
Warranty Information
Refer to the express warranty statements accompanying HP products and services.

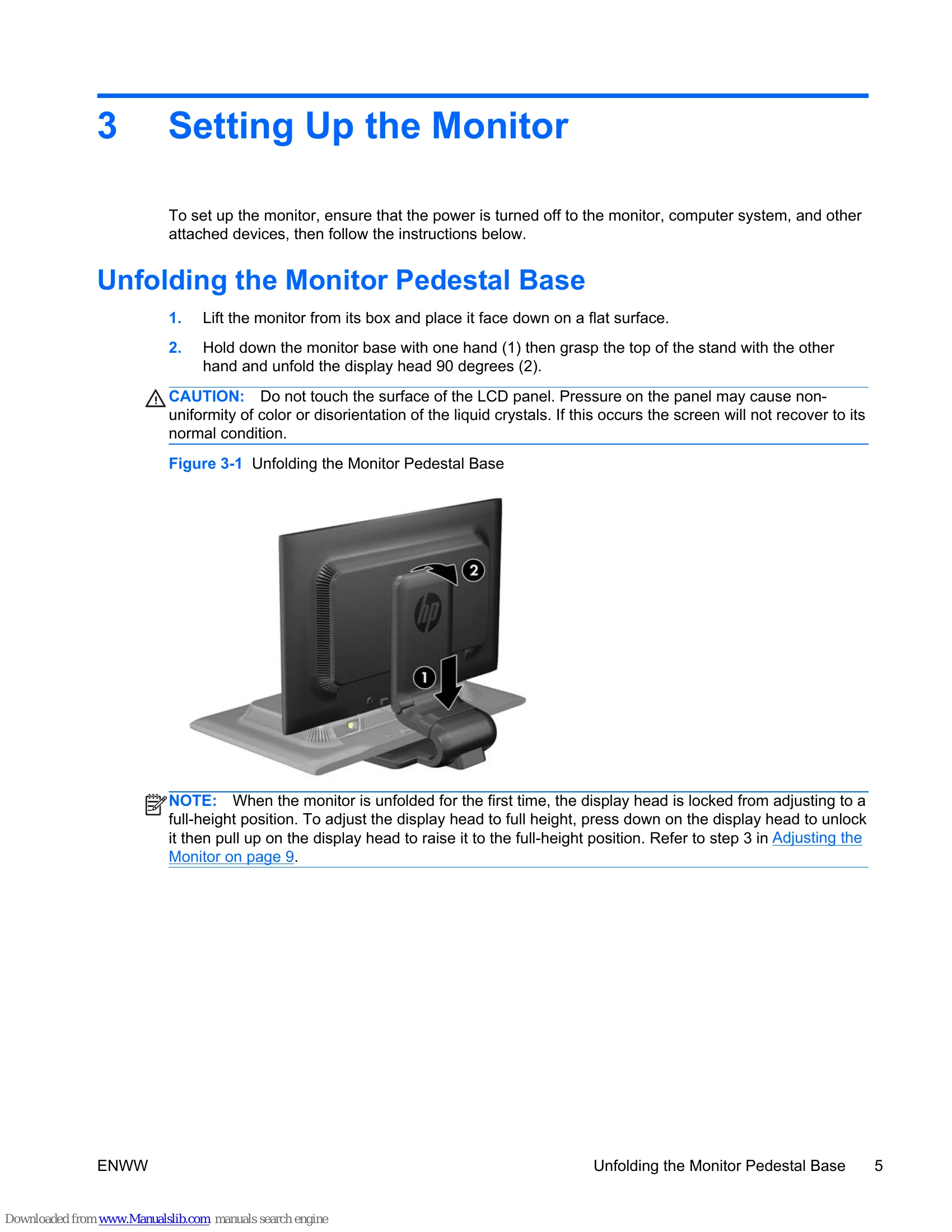

To set up the monitor, ensure power is off to the monitor, computer, and other devices. Unfold the monitor pedestal base by lifting the monitor and placing it face down, then unfolding the display head. Connect signal and power cables to the monitor and computer. Connect USB devices if necessary. Adjust the monitor's tilt, swivel, and height for comfortable viewing. Pivot the monitor from landscape to portrait mode if needed. Turn on the computer, then the monitor. The monitor will automatically scan for active input signals.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| No image displayed | Monitor is off. | Press the monitor power button. |
| No image displayed | Computer is off. | Press the computer power button. |
| No image displayed | Signal cable is not connected properly. | Ensure the signal cable is securely connected to both the monitor and the computer. |
| No image displayed | Wrong input source selected. | Press the +/Source button on the front panel or use the OSD to select the correct input source. |
| Image is dim or too bright | Brightness or contrast settings are incorrect. | Adjust the brightness and contrast settings using the OSD. |
| Image has color distortion | Signal cable is damaged or not properly connected. | Try a different signal cable or ensure it is securely connected. |
| Image is fuzzy or has artifacts | Monitor resolution or refresh rate is not supported. | Set the monitor resolution and refresh rate to a supported setting for your computer. |
