Brand: HP
Category: Digital Camera
Document Type: Manual
Language: EN
Manual for m500
Uploaded: Nov. 21, 2025, 8:07 p.m.
Warranty Information
The manufacturer reserves the right to change technical specifications or accessories without prior notice.

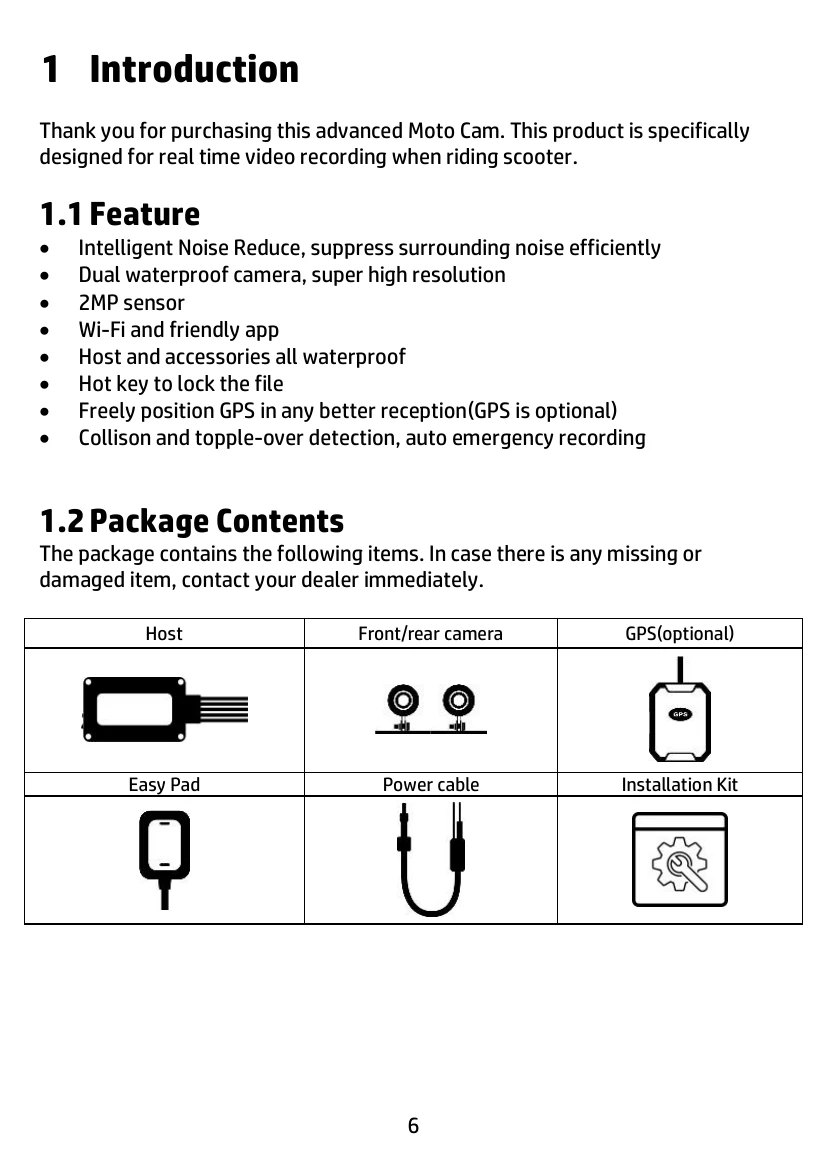

1. **Introduction:** This document introduces the Moto Cam m500, a device designed for real-time video recording while riding a scooter. It details features like intelligent noise reduction, dual waterproof cameras, 2MP sensor, Wi-Fi connectivity, and collision detection.
2. **Getting Started:** Instructions are provided for inserting and removing a memory card, emphasizing the need for a speed V30 or higher microSD card and formatting it using the Go Moto Plus app.
3. **Installation:** This section guides users through connecting the host and accessories (power cable, cameras, GPS, easy pad) based on connector colors. It also details optimal installation positions for each component on a scooter and provides instructions for installing the front camera on a rear-view mirror.
4. **Settings:** Users are instructed to download and install the 'Go Moto Plus' app, connect to the camcorder via Wi-Fi, and explore app features like live preview, recording, snapshot, playback, and camera settings (time zone, speed cam alert, voice record, etc.).
5. **SuperCar 2.0:** Information on downloading and using the SuperCar 2.0 software for video/GPS playback on Windows is provided.
6. **Specifications:** This section lists the technical specifications of the Moto Cam m500, including image sensor details, effective pixels, storage media, lens specifications, video file formats, G-sensor, operating temperature, dimensions, and weight.
Troubleshooting and error codes
| Menu Option | Description | Available options |
|---|---|---|
| *Set Time Zone | To set up time zone in order to auto sync date/time once GPS is positioned. *Optional GPS needs to be installed to activate this function. |
GMT -12 ~ GMT +12 |
| *Speed Cam Alert | When this function is enabled and GPS is positioned, once your scooter is approaching speed cam, the LED on Easy Pad will flash quickly. *Optional GPS needs to be installed to activate this function. *If there is no speed cam map datum built-in, the LED will not flash quickly. |
On / Off |
| Voice Record | Setting voice record in the video. | On / Off |
| Record Interval | Save respective video files in a length of the selected duration. | 1 min / 3 min / 5 min |
| Intelligent Noise Reduce | If turn on this feature, it can suppress surrounding noises and deliver human voice more clear. | On / Off |
| Tilt Sensor | When the host is installed completely, please use this function to calibrate topple-over detection. | OK / Cancel |
| Emergency Recording | Enable/Disable emergency recording function. *The emergency recording folder is occupied 20% of memory card. Even it turns off, this capacity is still occupied. *Set up "Off" will turn off auto emergency, but the user still can hit the Easy Pad button to activate emergency recording manually. |
On / Off |
| Format | To format the memory card, all the files in the camcorder will be deleted. | Yes / Cancel |
| *Speed Unit | Set up speed unit. *Optional GPS needs to be installed to activate this function. |
Km/h, mph |
| *Car Speed Watermark | To turn on or off car speed watermark. *Optional GPS needs to be installed to activate this function. |
On / Off |
| Anti-flicker | Domestic power supply varies by area. It is recommended that you should check the "Table of voltage and frequency of different countries" for the correct setting. | 50Hz / 60Hz |
| Wi-Fi Setting | To set up Wi-Fi password | Yes / Cancel |
| Default | Return to factory default setting. | |
| Firmware Version | Indicates the current camcorder's firmware version. |
