Overview
This document provides information on HP Network Adapters, including supported adapters and operating systems, installation procedures, firmware upgrades, adapter configurations, teaming, VLAN properties, ProLiant Essentials, diagnostics, and technical support.
Supported Adapters and Operating Systems
Lists various HP Fast Ethernet and Gigabit Server Adapters and their compatibility with Microsoft Windows Server, NetWare, Linux, UNIX, and Solaris.

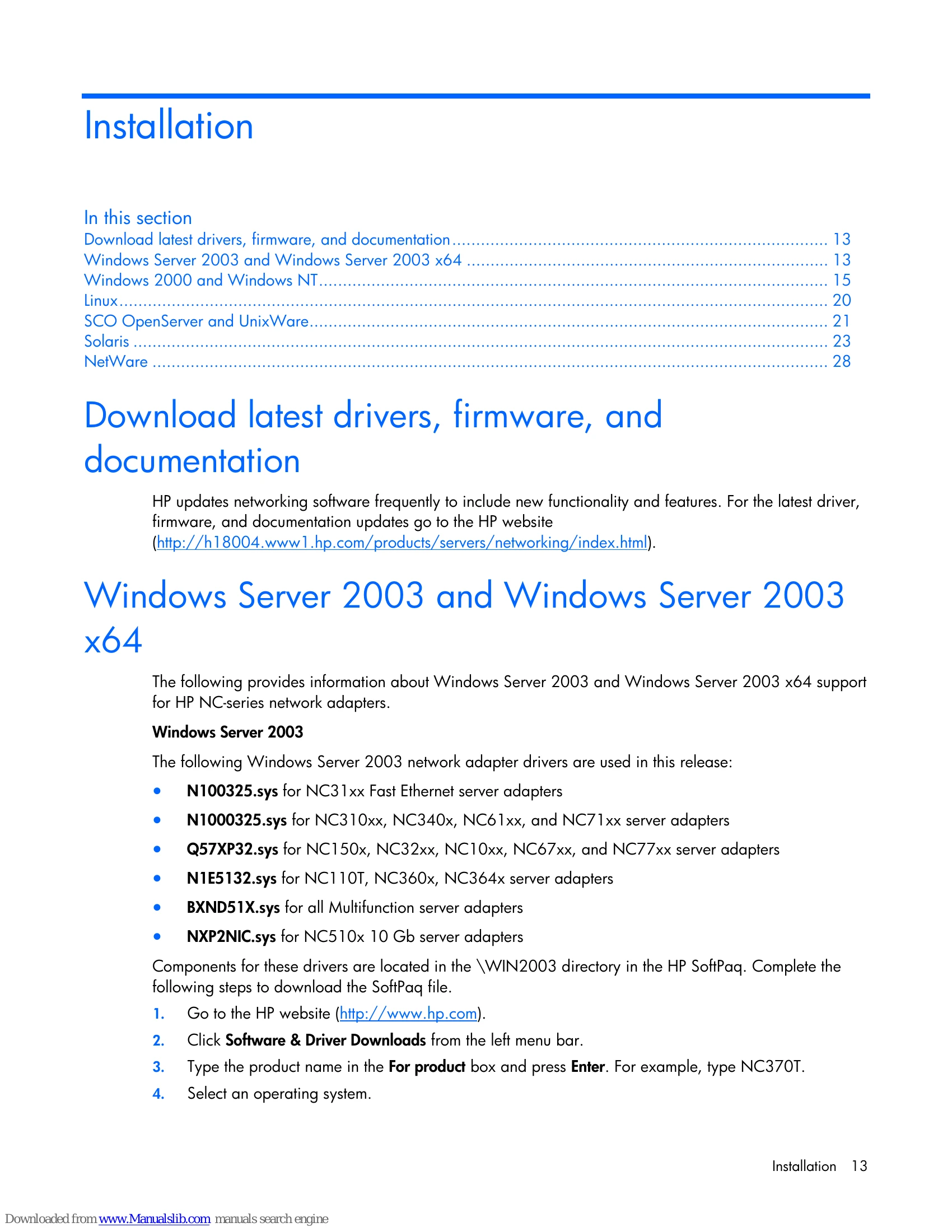

Installation
Details on downloading the latest drivers, firmware, and documentation from the HP website. Includes specific instructions for Windows Server 2003/x64, Windows 2000/NT, Linux, SCO OpenServer/UnixWare, and Solaris.
Firmware Upgrade Utility
Describes the utility for upgrading adapter firmware across different operating systems.
Adapter Configurations
Covers configuration options for HP NC-series Broadcom and Intel adapters, including settings for speed, duplex, PXE, and iSCSI boot.
Team Properties
Explains adapter teaming and VLAN properties for enhanced network performance and management.
Diagnostics
Provides information on diagnostic tests for HP NC-Series adapters to identify hardware or connection issues.
Technical Support
Offers guidance on contacting HP support, including required information and available resources.
Troubleshooting and error codes
| Error Code | Description |
|---|---|
| 1 | Got 0x%08x @ 0x%08x. Expected 0x%08x |
| 2 | Cannot run test while chip is running |
| 3 | Invalid adapter device |
| 4 | Read only bit %s got changed after writing zero at offset 0x%X |
| 5 | Read only bit %s got changed after writing 1's at offset 0x%X |
| 6 | Read/Write bit %s did not get cleared after writing zero at offset 0x%X |
| 7 | Read/Write bit %s did not get set after writing 1's at offset 0x%X |
| 8 | BIST failed. |
| 9 | Could not generate interrupt |
| 10 | Test aborted by user |
| 11 | Tx DMA:Got 0x%08x @ 0x%08x. Expected 0x%08x |
| 12 | Rx DMA:Got 0x%08x @ 0x%08x. Expected 0x%08x |
| 13 | Tx DMA failed |
| 14 | Rx DMA failed |
| 15 | Data error, got 0x%08X at 0x%08X, expected 0x%08X |
| 16 | Second read error, got 0x%08X at 0x%08X, expected 0x%08X |
| 17 | Failed writing EEPROM at 0x%04X |
| 18 | Failed reading EEPROM at 0x%04X |
| 19 | EEPROM data error, got 0x08X at 0x04X, expected 0x%08X |
| 20 | Cannot open file %s |
| 21 | Invalid CPU image file %s |
| 22 | Invalid CPU image size %d |
| 23 | Cannot allocate memory |
| 24 | Cannot reset CPU |
| 25 | Cannot release CPU |
| 26 | CPU test failed |
| 27 | Invalid Test Address Range |
| Valid adapter address is 0x%08x-0x%08x and exclude 0x%08x-0x%08x | |
| 28 | DMA:Got 0x%08x @ 0x%08x. Expected 0x%08x |
| 29 | Unsupported Phyld %04X:%04X |
| 30 | Too many registers specified in the file, max is %d |
| 31 | Cannot write to VPD memory |
| 32 | VPD data error, got %08X @ 0x04X, expected %08X |
| 33 | No good link! Check Loopback plug |
| 34 | Cannot TX Packet! |
| 35 | Requested to Tx %d. Only %d is transmitted |
| 36 | Expected %d packets. Only %d good packets are received |
| %d unknown packets have been received | |
| %d bad packets have been received | |
| 37 | %c%d is an invalid Test |
| 38 | EEPROM checksum error |
| 39 | Error in reading WOL/PXE |
| 40 | Error in writing WOL/PXE |
| 41 | No external memory detected |
| 42 | DMA buffer %04X is large, size must be less than %04X |
| 43 | File size %d is too big, max is %d |
| 44 | Invalid %s |
| 45 | Failed writing 0x%x to 0x%x |
| 46 | *1 |
| 47 | *1 |
| 48 | *1 |
| 49 | *1 |
| 50 | Cannot perform task while chip is not running. (need driver) |
| 51 | Cannot open register define file or content is bad |
| 52 | ASF Reset bit did not self-cleared |
| 53 | ATTN_LOC %d cannot be mapped to %cX CPU event bit %d |
| 54 | %s Register is not cleared to zero after reset |
| 55 | Cannot start Register Timer |
| 56 | poll_ASF bit did not get reset after acknowledged |
| 57 | Timestamp Counter is not counting |
| 58 | %s Timer is not working |
| 59 | Cannot clear bit %s in %cX CPU event register |
| 60 | Invalid "EEPROM_FILENAME" file size, expected %d but only can read %d bytes |
| 61 | Invalid magic value in %s, expected %08x but found %08x |
| 62 | Invalid manufacture revision, expected %c but found %c |
| 63 | Invalid Boot Code revision, expected %d.%d but found %d.%d |
| 64 | Cannot write to EEPROM |
| 65 | Cannot read from EEPROM |
| 66 | Invalid Checksum |
| 67 | Invalid Magic Value |
| 68 | Invalid MAC address, expected %02X-%02X-%02X-%02X-%02X-%02X |
| 69 | Slot error, expected an UUT to be found at location %02X:%02X:00 |
| 70 | Adjacent memory has been corrupted while testing block 0x%08x-0x%08x |
| Got 0x%08x @ address 0x%08x. Expected 0x%08x | |
| *1 Internal Use. Program will not generate this error. |
