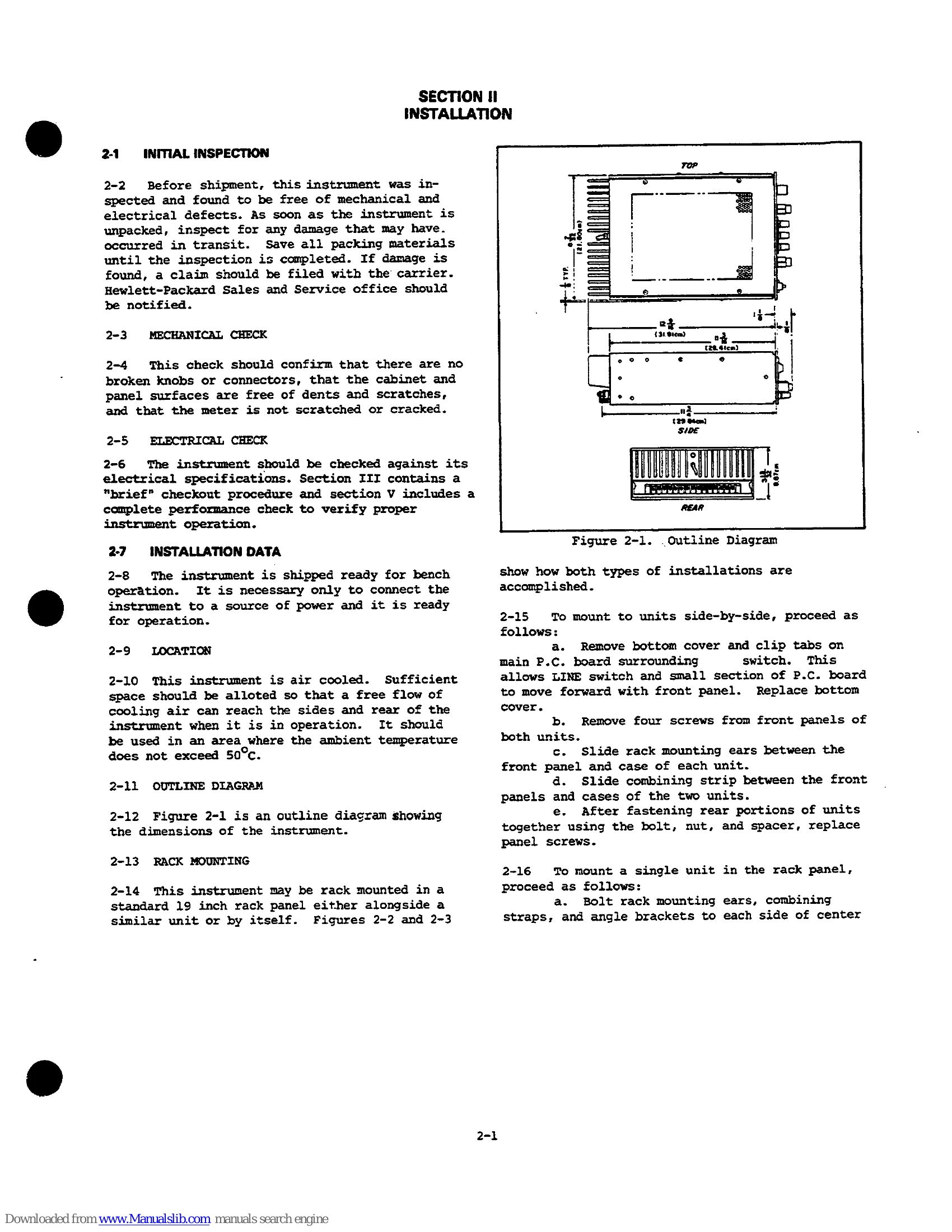

Manual for 6205C
Uploaded: Nov. 21, 2025, 8:29 p.m.
Warranty Information
HP hardware products are warranted against defects in material and workmanship for one year from the date of delivery.
The HP Model 6205C Dual DC Power Supply is a transistorized unit suitable for bench or rack operations, featuring two independently controlled dual-range sections. Each section can provide 0-40V at 0.3A or 0-20V at 0.6A, with selectable voltage and current ranges controlled by front panel knobs and buttons. It supports various operating modes, including normal operation, remote programming, remote sensing, series, auto-series, parallel, auto-parallel, and auto-tracking configurations. The unit is protected by a fixed current limiting circuit.
Troubleshooting and error codes
| Page | Section | Description |
|---|---|---|
| 5-7 | 5-48 Troubleshooting | Overall Troubleshooting Procedure |
