Brand: HP
Category: Power Supply
Document Type: Manual
Language: EN

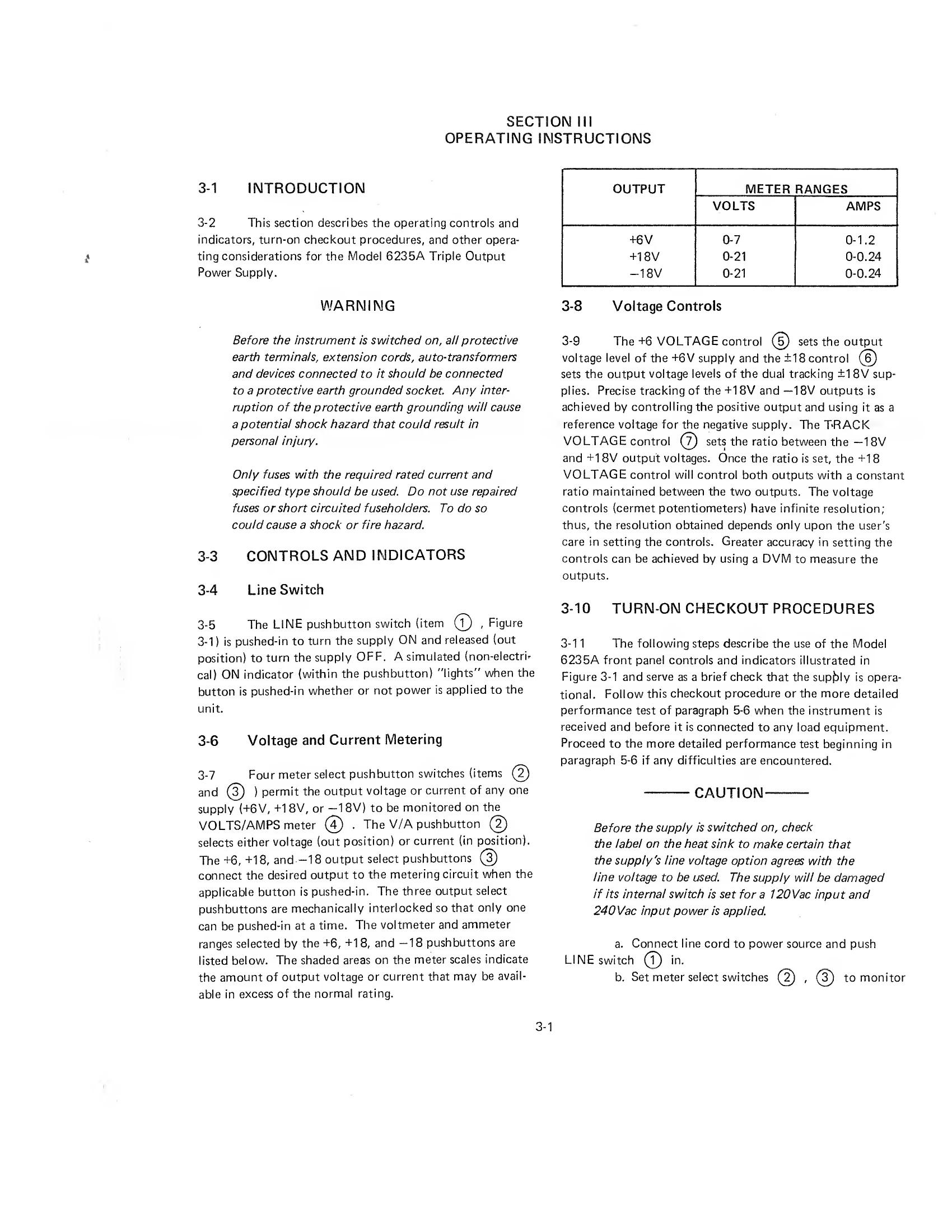

Manual for 6235A
Uploaded: Nov. 21, 2025, 9:10 p.m.
Manual Publish Date: 1978-01-01
Warranty Information
Warranted against defects for one year from date of shipment.
The Model 6235A is a triple output power supply featuring two 0 to ±18V tracking outputs at 0.2A and one 0 to +6V output at 1A. Outputs can be used independently or combined. It offers constant voltage/current limiting for each output and is protected against overload/short-circuit damage. Controls include line switch, voltage/current metering, and individual output select buttons. The supply can be operated individually or in parallel.
Troubleshooting and error codes
| Subject | Reference |
|---|---|
| Troubleshooting Procedure | Paragraph 5-35 |
| Open Fuse Troubleshooting | Paragraph 5-38 |
| Current Limit Calibration | Paragraph 5-47 |
| Meter Calibration | Paragraph 5-50 |
