Brand: HP
Category: Power Supply
Document Type: Manual
Language: EN

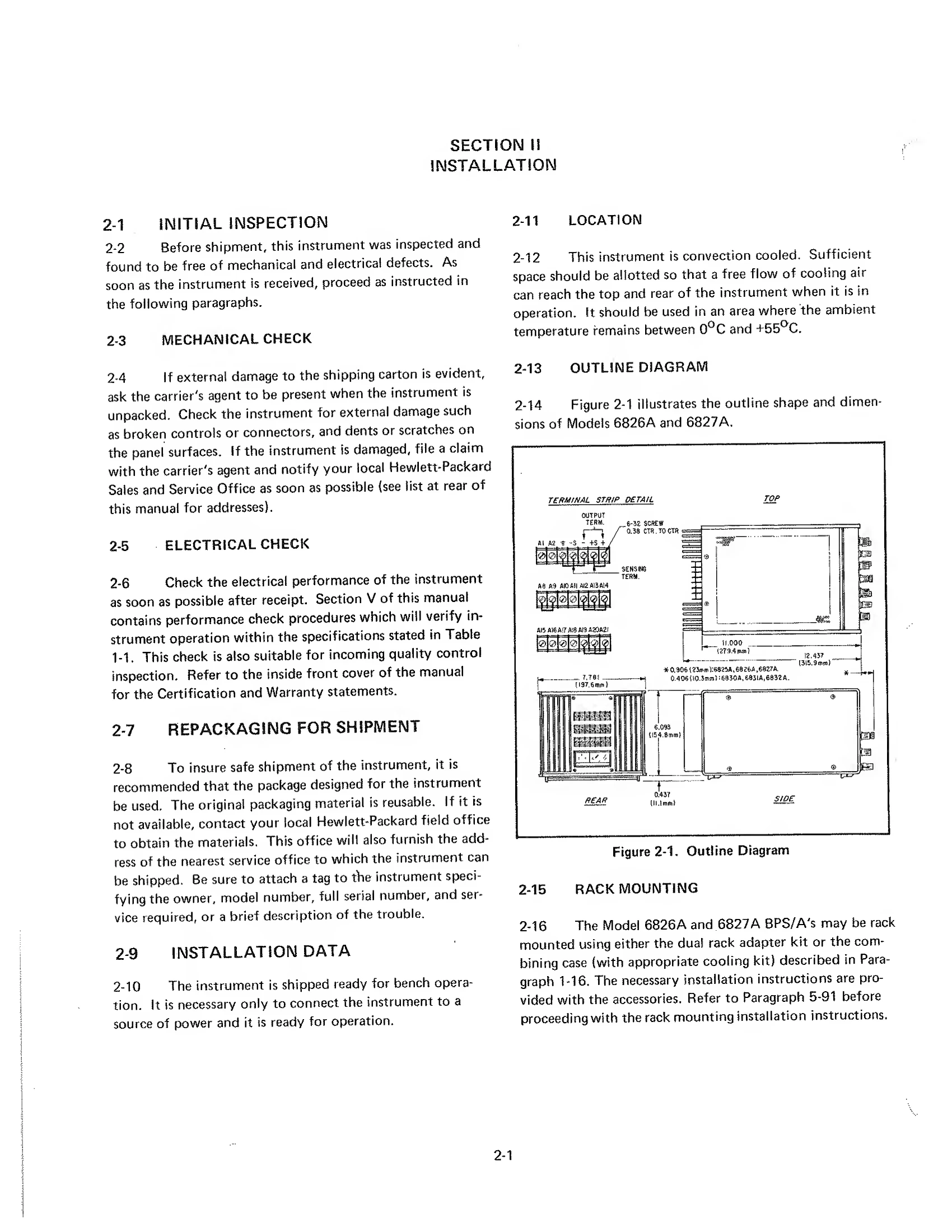

Manual for 6826A
Uploaded: Nov. 21, 2025, 6:15 p.m.
Manual Publish Date: 1974-11-01
Warranty Information
Please refer to the inside front cover of the manual for Certification and Warranty statements.
Power Supply Mode:
- Provides a regulated bipolar DC output.
- Constant Voltage or Constant Current output.
- Continuously adjustable output from maximum positive to maximum negative, through zero.
- Automatic crossover between constant voltage and constant current modes.
- Dual output voltage ranges (X1 and X10) for better resolution.
- Can sink up to 50% of the rated output current.
Amplifier Modes:
- Variable Gain Amplifier (Non-Inverting): Amplifies or attenuates AC or DC signals. Gain is variable from 0 to maximum, controlled locally or remotely. Frequency response: DC to 15kHz.
- Fixed Gain Amplifier (Inverting): Amplifies AC signals (up to 40kHz for 6826A, 30kHz for 6827A) or DC levels. Fixed gain options are provided (e.g., 1X, 10X).
General Features:
- Front panel meters monitor AC or DC output voltage and current.
- Remote programming capabilities for voltage and current.
- Series and parallel connections for increased output capability.
