Installation Guide for FusionModule2000
Uploaded: Nov. 21, 2025, 8:38 p.m.
Manual Publish Date: 2017-06-30
Warranty Information
No warranty information found in the provided document excerpt.

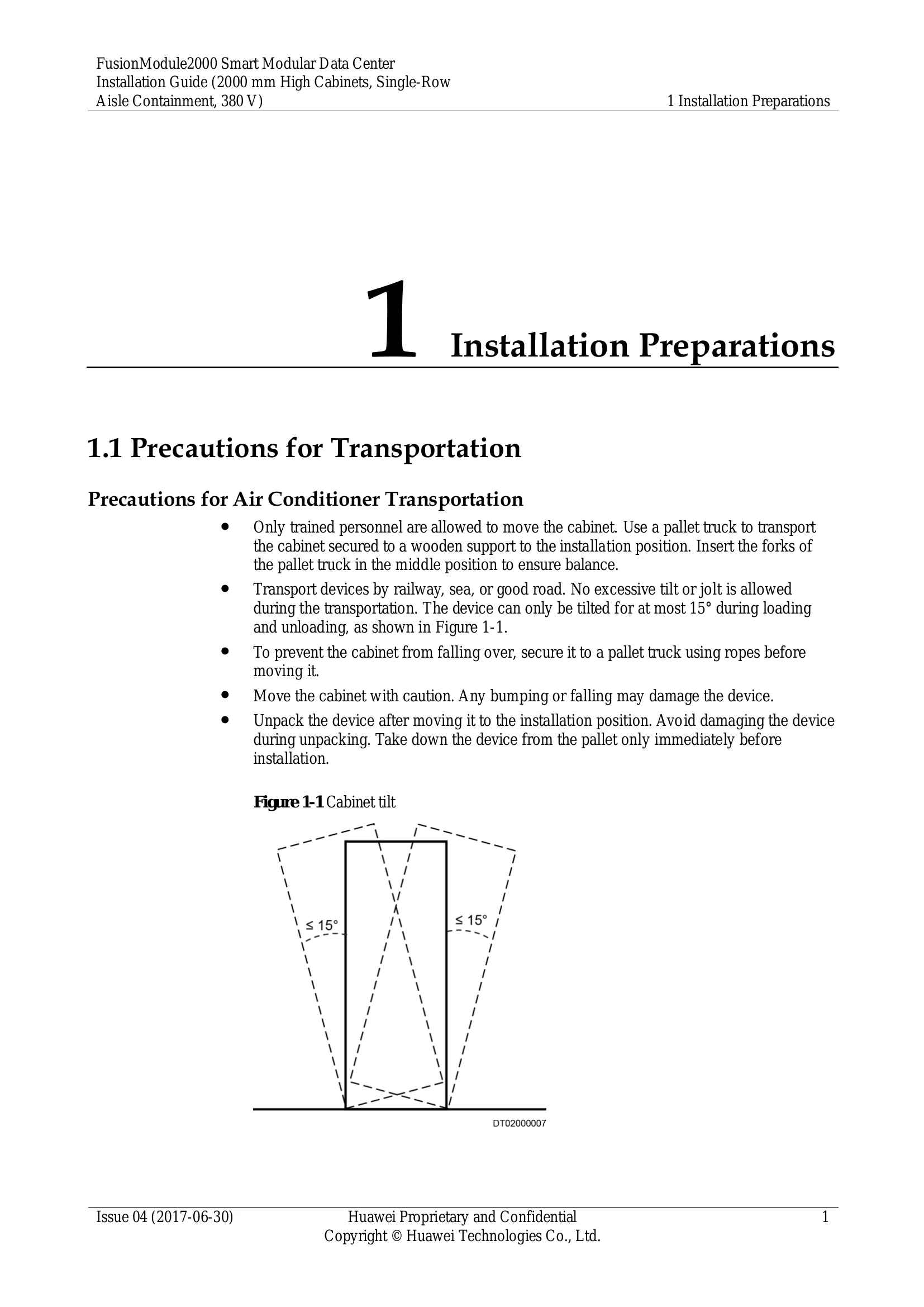

This document provides instructions for the installation of the FusionModule2000 Smart Modular Data Center, specifically for 2000 mm high cabinets in a single-row aisle containment scenario with a 380 V power supply. It covers essential preparation steps such as transportation precautions, unpacking, installation environment requirements, and required tools. The guide details hardware installation procedures for air conditioners and cabinets, followed by the installation of contained aisles and monitoring devices. Finally, it outlines cable routing, installation verification, and power-on commissioning procedures.
Troubleshooting and error codes
| No. | Check Item | Check Result |
|---|---|---|
| Cabinet Installation Checklist | ||
| 1 | The cabinets are placed according to the equipment room layout diagram. | □ Compliant □ Incompliant |
| 2 | The height deviation of all cabinets and the depth deviation of adjacent cabinets are less than 5 mm. | □ Compliant □ Incompliant |
| 3 | All bolts are tightened, especially the bolts used for electric connection. Flat washers and spring washers are installed properly. | □ Compliant □ Incompliant |
| 4 | The cabinet is clean and complies with dustproof requirements. | □ Compliant □ Incompliant |
| 5 | The paint on the cabinet exterior is intact. If paint flakes off, repaint that area to avoid corrosion. | □ Compliant □ Incompliant |
| 6 | The cabinet door and lock work properly. | □ Compliant □ Incompliant |
| 7 | All labels are correct, clear, and complete. | □ Compliant □ Incompliant |
| 8 | There is no foreign matter such as adhesive tape, cable ties, paper, or packing materials left around the cabinet. | □ Compliant □ Incompliant |
| 9 | The cabinet filler panels are in proper positions so that the cold aisle and hot aisle are isolated. | □ Compliant □ Incompliant |
| Aisle Containment Checklist | ||
| No. | Check Item | Check Result |
| 1 | All components of the aisle containment are installed. | □ Compliant □ Incompliant |
| 2 | The end doors can be opened and closed smoothly. | □ Compliant □ Incompliant |
| 3 | The gap between end doors is even. | □ Compliant □ Incompliant |
| 4 | After the end door is closed, the rubber strip in the middle seals the gap properly. | □ Compliant □ Incompliant |
| 5 | After the double revolving door is closed, the height deviation of the two door panels is less than 5 mm. | □ Compliant □ Incompliant |
| 6 | The rotating skylights work smoothly. | □ Compliant □ Incompliant |
| 7 | The end planes of skylight connective plates are flush with each other. | □ Compliant □ Incompliant |
| 8 | The skylight electromagnet firmly suctions the skylight when the power is on, and the skylight drops naturally when the power is off. | □ Compliant □ Incompliant |
| 9 | All labels are correct, clear, and complete. | □ Compliant □ Incompliant |
| 10 | There is no foreign matter such as adhesive tape, cable ties, paper, or packing materials left in and around the aisle. | □ Compliant □ Incompliant |
| Cable Installation Checklist | ||
| No. | Check Item | Check Result |
| 1 | All cable joints are secured properly, especially the cable joints between network cables and cables inside cabinets. | □ Compliant □ Incompliant |
| 2 | Exposed parts near the wiring terminals and lugs are wrapped with PVC insulation tape or heat shrinking tubing. | □ Compliant □ Incompliant |
| 3 | All wiring terminals are securely installed with flat washers and spring washers and are in good contact. | □ Compliant □ Incompliant |
| 4 | Cables are bound neatly, and cable ties are secured evenly and properly in the same direction. | □ Compliant □ Incompliant |
| 5 | Cables are routed in a way convenient for maintenance and capacity expansion. | □ Compliant □ Incompliant |
| 6 | All labels at the cable ends are clear. | □ Compliant □ Incompliant |
| 7 | Excess sections of cable ties are neatly cut. | □ Compliant □ Incompliant |
| 8 | There is no unnecessary adhesive tape or cable tie on cables. | □ Compliant □ Incompliant |
| Electric Installation Checklist | ||
| No. | Check Item | Check Result |
| 1 | All ground cables are copper cables with diameters meeting the requirements. No switch or fuse is installed at the middle of a ground cable, and no short-circuit occurs. | □ Compliant □ Incompliant |
| 2 | Ground cables, AC input power cables, and internal cables are connected in accordance with the circuit diagram and screws are secured. No short-circuit occurs on power inputs or outputs. | □ Compliant □ Incompliant |
| 3 | Power cables and ground cables are not coiled and extra parts are cut off. | □ Compliant □ Incompliant |
| 4 | Lugs for power cables and protective ground cables are soldered or crimped securely. | □ Compliant □ Incompliant |
| 5 | Power cables and ground cables are routed and bundled separately from other cables. | □ Compliant □ Incompliant |
| 6 | Batteries are free from damage, cracks, and bulges. | □ Compliant □ Incompliant |
| 7 | Batteries are neat and do not leak electrolyte. | □ Compliant □ Incompliant |
| 8 | Wiring terminals of batteries are free from damage, break, and acid leakage. | □ Compliant □ Incompliant |
| 9 | Battery safety valves are intact, without leakages. | □ Compliant □ Incompliant |
| 10 | Battery cables are correctly connected, and the terminal voltages of battery strings are normal. | □ Compliant □ Incompliant |
| 11 | DIP switches on devices are correctly set. | □ Compliant □ Incompliant |
