Installation Guide for NetEngine 8000 M14
Uploaded: Nov. 21, 2025, 6:54 p.m.

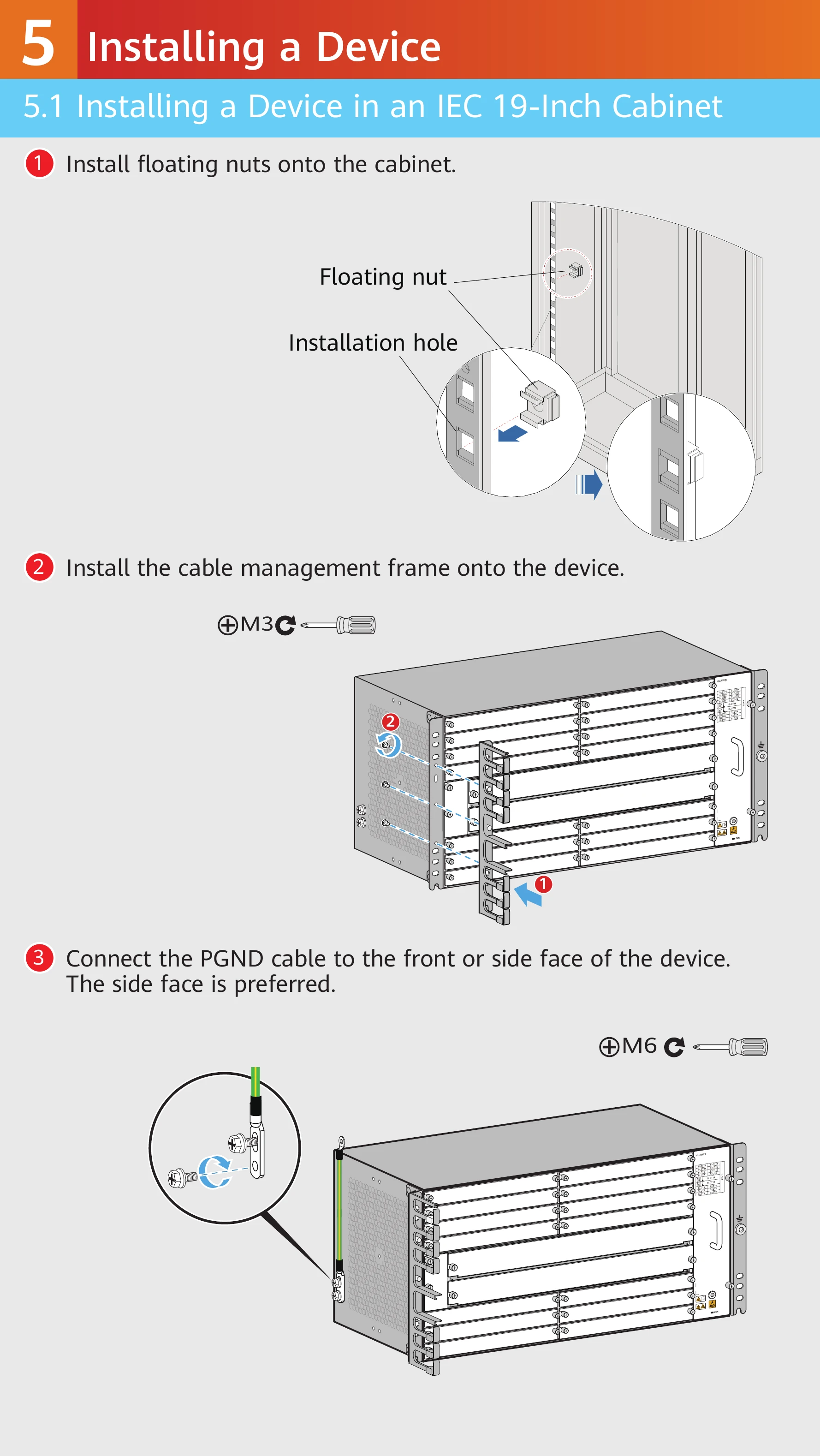

This document provides a quick installation guide for the Huawei NetEngine 8000 M14, PTN 6900-2-M14, and NE40E-X2-M14 devices. It covers device overview, safety guidelines, site requirements, cabinet requirements, installation steps for the device in various cabinets (IEC 19-inch, ETSI 21-inch with front columns, and ETSI 21-inch with middle columns), installing components like boards and optical modules, connecting various cables (PGND, DC power, AC power, E1, optical fibers, Ethernet, coaxial), and checking the installation before and after power-on. It also includes information on obtaining product documentation and technical support.
Troubleshooting and error codes
| Indicator | Abnormal State | Possible Cause | Handling Procedure |
|---|---|---|---|
| STAT | Steady red | Signals on an optical port are lost. | 1. Power on the peer chassis. 2. Check the peer board and ensure that the transmit optical power of the board is normal. 3. Check that fiber connections are correct. 4. If there is no fixed optical attenuator at the optical port, check the fiber attenuation, clean the fiber connector, and replace damaged fibers until the indicator turns green. |
| Steady off | The corresponding module cannot be detected. | If the chassis is powered on but all the indicators on the board are off, contact software commissioning engineers to replace the board. |
