Installation Guide for OceanStor 5300 V3 and 5500 V3
Uploaded: Nov. 21, 2025, 9:22 p.m.
Manual Publish Date: 2018-12-06

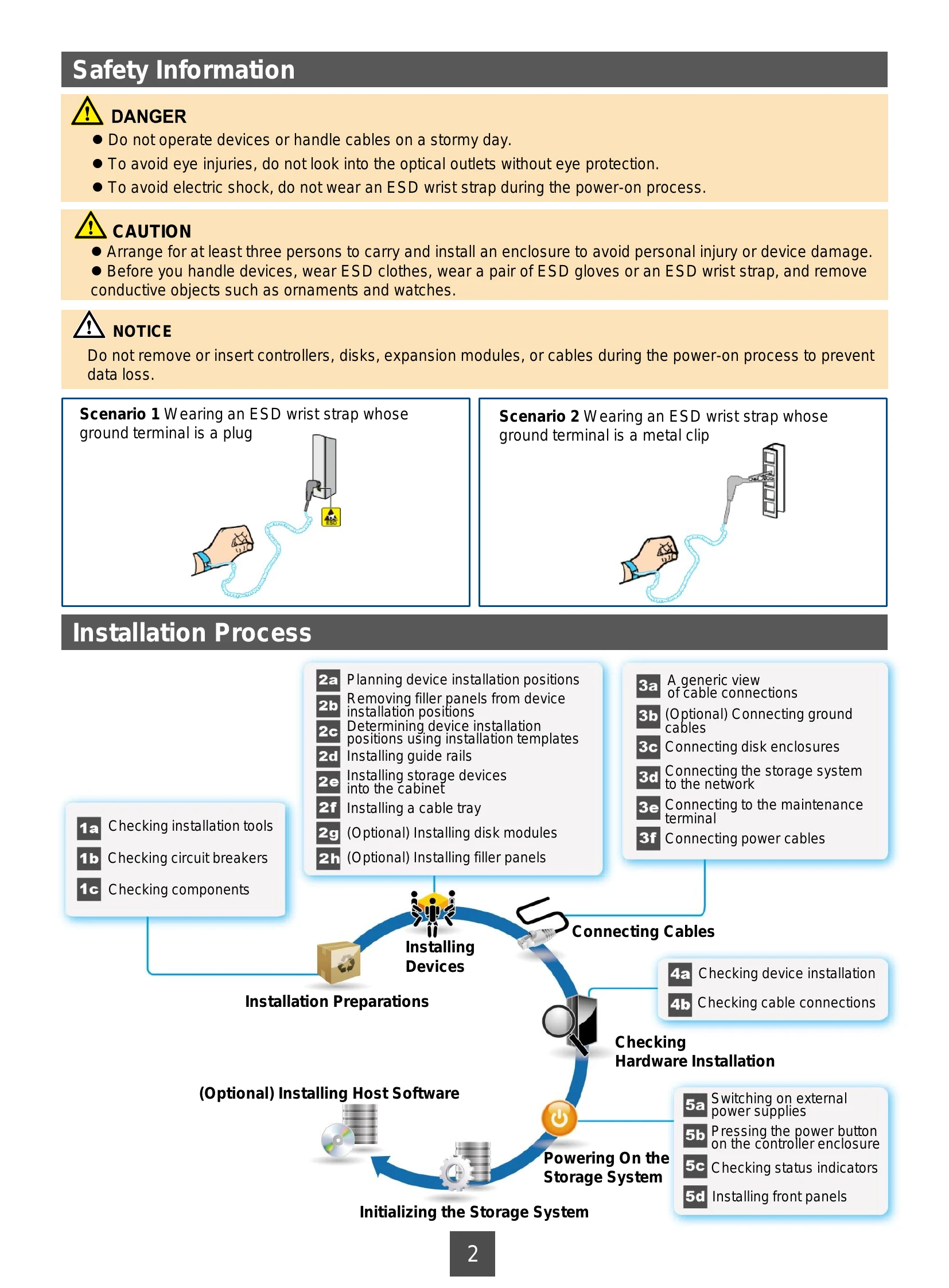

This guide details the quick installation of OceanStor 5300 V3 and 5500 V3 storage systems. It covers safety information, hardware installation including device mounting, guide rail installation, enclosure connections, cable connections (ground, disk, network, power, maintenance terminal), powering on the system, and initial system configuration. Optional host software installation is also mentioned.
Troubleshooting and error codes
| Check Item | Normal | Abnormal |
|---|---|---|
| Controller enclosure |
• The device sits stably on the guide rails without displacement.
• Screws are properly secured. |
• The device slants or cannot be detected.
• Screws are loose or have fallen off. |
| Disk enclosure |
• Screws are properly secured.
|
• Screws are loose or have fallen off.
|
| Ground cable, optical fiber cable, mini SAS HD electrical cable/optical cable, network cable, and serial cable |
The cable is fully inserted and secured.
|
The cable is loose or disconnected.
|
| AC power cable |
• The AC power cables for each controller enclosure or disk enclosure are connected to two separate power supplies for redundancy.
• The AC power cables are secured with plastic buckles. |
• The AC power cables for each controller enclosure or disk enclosure are connected to the same power supply.
• The AC power cables are not secured with plastic buckles. |
| DC power cable |
The OT terminal of the black cable connects to the RTN (+) terminal and the OT terminal of the blue cable connects to the NEG (-) terminal.
|
The OT terminal of the blue cable connects to the RTN (+) terminal and the OT terminal of the black cable connects to the NEG (-) terminal.
|
