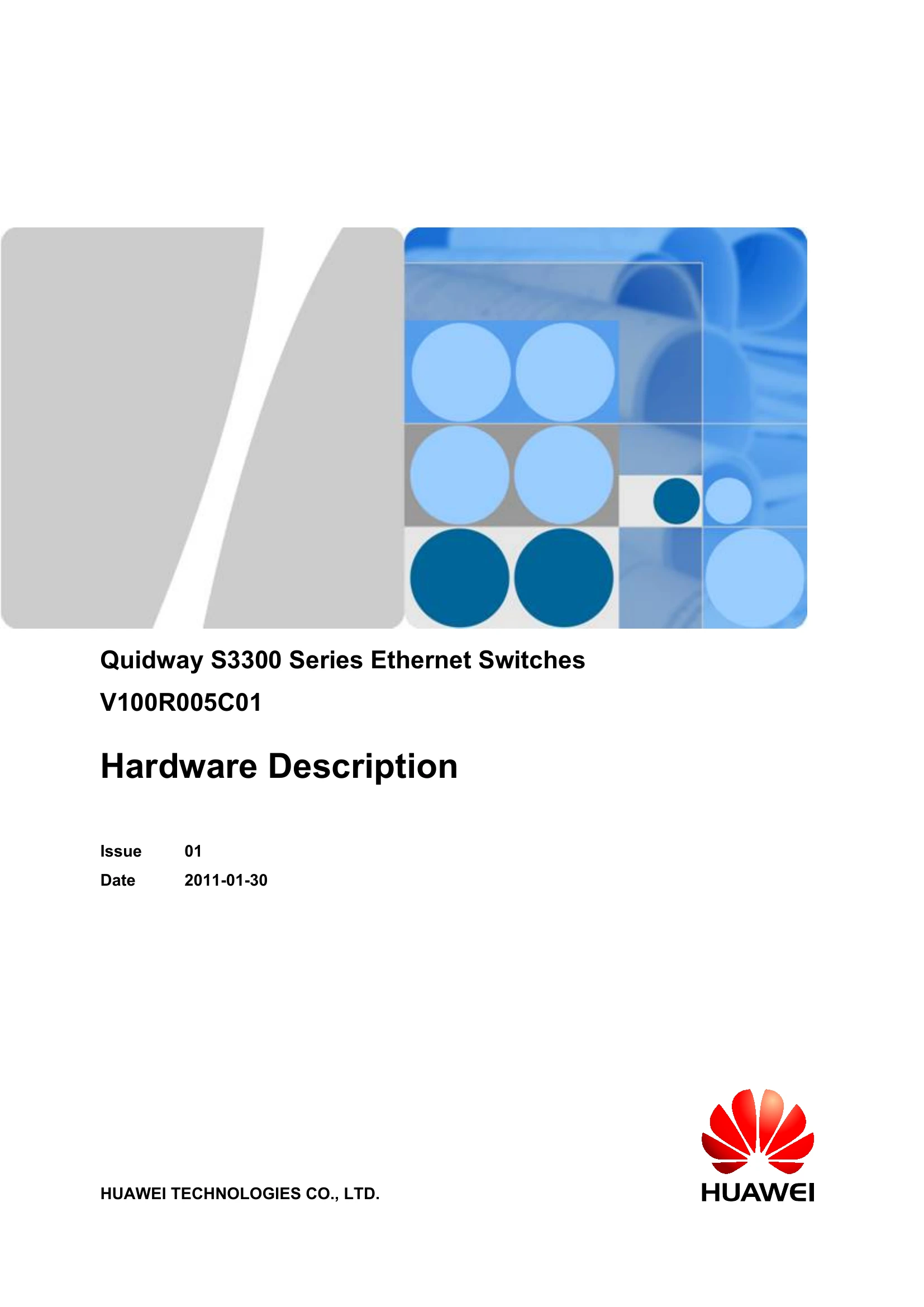

Manual for S3300 Series
Uploaded: Nov. 21, 2025, 7:11 p.m.
Manual Publish Date: 2011-01-30
This document provides an overall description of the S3300, detailing each chassis and board, cables available to the device, and lists of components. It describes hardware features, intended audience, and symbol conventions. Information on device models, structure, system configuration, physical specifications, and indicators is also provided. Optical modules supported by the S3300 are detailed in terms of their attributes.
Troubleshooting and error codes
| Display Mode | Status | Description |
|---|---|---|
| STAT | Off | The interface is not connected or has been shut down. |
| STAT | Green | The interface is connected. |
| STAT | Blinking green | The interface is sending or receiving data. |
| Speed | Off | The interface is not connected or has been shut down. |
| Speed | Green | The interface speed is 10/100 Mbit/s. |
| Speed | Blinking green | The interface speed is 1000 Mbit/s. |
| PoE | Off | The interface does not provide remote power. |
| PoE | Green | The interface is providing remote power. |
| PoE | Blinking green | The power of the powered device (PD) exceeds the power supply capability of the port or exceeds the threshold. |
| Stack | Off | The stack ID of the member switch is not the number of an interface in the off state. |
| Stack | Green | The device is a not a command switch: If the indicator of an interface is always on, the number of this interface is the stack ID of the device. If the first nine interface indicators of the device are always on, the stack ID of the device is 0. |
| Stack | Blinking green | The device is a command switch: If the indicator of an interface blinks, the number of this interface is the stack ID of the device. If the first nine interface indicators of the device blink, the stack ID of the device is 0. |
