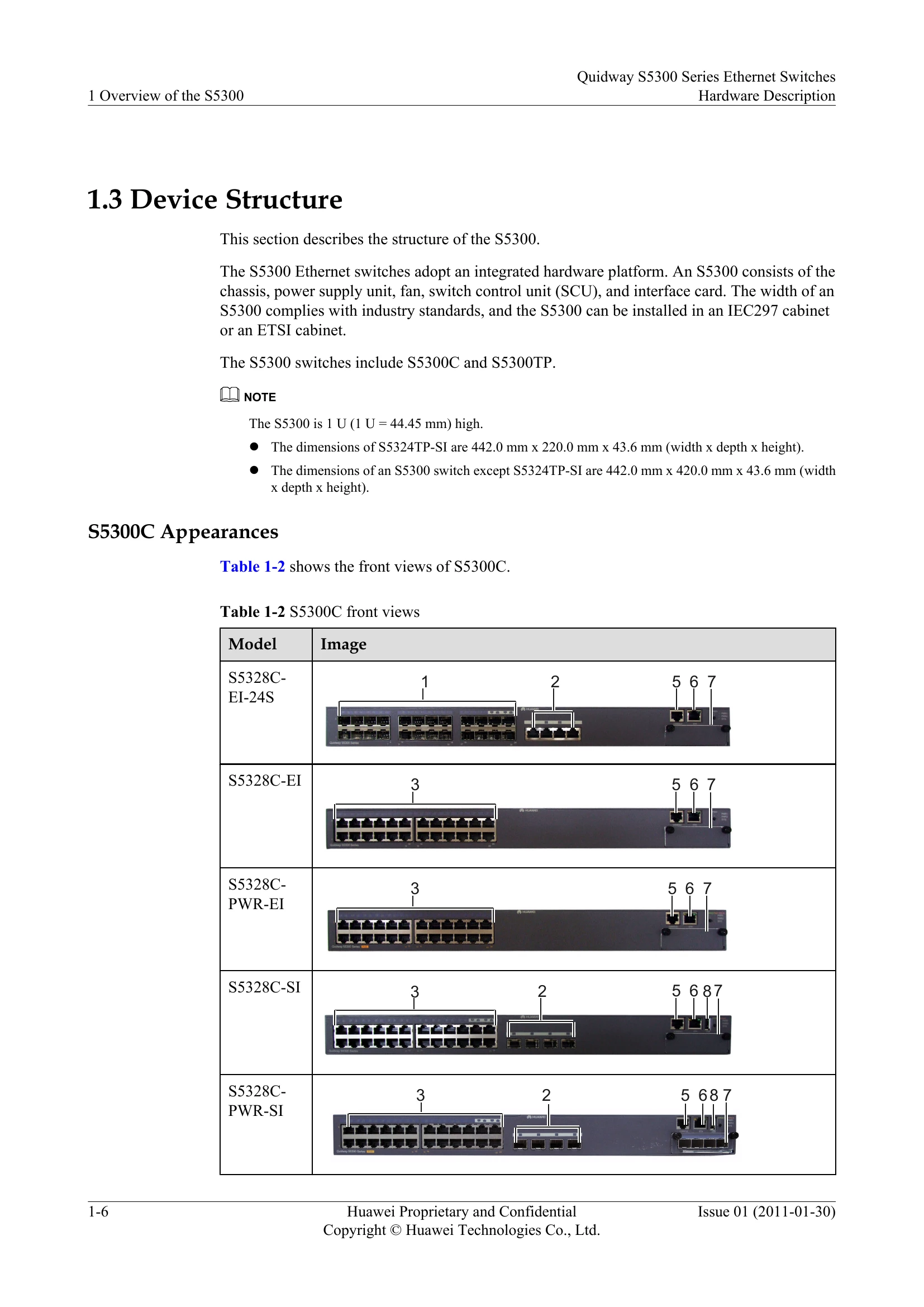

Manual for S5300 Series
Uploaded: Nov. 21, 2025, 7:07 p.m.
Manual Publish Date: 2011-01-30
The Quidway S5300 Ethernet switches are designed for Metropolitan Area Networks (MANs) to provide access and data transport functions. They support reliable access, aggregation, and high-quality transmission of multiple services. Key features include large capacity, high port density, cost-effective packet forwarding, multi-service access, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security. The switches also offer energy-saving designs with auto-adjusting fan speeds and interface chip power saving modes. They incorporate an advanced surge protection technique and provide convenient Power over Ethernet (PoE) supply for various devices.
Troubleshooting and error codes
| No. | Indicator | Identifier | Status | Description |
|---|---|---|---|---|
| 3 | System status indicator | SYS | Off | The system is not operating. |
| Green | The system is not operating properly or is starting. | |||
| Orange | The system is performing self-check during startup. | |||
| Blinking green | The system is operating properly. | |||
| Red | After registering, the system does not operate properly, or a power alarm, fan alarm, or temperature alarm is generated. | |||
| The service interface indicator is in the default mode (STAT). | ||||
| Green | The service interface indicator indicates the interface speed. After 45 seconds, the service interface indicator automatically restores to off. | |||
| Orange | The service interface indicator indicates the PoE status. After 45 seconds, the service interface indicator automatically restores to off. | |||
| Red | The service interface indicator indicates the stack ID. After 45 seconds, the service interface indicator automatically restores to off. | |||
| 4 | Mode indicator | - | Off | The service interface indicator is in the default mode (STAT). |
