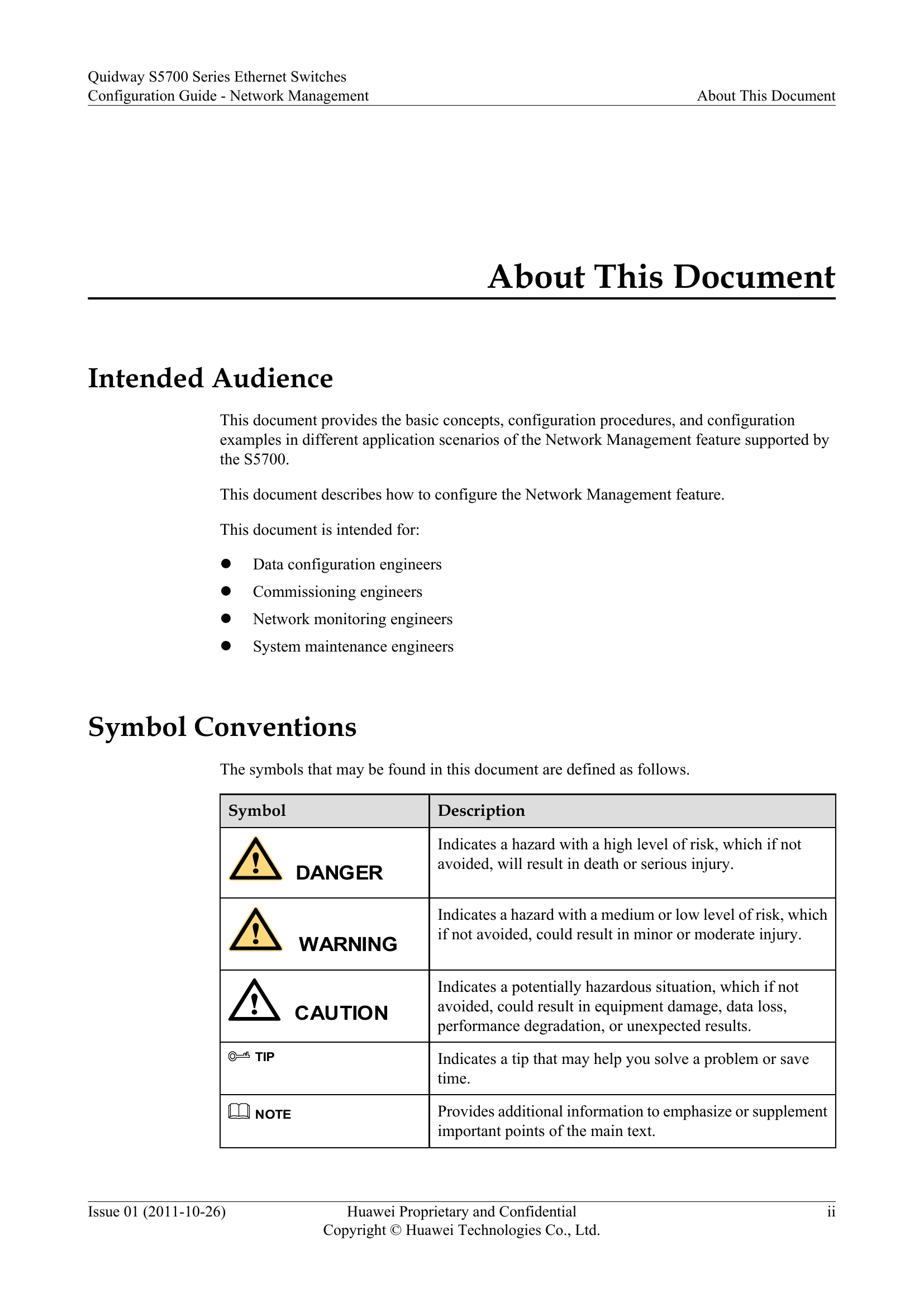

Manual for S5700
Uploaded: Nov. 21, 2025, 7:26 p.m.
Manual Publish Date: 2011-10-26
Warranty Information
Refer to the contract for warranty details; no specific period is mentioned in this document.
SNMP Configuration
This chapter details how to configure SNMP on HUAWEI S5700 series switches. It covers;
- Introduction to SNMP: Explains SNMP basics, components (NM station, agent, managed device), MIB, and operations (Get, Set).
- SNMPv1 Configuration: Guides on setting up SNMPv1 for communication between a managed device and an NM station, including basic functions, access control, and trap configuration.
- SNMPv2c and SNMPv3: Briefly mentions their configuration similar to SNMPv1.
- SNMP Features: Compares SNMP versions regarding features like access control, authentication, encryption, error codes, traps, informs, and GetBulk.
- Configuration Examples: Provides practical examples for different SNMP versions.
The document focuses on configuring the managed device (agent side) and assumes NM station configuration is covered in separate guides.
Troubleshooting and error codes
| Feature | Description |
|---|---|
| Access control | Restricts user's device administration rights to manage specified objects. |
| Authentication and encryption | Authenticates and encrypts packets to prevent interception or modification. |
| Error code | Identifies particular faults to help administrators locate and rectify them. |
| Trap | Sent from managed devices to the NM station to discover device faults immediately. No acknowledgment required. |
| Inform | Sent from managed devices to the NM station, requiring acknowledgment. Resends if no acknowledgment is received. |
| GetBulk | Allows batch Get-next operations, reducing administrator workload. |
