Manual for S6700 Series
Uploaded: Nov. 21, 2025, 6:34 p.m.
Manual Publish Date: 2012-03-15
Warranty Information
None

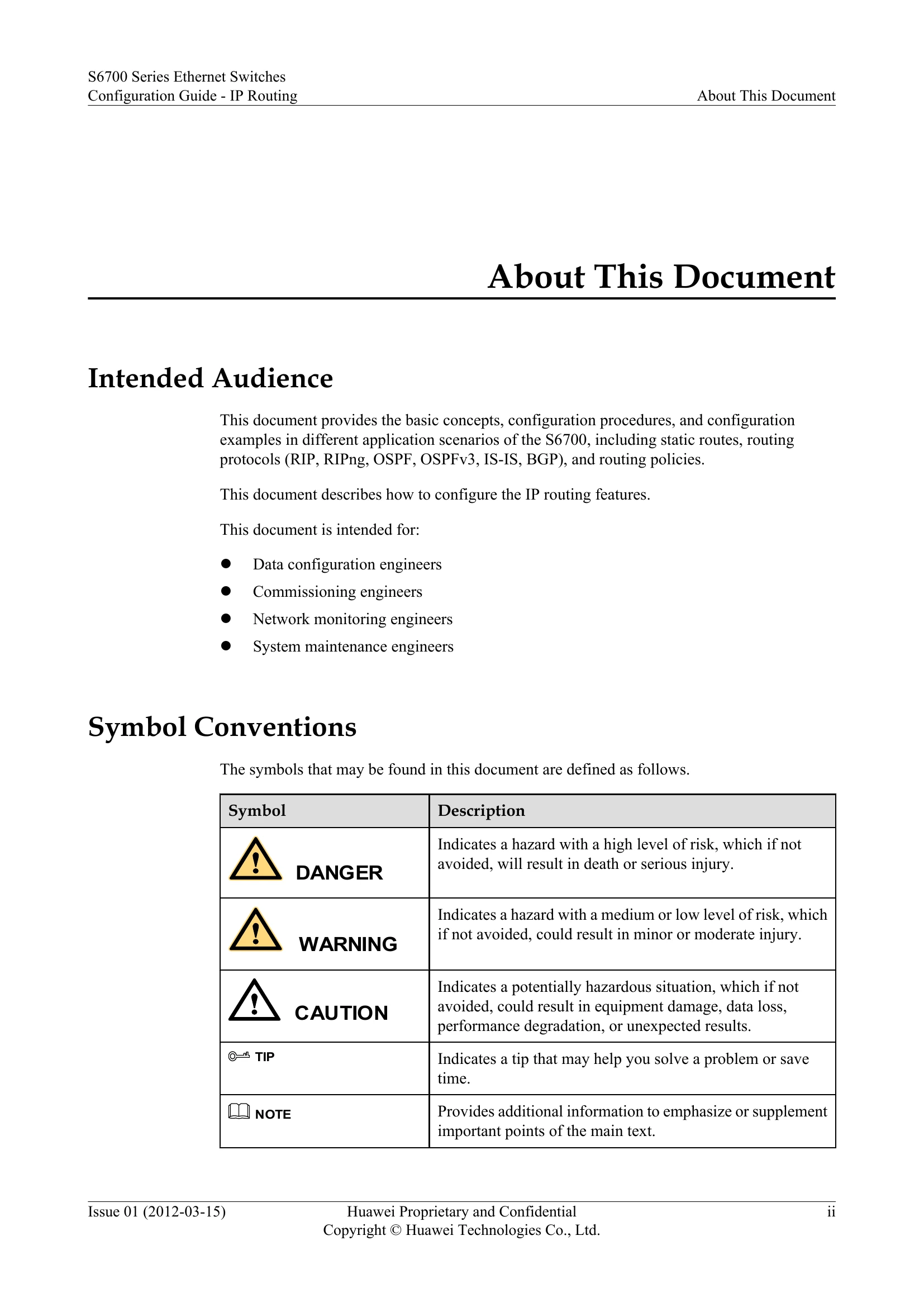

This document provides basic concepts, configuration procedures, and examples for IP routing on S6700 series Ethernet switches. It covers static routes, RIP, RIPng, OSPF, OSPFv3, IS-IS, BGP, BGP4+, MBGP, and MCE configurations.
The guide is intended for data configuration engineers, commissioning engineers, network monitoring engineers, and system maintenance engineers.
Key features include:
- Configuring static routes (IPv4 and IPv6) for precise control.
- Detailed guides for various routing protocols: RIP, RIPng, OSPF, OSPFv3, IS-IS, BGP, BGP4+, MBGP.
- Configuration of advanced features like BFD for static routes, route filtering, and VPN instances.
- MCE configuration for multi-VPN isolation and route multi-instance.
- Examples and troubleshooting information are provided.
Troubleshooting and error codes
| Symbol | Description |
|---|---|
| DANGER | Indicates a hazard with a high level of risk, which if not avoided, will result in death or serious injury. |
| WARNING | Indicates a hazard with a medium or low level of risk, which if not avoided, could result in minor or moderate injury. |
| CAUTION | Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results. |
| TIP | Indicates a tip that may help you solve a problem or save time. |
| NOTE | Provides additional information to emphasize or supplement important points of the main text. |
