Manual for VRP3.10

1. Logging in Ethernet Switch Commands

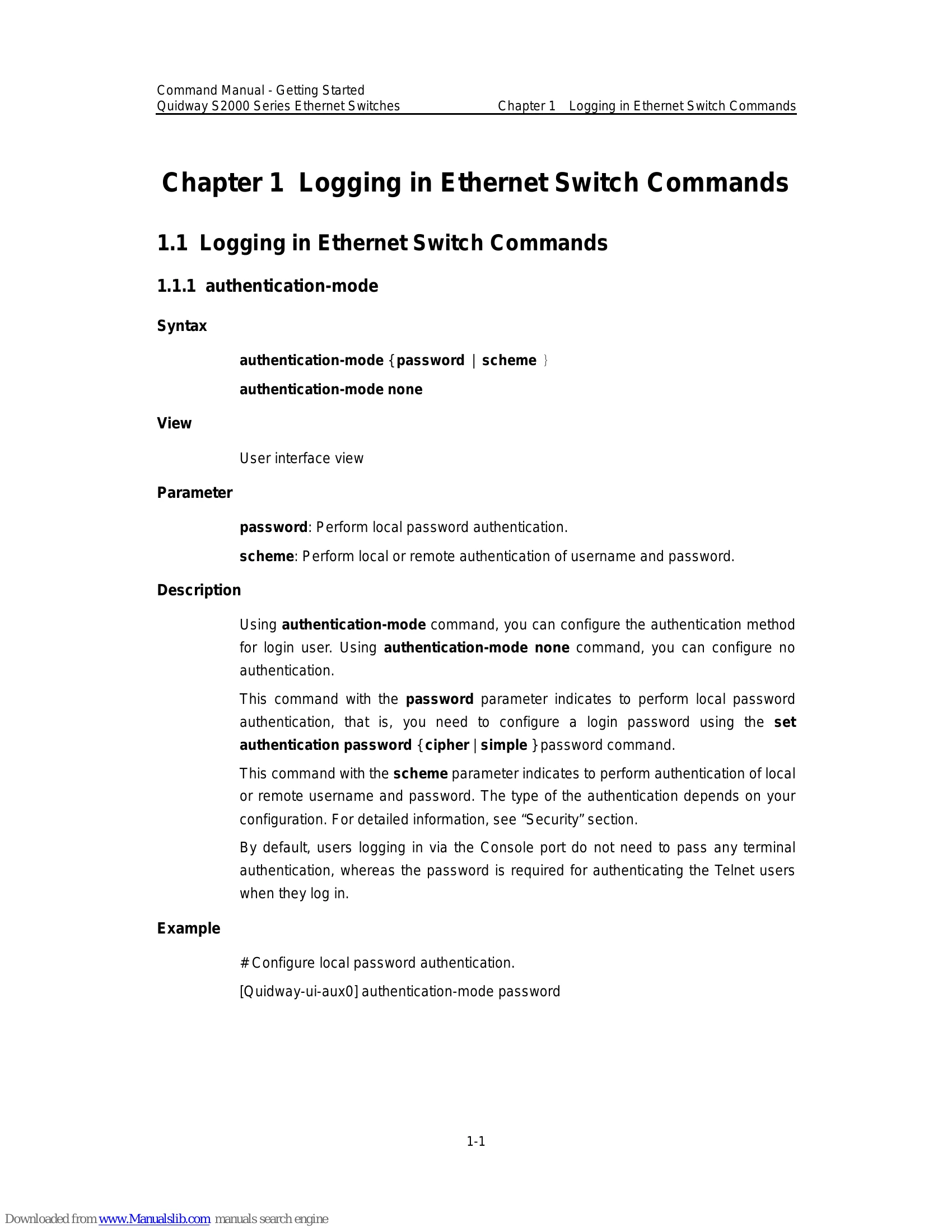

• authentication-mode: Configures the authentication method for login users (password or scheme), or disables authentication (none).
• auto-execute command: Configures a command to be run automatically after a user logs in.
• command-privilege level: Configures the privilege level of commands for specific views.
• databits: Configures the data bits for the AUX (Console) port.
• display history-command: Views saved history commands.
• display user-interface: Displays information about user interfaces.
• display users: Views information about logged-in users.
• flow-control: Configures flow control mode (hardware, none, software) on the AUX port.
• free user-interface: Resets a specified user interface, causing disconnection.
• header: Configures display headers for login, shell, or incoming sessions.
• history-command max-size: Configures the size of the history command buffer.
• idle-timeout: Configures the timeout for user interfaces when there is no operation.
• language-mode: Switches the command line interface language between Chinese and English.
• lock: Locks the current user interface to prevent unauthorized access.
• parity: Configures the parity mode on the AUX (Console) port.
• quit: Returns to a lower-level view or exits the system.
• return: Returns to a lower-level view.

2. System IP Configuration Commands

• description: Configures a description for the system or interface.
• display interface vlan-interface: Displays information about VLAN interfaces.
• display ip host: Displays the IP host table.
• display ip routing-table: Displays the IP routing table.
• ip address: Configures IP addresses for interfaces.
• ip host: Configures static IP host entries.
• ip route-static: Configures static routes.
• shutdown: Shuts down an interface.
