Brand: HUAWEI
Category: Wireless Router
Document Type: Quick Start Guide
Language: EN
Quick Start Guide for EchoLife EG8041V5
Uploaded: Nov. 21, 2025, 7:21 p.m.
Manual Publish Date: 2022-09-15
Warranty Information
Warranty information is not explicitly detailed in this document.

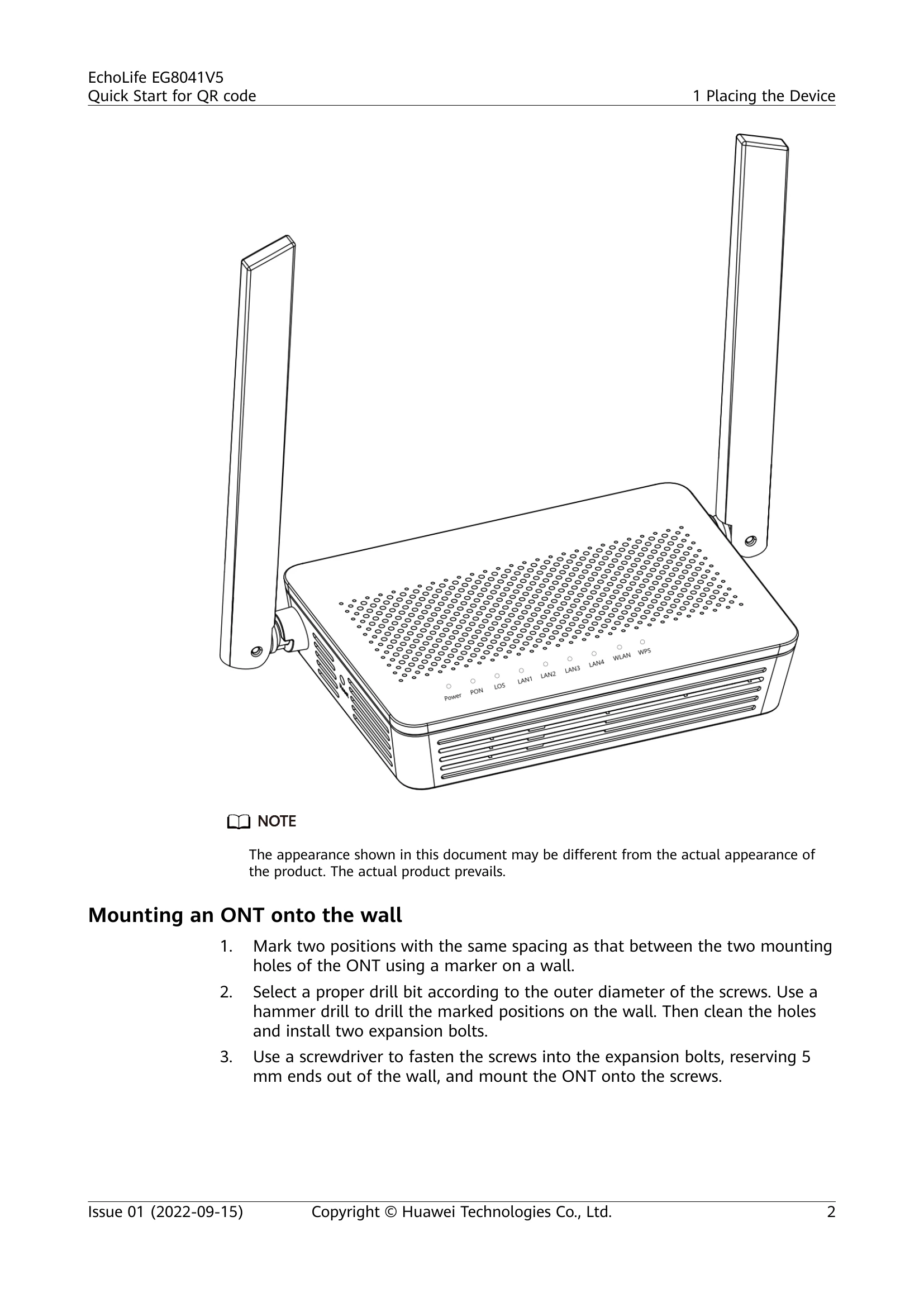

- Placing the Device: Do not install outdoors or in cabinets. Mount on a wall or desk, ensuring 10 cm clearance. Keep away from strong magnetic/electric field sources.
- Connecting Cables: Connect power adapter, PCs/STBs to LAN ports, and fiber optic cable to the optical port.
- Indicator Description: Understand the status of Power, PON, LOS, LAN, WLAN, and WPS indicators for troubleshooting.
- Technical Specifications: Details on ports, Wi-Fi standards, power, temperature, humidity, dimensions, and weight.
- FAQs: Log in to the web page, change Wi-Fi password, troubleshoot connection issues, improve Wi-Fi speed, and restore factory settings.
Troubleshooting and error codes
| Status No. | PON Status | LOS Status | Description |
|---|---|---|---|
| 1 | Off | Off | The ONT is prohibited by the upper-layer device or blinks abnormally. Contact the service provider for help. |
| 2 | Blinks twice a second | Blinks twice a second | The ONT is prohibited by the upper-layer device or blinks abnormally. Contact the service provider for help. |
| 3 | Blinks twice a second | Off | The ONT attempts to set up a connection with its upper-layer device. |
| 4 | Steady on | Off | A connection is set up between the ONT and its upper-layer device. |
| 5 | Off | Blinks once every 2 seconds | The ONT is not connected to fibers or does not receive optical signals. |
| 6 | Blinks once every 2 seconds | Blinks once every 2 seconds | The hardware is faulty. |
