Warranty Information
5-year warranty for the integrated LED chip for private use, 8 hours/day.
Remote Control Operation: The remote control allows for fan speed adjustment (buttons 1-5), light control (FAN ON/OFF, LIGHT ON/OFF), and setting timers (2H, 4H, 8H). The F/R button reverses fan direction. Specific button presses and holds are required for pairing the remote with the fan and light.

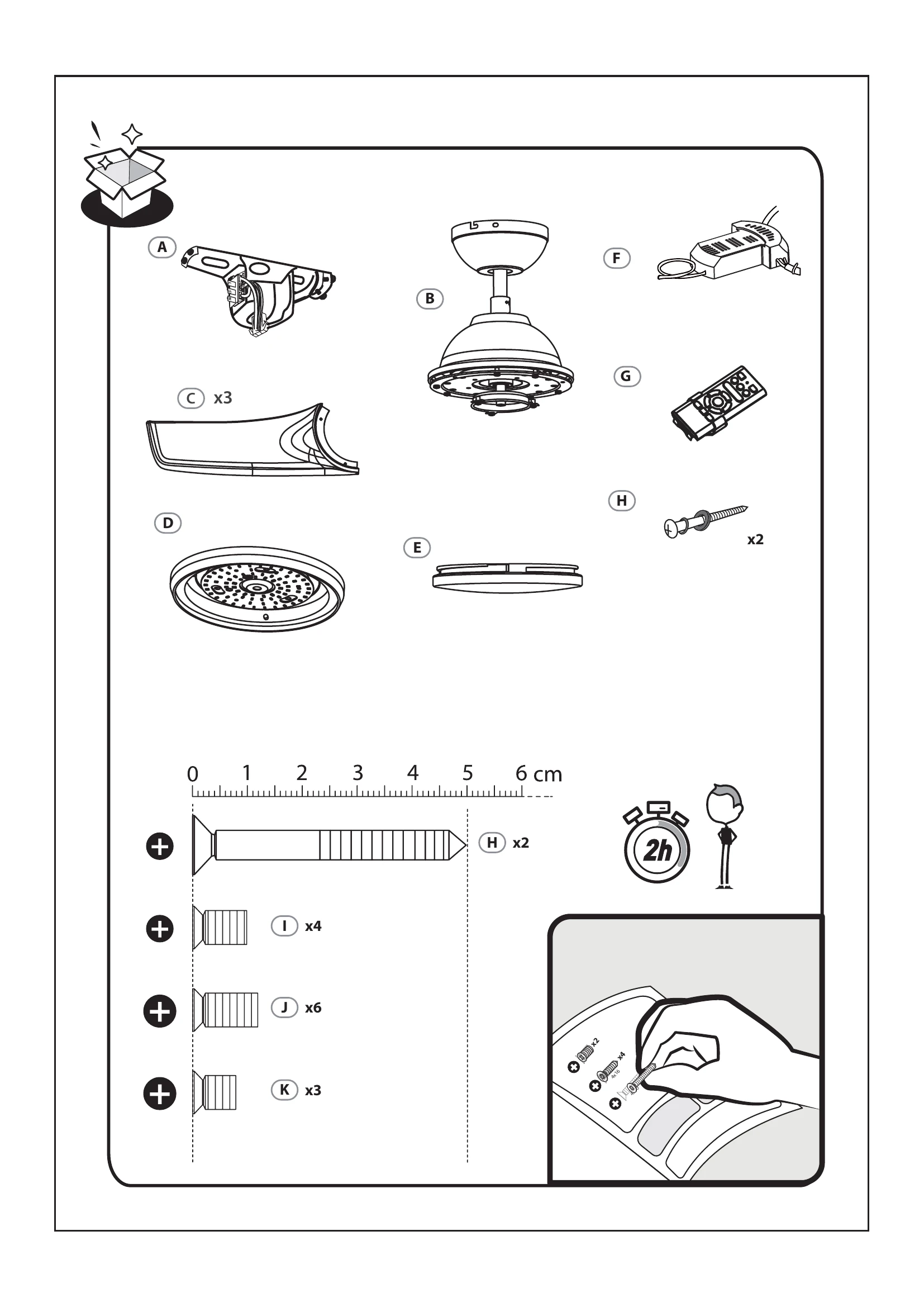

Installation Notes: Ensure the fan is installed by a qualified electrician. Follow specific safety instructions regarding mounting height, clearance from walls, and electrical connections. Refer to diagrams for assembly steps.
Maintenance: Always disconnect power before cleaning. Use a dry or slightly damp cloth. Avoid abrasive cleaners. Regular checks for loose screws are recommended.
Troubleshooting and error codes
| PROBLEM | PROBABLE CAUSE | SUGGESTED REMEDY |
|---|---|---|
| The fan does not start | • Fuse or circuit breaker tripped. | • Check the fuses or circuit breakers of the main and branch circuit. |
| • Power supply line connections to the fan are loose. | • Check the power supply line connections to the fan. | |
| • Speed controller is not in the correct position. | • Check the position of the speed controller. | |
| The fan is noisy when operating | • Upper canopy touching the ceiling. | • Lower the fan canopy to achieve a minimum gap of 3 mm. |
| • Fan blade screws are loose. | • Re-tighten all fan blade screws (but do not overtighten). | |
| • Fan is not properly secured to the ceiling. | • Re-tighten all screws of the support or hanging plate. | |
| • Incorrect speed controller. | • Replace the controller with the one provided with the fan. | |
| Mechanical noise | • Allow at least 8 hours for settling in. | |
| The fan wobbles | • Fan blades are not horizontal relative to the ceiling. | • Measure the distance from the ceiling to the tips of the blades, then rotate the fan to check if all blades are at the same distance from the ceiling (adjustments may be made by applying slight pressure up or down on the blade holders). |
| • Fan blade screws are loose. | • Ensure all screws are securely tightened. |
