Warranty Information
Refer to the components and assembly section for product information.

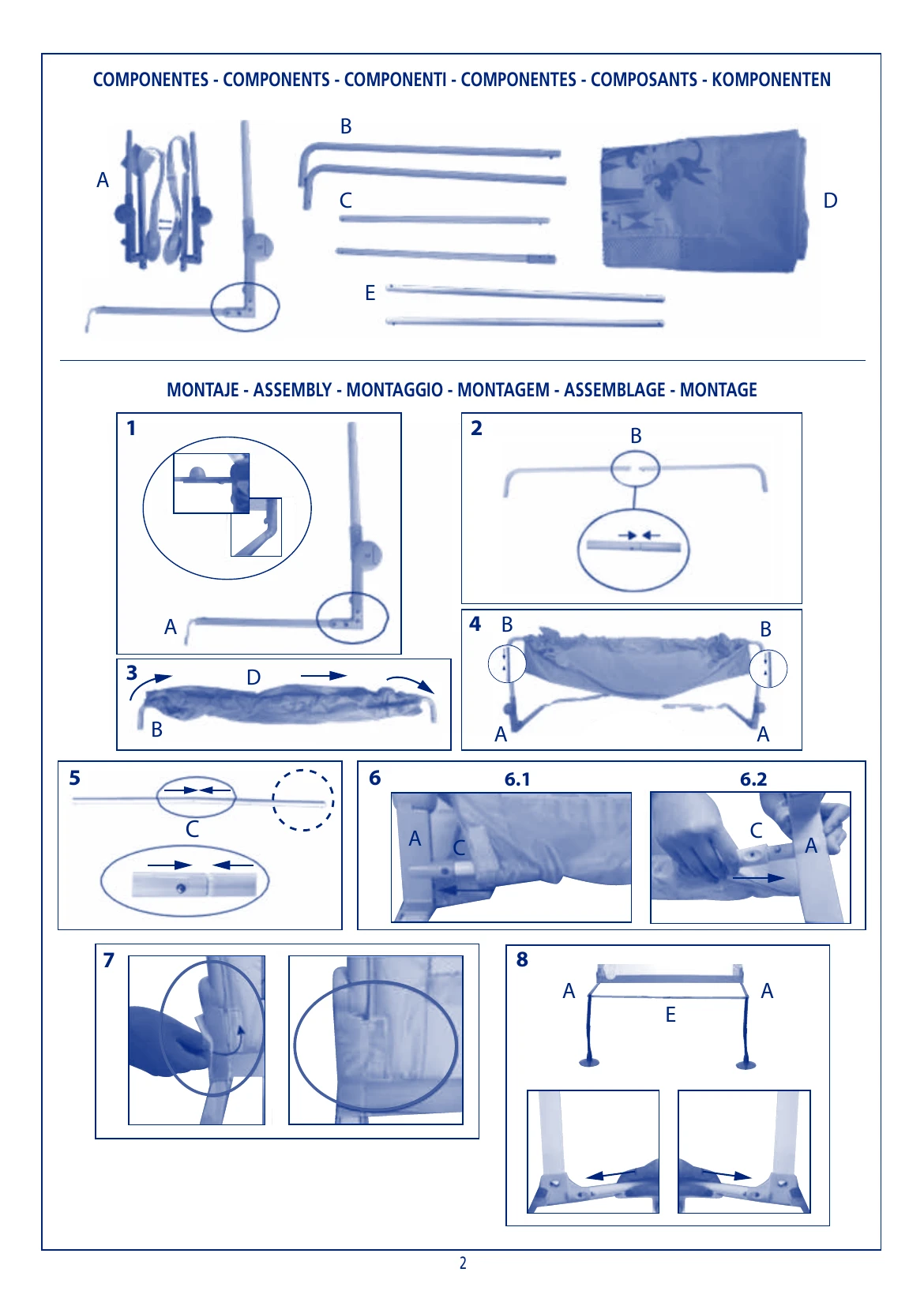

Assembly: Follow the illustrated steps to connect the bars (A, B, C, E) and fabric (D). Secure screws and velcro for a firm attachment.
Installation on Bed: Adjust the safety strap length by measuring mattress thickness. Slide bed rail feet under the mattress until flush. Ensure a gap of at least 25 cm between the rail and headboard, and that the top of the rail is at least 16 cm above the mattress. Secure the oval plate to the other side of the mattress.
Folding Function: Press the side button to lower the rail.
Storage: Remove rail, dismantle by reversing assembly, store screws, and clean.
Troubleshooting and error codes
| Problem | Solution |
| The rail is not fitting correctly. | Ensure all parts are in place and connected properly. Verify the fixing system is correctly positioned between the bed and mattress. |
| The folding mechanism is not working. | Make sure the side button is being pressed correctly and the rail moves smoothly. |
| The fabric is loose or ill-fitting. | Check that all velcro straps are securely attached to the "L" bar. Ensure the fabric is evenly stretched. |
