Brand: JVC
Category: Audio System
Document Type: Manual
Language: EN

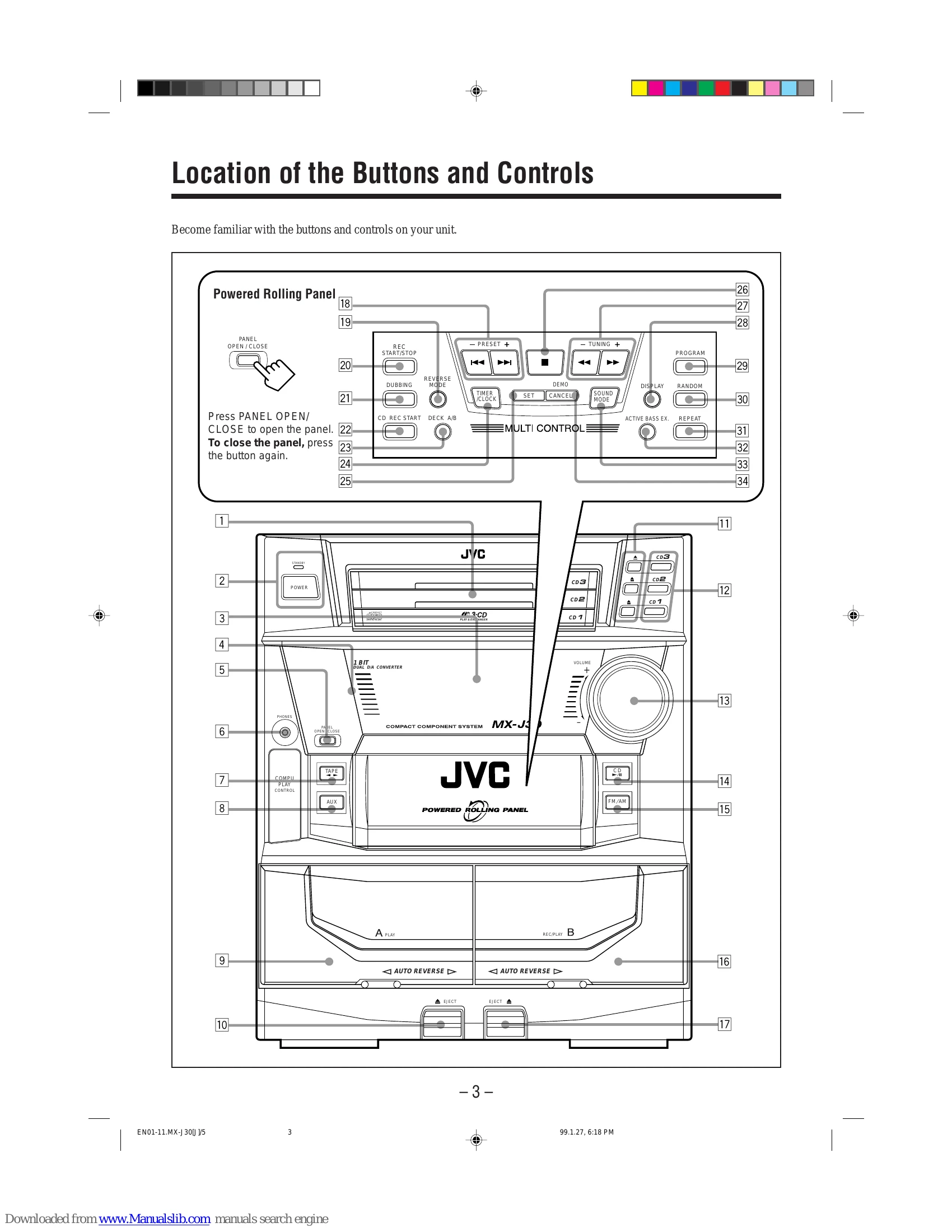

Manual for MX-J30
Uploaded: Nov. 21, 2025, 7:16 p.m.
Manual Publish Date: 1999-01-27
Warranty Information
JVC warrants this product for 1 year from the date of original retail purchase.
Setting the Clock: Press PANEL OPEN/CLOSE, then TIMER/CLOCK. Adjust hour with / , then press SET. Adjust minute with / , then press SET.
Turning On and Selecting Sources: Press a play button (FM/AM, CD/II, AUX, TAPE) to turn on. Press POWER to turn on without playing. Press FM/AM for radio, CD/II for CDs, TAPE for tapes, AUX for external equipment.
Adjusting Volume: Turn VOLUME clockwise to increase, counterclockwise to decrease.
Selecting Sound Modes: Press SOUND MODE to cycle through presets like D.CLUB, HALL, STADIUM, ROCK, POP, OFF.
Troubleshooting and error codes
| Symptom | Cause | Action |
|---|---|---|
| No sound is heard. | Connections are incorrect or loose. | Check all connections and make corrections. (See pages 6 to 8.) |
| Hard to listen to broadcasts because of noise. | Antennas are disconnected. | Reconnect the antennas correctly and securely. |
| The AM loop antenna is too close to the unit. | Change the position and direction of the AM loop antenna. | |
| The FM antenna is not properly extended and positioned. | Extend the FM antenna at the best position. | |
| The disc sound is discontinuous. | The disc is scratched or dirty. | Clean or replace the disc. (See page 21.) |
| The disc tray does not open or close. | The AC power cord is not plugged in. | Plug the AC power cord. |
| Trays are locked. | Unlock the trays. (See page 14.) | |
| The disc does not play. | The disc is placed upside down. | Place the disc with the label side up. |
| The cassette holders cannot be opened. | Power supply from the AC power cord has been cut off while the tape was running. | Turn on the unit. |
| Impossible to record. | Small tabs on the back of the cassette are removed. | Cover the holes with adhesive tape. |
| Operations are disabled. | The built-in microprocessor may malfunction due to external electrical interference. | Unplug the AC power cord and then plug it back in. |
| Unable to operate the unit from the remote control unit. | The path between the remote control unit and the remote sensor on the unit is blocked. | Remove the obstruction. |
| The batteries are exhausted. | Replace the batteries. |
