Brand: JVC
Category: Audio System
Document Type: Parts/Service
Language: EN
Parts/Service for PC-X250
Uploaded: Nov. 21, 2025, 9:18 p.m.
Manual Publish Date: 2001-10-01
Warranty Information
No warranty information provided in this section.
Safety Precautions:

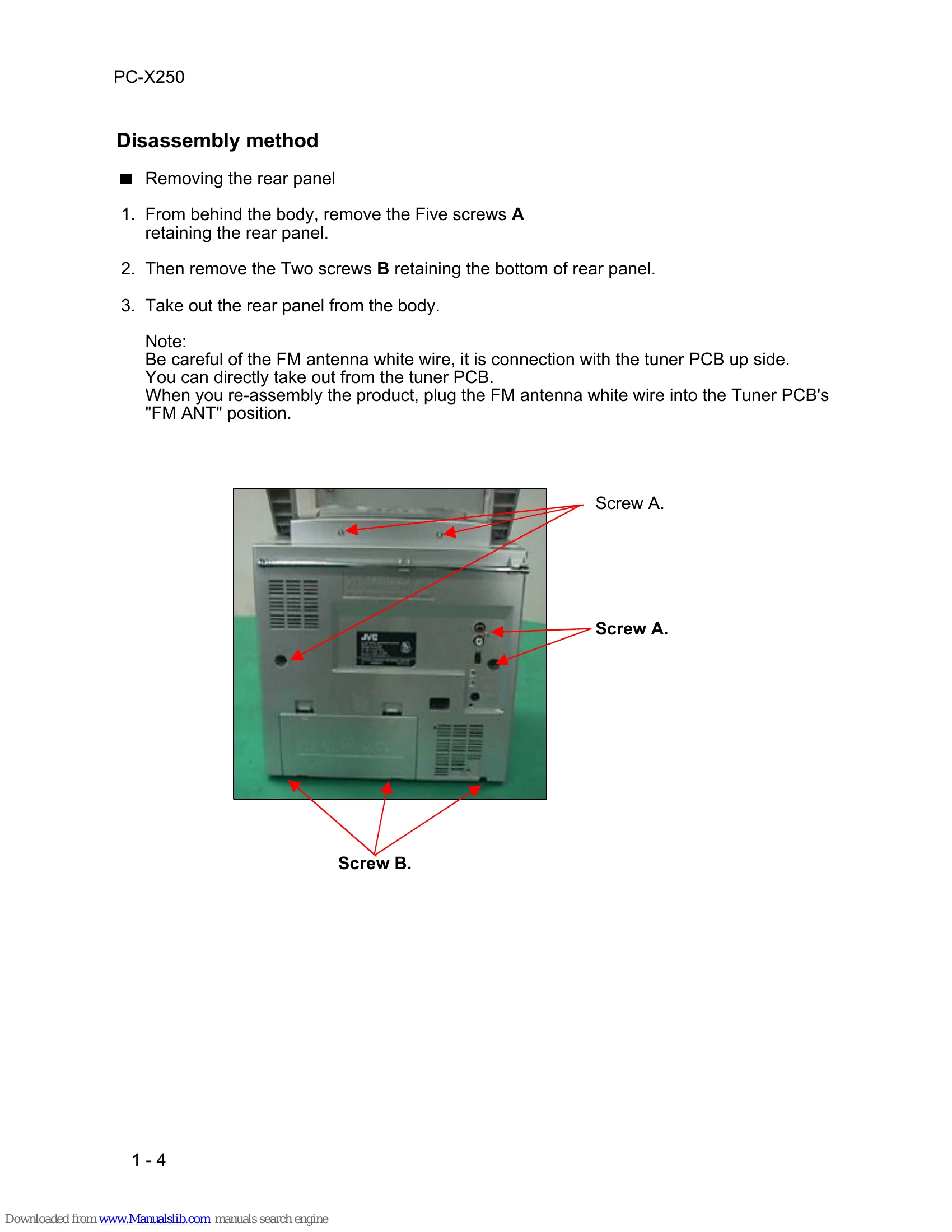

Instructions for removing the rear panel, audio board, CD mechanism, and tuner PCB. Includes notes on antenna wire connection.
- Do not alter the original design or use non-identical replacement parts.
- Observe original lead routing and dressing for safety.
- Always perform leakage current checks after re-assembly.
- Ground workbench and yourself with anti-static wrist strap.
- Handle optical pickup carefully, avoid shocks and strong force on flexible cables.
Instructions for removing the rear panel, audio board, CD mechanism, and tuner PCB. Includes notes on antenna wire connection.
Troubleshooting and error codes
| Items | Measurement conditions | Measurement method | Standard Values | Adjusting positions |
|---|---|---|---|---|
| Confirmation of head angle | Test tape :TA-182A(8KHz) Measurement output terminal :Speaker terminal Speaker R (Load resistance:3 ) :Headphone terminal |
1 Playback the test tape TCC-182A (8KHz) 2 With the recording & playback mechanism, adjust the head azimuth screw so that the left and right output levers become maximum, After adjustment, lock the head azimuth at least by half turn. |
Maximum output | Adjust the head azimuth screw only when the head has been changed |
| Confirmation of tape speed | Test tape TCC-112(3000Hz) Measurement output terminal :Headphone terminal |
Adjust VR501 so that the frequrncy counter reading becomes 3,010Hz +/-15Hz when playing back the test tape TCC-112 (3000Hz) with playback and recording mechanism after ending forward winding if the taoe. | Tape speed of deck :3,010Hz +/-15Hz |
VR501 |
| Wow & flutter | Test tape :TCC-112(3000Hz) Measurement outut terminal :Headphone terminal |
When the test tape TCC-112 (3000Hz) has been played back with the recording and playback mecganism at the beginning of forward winding, the frequency counter reading of wow & flutter should be 0.25% or less (WRMS). | 0.25% or less (WRMS) |
