Parts/Service for XV-C3SL
Uploaded: Nov. 21, 2025, 6:12 p.m.
Manual Publish Date: 2002-08-01

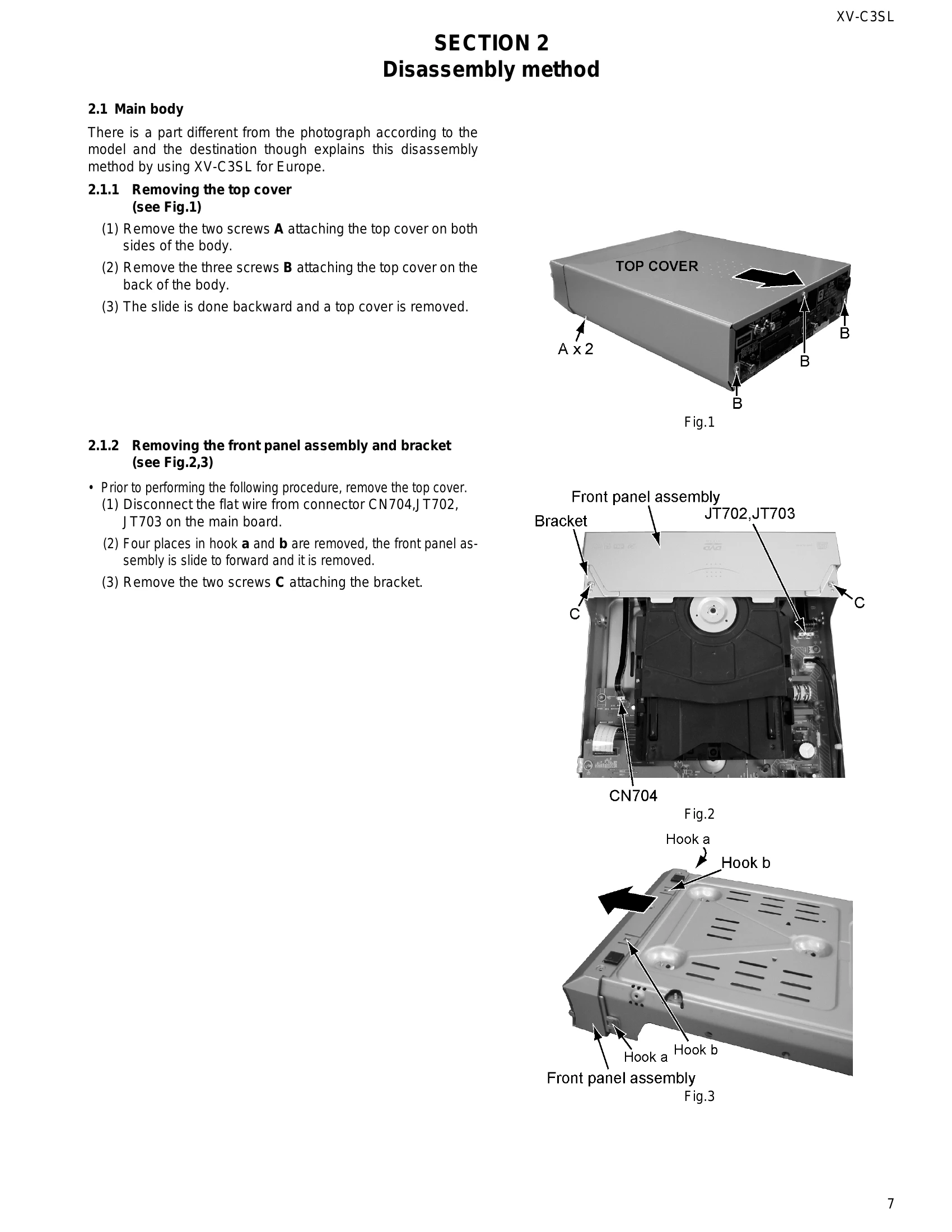

This manual provides detailed instructions for the disassembly, adjustment, and troubleshooting of the JVC XV-C3SL DVD Video Player. It includes safety precautions, step-by-step disassembly procedures for various components like the top cover, front panel, mechanism assembly, and servo control board. It also covers adjustment methods for laser current and jitter values, pick-up exchange procedures, and operation confirmation checks. Schematic diagrams and printed circuit board layouts are provided for technical reference.
Troubleshooting and error codes
| Error Code | Description | Check Points |
|---|---|---|
| (No specific error codes listed in the provided pages for troubleshooting) | Check points for each error | Refer to section 4.7 for specific error checks. |
| Leakage shock hazard | Leakage current must not exceed 0.5mA AC (r.m.s.). | Test with AC line cord plugged directly into the AC outlet. Use a "Leakage Current Tester" or AC voltmeter with a specific resistor/capacitor setup. |
