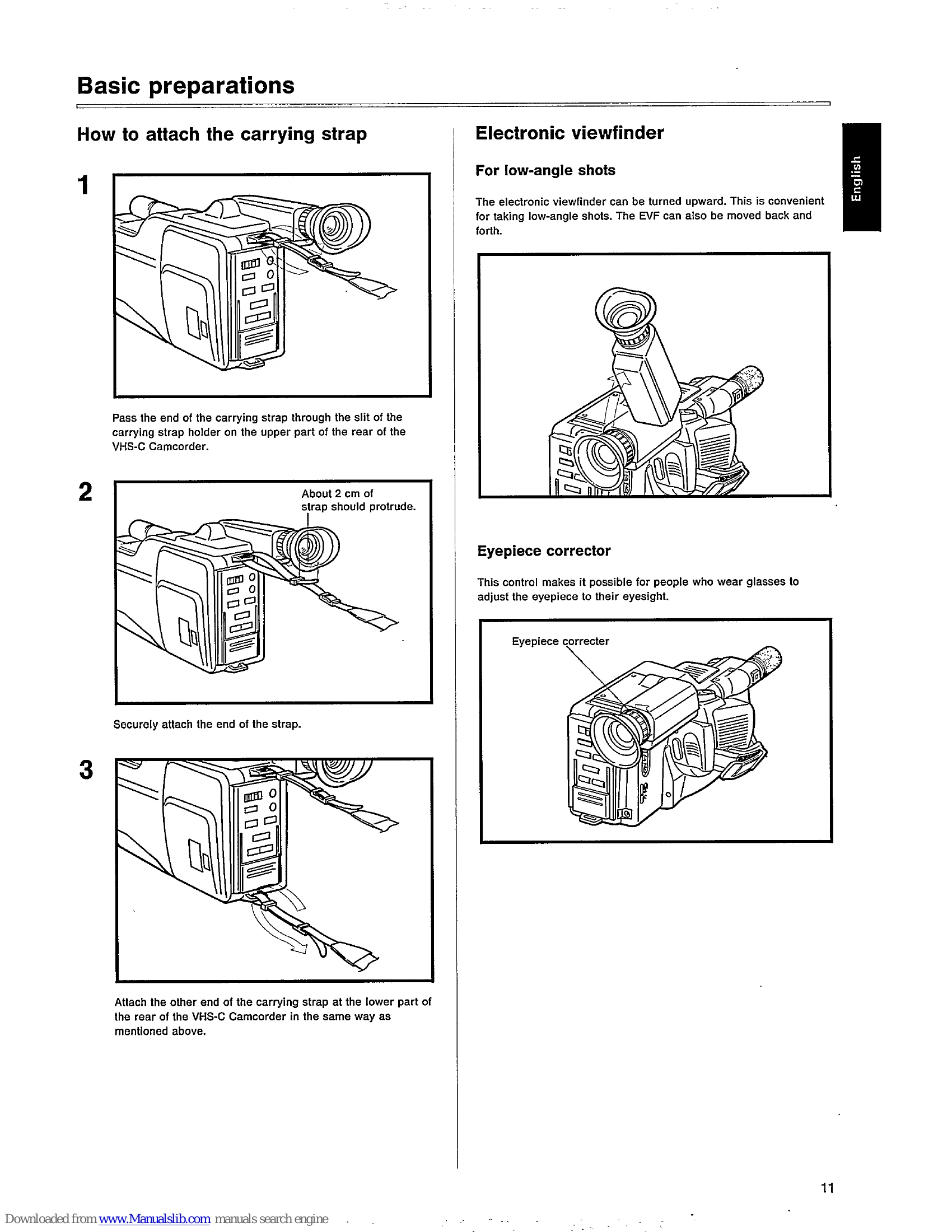

- Basic Preparations: Attach carrying strap, check electronic viewfinder, insert VHS-C cassette.
- Camera Recording: Set white balance and focus to AUTO, place in shooting position, press Start/Stop.
- Advanced Techniques: Adjust white balance, focus manually, zoom using power or manual controls, use macro, fade in/out, and high-speed shutter.
- Recording Date/Time: Insert battery, set date and time via selector and buttons.
- Playback: Use Wind/Cue, Rewind, Play, Still, and Cue/Review functions.
- Connections: Connect to TV via Euroconnector or RF converter.
- Editing & Dubbing: Perform assemble editing and dubbing to a VCR.
Troubleshooting and error codes
| Symptoms | Check points |
|---|---|
| Power source | |
| The power does not switch on. | • Is the power supply unit correctly connected to the VHS-C Camcorder? |
| The power switches on, but it switches off again immediately. | • If the battery pack is exhausted, replace it with a fully charged one. |
| • If condensation has formed, wait until it has dissolved. | |
| Camera recording | |
| The power is on, but no picture appears in the EVF. | • Is the lens cap? |
| Camera recording cannot be performed. | • If the tab of the cassette is broken out, cover the tab hole with adhesive tape. |
| The picture is not clear. | • Is the eyepiece correctly adjusted to your eyesight? |
| • Is the lens surface dusty? | |
| The Auto focus system does not provide optimum focus adjustment. | • Is the Focus mode selector set to "AUTO"? |
| • For shooting conditions where the "AUTO" setting of the Focus mode selector cannot provide optimum focus adjustment, set the selector to "MANUAL" and adjust the focus. | |
| Playback | |
| No playback picture is reproduced. | • Is the connection to the TV set correct? |
| • Is the TV set tuned to the video playback channel? | |
| The colours are not correct. | • Is the colour adjustment of the TV set correct? |
| The playback picture is not in colour. | • The playback picture has large amounts of "snow". |
| • Adjust the tracking. | |
| • If the tape is old, use a new tape. |
