GETTING STARTED

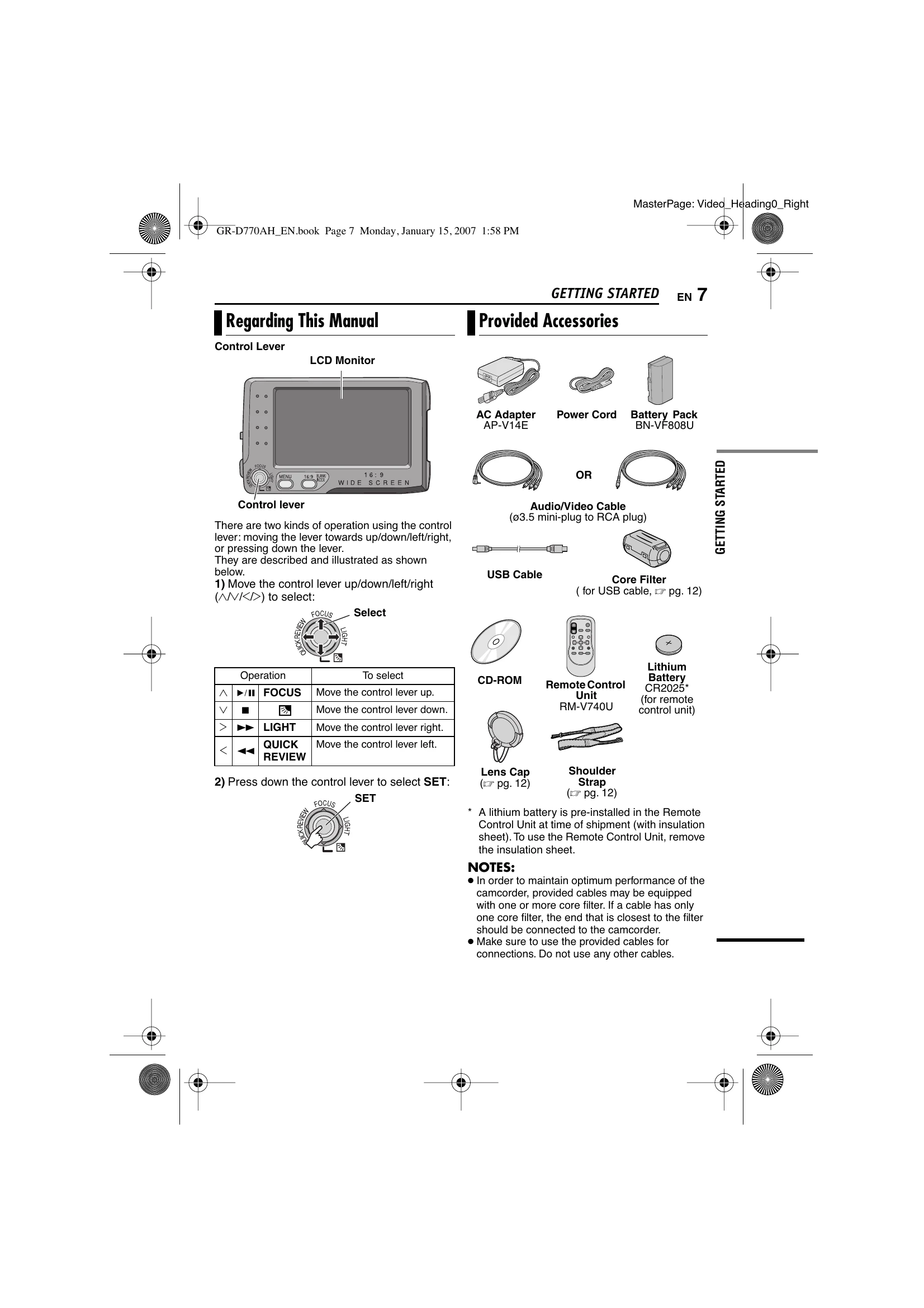

Regarding This Manual
This manual provides instructions for operating the JVC GR-D770AH digital video camera.
Provided Accessories
The camcorder comes with various accessories, including an AC adapter, power cord, battery pack, audio/video cable, USB cable, lens cap, shoulder strap, and a CD-ROM.
Index
The manual includes a detailed index with illustrations of the camcorder's parts and controls.
Controls and Indicators
Descriptions of various controls such as the control lever, power switch, buttons, and connectors are provided, along with explanations of the indicators that appear on the LCD monitor and viewfinder.
Basic Operation
Instructions cover charging the battery, loading/unloading cassettes and memory cards, basic recording, playback, and using the AC power.
Troubleshooting and error codes
| Problem: No power is supplied. | Possible Causes & Solutions: - Power not connected properly: Connect AC Adapter securely. - Battery pack not attached firmly: Detach and re-attach firmly. - Battery is dead: Replace with a fully charged one. |
| Problem: Recording cannot be performed. | Possible Causes & Solutions: - Tape's erase protection tab set to "SAVE": Set to "REC". - "TAPE END" appears: Replace with new cassette. - Cassette holder cover is open: Close the cassette holder cover. |
| Problem: When shooting a subject illuminated by bright light, vertical lines appear. | Solution: This is not a malfunction. |
| Problem: When the screen is under direct sunlight during shooting, the screen becomes red or black for an instant. | Solution: This is not a malfunction. |
| Problem: The LCD monitor or viewfinder indications blink. | Possible Causes & Solutions: - Effects functions that cannot be used together are selected: Re-read sections covering Effects. |
| Problem: The tape is moving, but there is no picture. | Possible Causes & Solutions: - TV has AV input terminals but is not set to VIDEO mode: Set TV to appropriate mode/channel. - Cassette holder cover is open: Close the cassette holder cover. |
| Problem: Blocks of noise appear during playback, or there is no playback picture and the screen becomes blue. | Solution: Clean the video heads with an optional cleaning cassette. |
| Problem: The focus does not adjust automatically. | Possible Causes & Solutions: - Focus is set to Manual mode: Set Focus to Auto mode. - Lens is dirty or covered with condensation: Clean the lens and check the focus again. |
| Problem: The colour of Snapshot looks strange. | Possible Causes & Solutions: - Light source or subject does not include white, or various light sources behind subject: Find a white subject and compose your shot so that it appears in the frame. |
| Problem: The POWER/CHARGE lamp on the camcorder does not light during charging. | Possible Causes & Solutions: - Charging difficult in extreme temperatures: Charge between 10°C to 35°C. - Battery pack not attached firmly: Detach and re-attach firmly. |
| Problem: The image looks like the shutter speed is too slow. | Possible Causes & Solutions: - When shooting in dark, "GAIN UP" is set to "AUTO": Set "GAIN UP" to "AGC" or "OFF". |
| Problem: Images on the LCD monitor appear dark or whitish. | Possible Causes & Solutions: - Low temperature characteristics of LCD monitor: This is not a malfunction. Adjust brightness and angle. - LCD monitor's fluorescent light reached end of service life: Consult your nearest JVC dealer. |
| Problem: Picture does not appear on the LCD monitor. | Possible Causes & Solutions: - Viewfinder pulled out and "PRIORITY" set to "FINDER": Push viewfinder back in or set "PRIORITY" to "LCD". - LCD monitor's brightness setting is too dark: Adjust the brightness of the LCD monitor. |
