Power: The camcorder has a 2-way power supply system using either an AC adapter or a battery pack. Charging the battery pack involves connecting the AC adapter and waiting for the CHARGE lamp to indicate completion. Battery life varies by model and usage (LCD on/viewfinder on). When detaching the power source, ensure the camcorder is turned off.

Grip Adjustment: Adjust the grip for comfortable operation of buttons and levers.

Viewfinder Adjustment: Adjust the viewfinder using the Diopter Adjustment Control for a clear image.

Strap Attachment: Attach the shoulder strap by threading it through the eyelets.

Tripod Mounting: Mount the camcorder on a tripod using the mounting socket and screw, ensuring the legs are extended for stability.

Date/Time Settings: Set the date and time via the menu system for accurate recording.

Loading/Unloading Cassette: Insert or remove the Mini DV cassette by opening the cassette holder cover.

Recording Mode: Select between SP (Standard Play) and LP (Long Play) modes via the menu.

Memory Card: The camcorder supports SD Memory Cards and MultiMediaCards. Ensure the card is properly inserted. The Picture Quality mode (FINE/STANDARD) can be selected via the menu.

Troubleshooting and error codes

Indications	Function
Battery Indicator ( )	Displays the battery remaining power. Blinks when close to empty. Turns off automatically when power is exhausted.
CHECK TAPE'S ERASE PROTECTION TAB	Appears when the erase protection tab is set to "SAVE" and the camcorder is set to VIDEO mode.
HEAD CLEANING REQUIRED USE CLEANING CASSETTE	Appears if dirt is detected on the heads during recording. Use an optional cleaning cassette.
CONDENSATION OPERATION PAUSED PLEASE WAIT	Appears if condensation occurs. Wait for it to dissipate.
TAPE!	Appears if a tape is not loaded when the Recording Start/Stop Button or SNAPSHOT Button is pressed while the camcorder is set to VIDEO mode.
TAPE END	Appears when the tape ends during recording or playback.
DIFFERENT FORMATTED TAPE	Appears if a tape in another format is loaded.
SET DATE/TIME!	Appears when the date/time is not set or the internal clock battery is depleted.

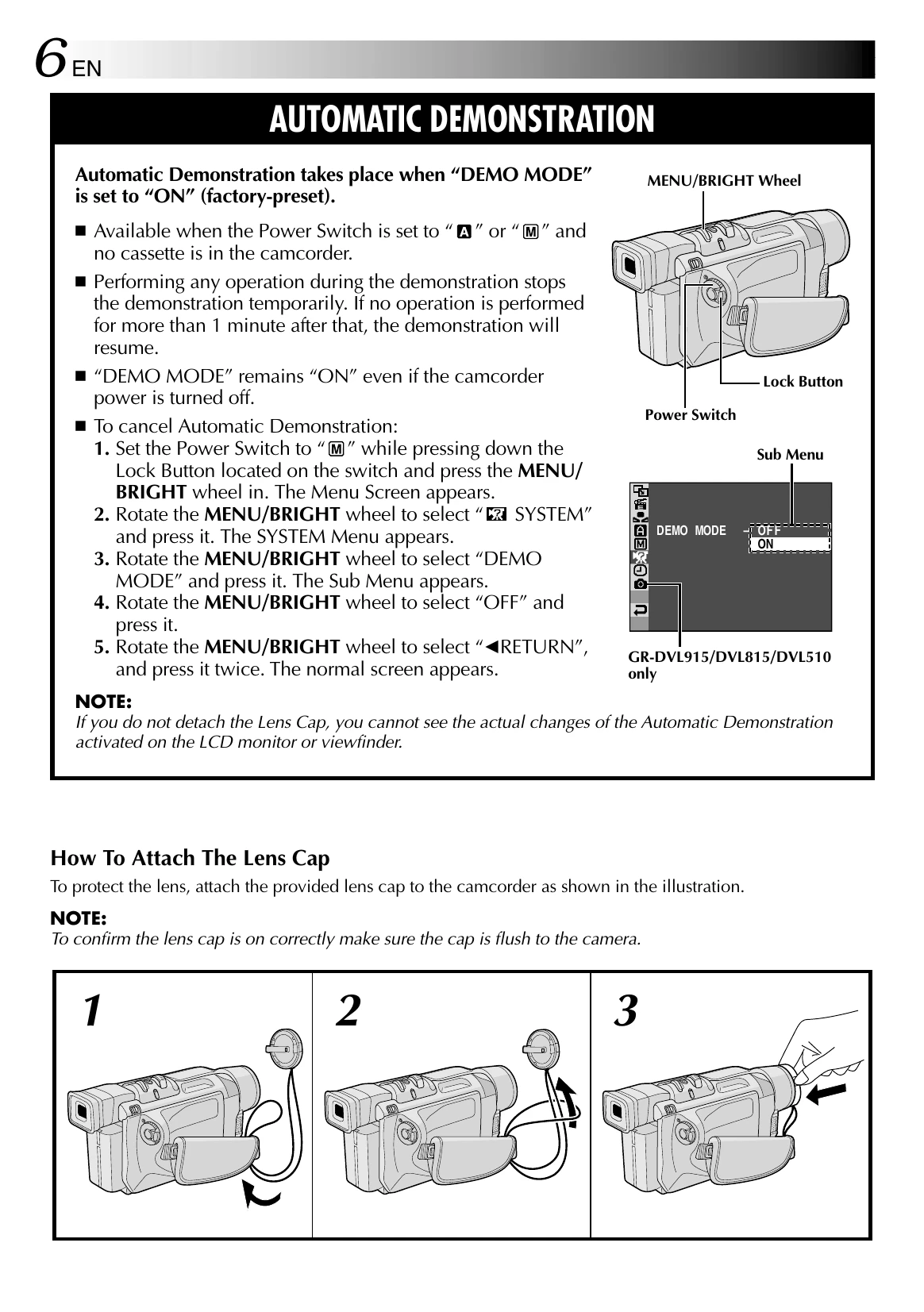

LENS CAP	Appears for 5 seconds after power is turned on if the lens cap is attached.
A. DUB ERROR!	Appears if Audio Dubbing is attempted on a blank portion of a tape, in LP mode, or in 16-bit audio. Also appears if the remote control's A. DUB button is pressed when the erase protection tab is set to "SAVE".
