Brand: JVC
Category: Camcorder
Document Type: Manual
Language: EN
Manual for GR-DX97
Uploaded: Aug. 10, 2025, 12:35 a.m.
Warranty Information
None

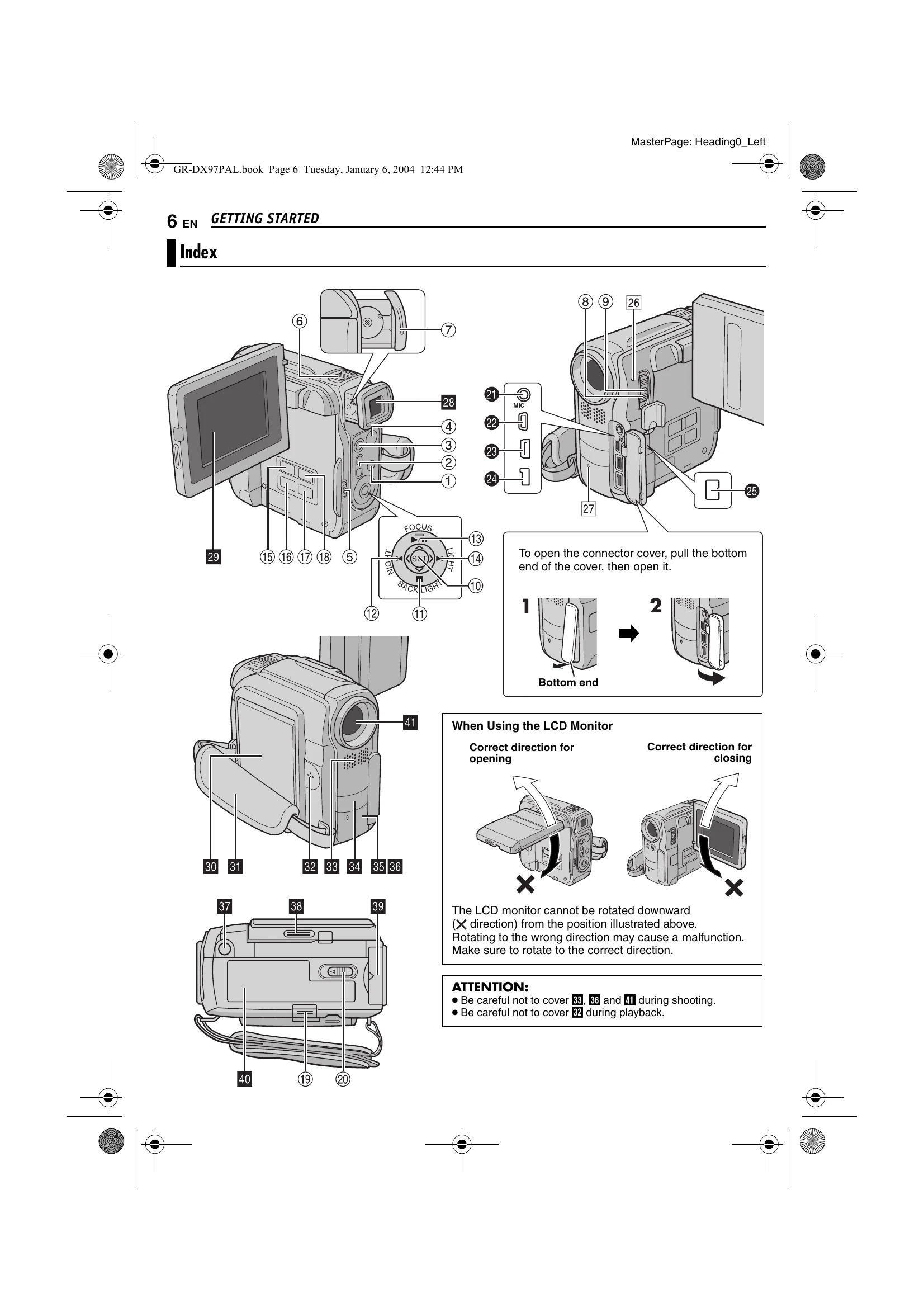

- Getting Started: Familiarize yourself with the camcorder's controls, indicators, and connectors. Learn how to charge the battery and load a cassette or memory card.
- Video Recording & Playback: Basic recording involves setting the operation mode, and pressing the record button. Playback allows you to view recorded footage on the LCD, viewfinder, or a TV.
- Digital Still Camera (D.S.C.) Recording & Playback: Use the camcorder as a digital still camera to capture images and store them on a memory card. You can also play back these images and video clips.
- Advanced Features: Explore functions like Wipe/Fader effects, Backlight Compensation, and editing features like Audio Dubbing and Insert Editing.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| No power is supplied. | The power is not connected properly. | Connect the AC Adapter securely. |
| The battery pack is not attached firmly. | Detach the battery pack once again and re-attach it firmly. | |
| The battery is dead. | Replace the dead battery with a fully charged one. | |
| Recording cannot be performed. | The tape's erase protection tab is set to "SAVE". | Set the tape's erase protection tab to "REC". |
| "TAPE END" appears. | Replace with new cassette. | |
| The cassette holder cover is open. | Close the cassette holder cover. | |
| During recording, the date/time does not appear. | "DATE/TIME" is set to "OFF". | Set "DATE/TIME" to "ON". |
| The LCD monitor or viewfinder indications blink. | Certain Wipe/Fader effects, certain modes of Program AE with special effects, "DIS" and other functions that cannot be used together are selected at the same time. | Re-read the sections covering Wipe/Fader effects, Program AE with special effects and "DIS". |
| Video and D.S.C. Playback: The tape is moving, but there is no picture. | Your TV has AV input terminals, but is not set to its VIDEO mode. | Set the TV to the mode or channel appropriate for video playback. |
| The cassette holder cover is open. | Close the cassette holder cover. | |
| Blocks of noise appear during playback, or there is no playback picture and the screen becomes blue. | Clean the video heads with an optional cleaning cassette. | |
| Snapshot mode cannot be used. | The Squeeze mode (SQUEEZE) is selected. | Disengage the Squeeze (SQUEEZE) mode. |
| The image taken using Snapshot is too dark. | Shooting was performed under backlit conditions. | Press BACK LIGHT. |
| The image taken using Snapshot is too bright. | The subject is too bright. | Set "GAIN UP" to "SPOTLIGHT". |
| White Balance cannot be activated. | The Sepia (SEPIA) or Monotone (MONOTONE) mode is activated. | Disengage the Sepia (SEPIA) or Monotone (MONOTONE) mode before setting White Balance. |
| The Black & White Fader does not work. | The Sepia (SEPIA) or Monotone (MONOTONE) mode is activated. | Disengage the Sepia (SEPIA) and Monotone (MONOTONE). |
| The image looks like the shutter speed is too slow. | When shooting in the dark, the unit becomes highly sensitive to light when "GAIN UP" is set to "AUTO". | If you want the lighting to look more natural, set "GAIN UP" to "AGC" or "OFF". |
