Brand: JVC
Category: Camcorder
Document Type: Manual
Language: EN
Manual for GZ-GX1
Uploaded: Aug. 10, 2025, 12:36 a.m.
Manual Publish Date: 2012

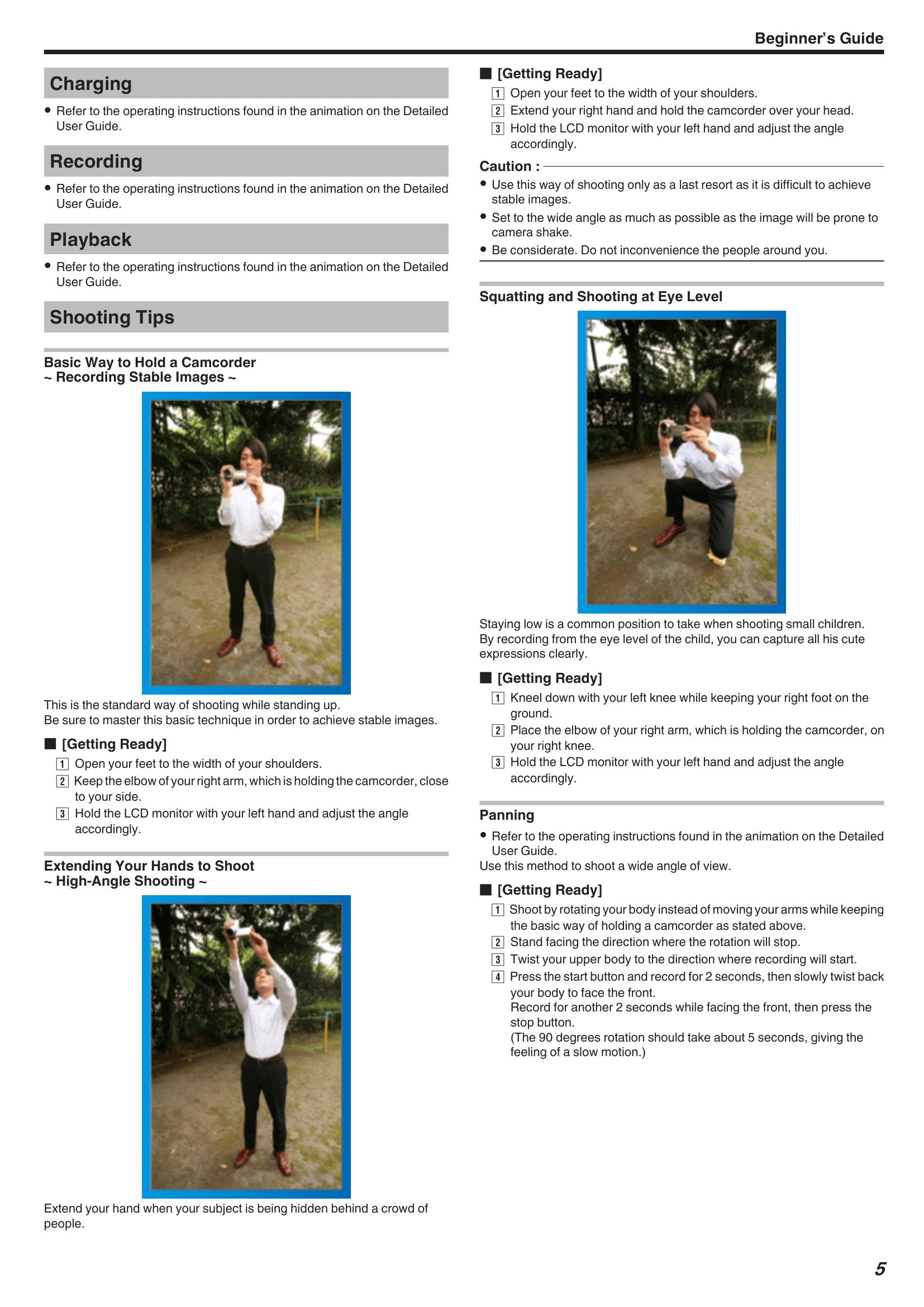

Beginner's Guide
- Charging: Refer to the "Detailed User Guide" for charging instructions.
- Recording: Refer to the "Detailed User Guide" for recording instructions.
- Playback: Refer to the "Detailed User Guide" for playback instructions.
Shooting Tips
- Basic Way to Hold a Camcorder: For stable images, stand with feet shoulder-width apart, hold the camcorder with your right hand close to your side, and support the LCD with your left hand.
- Extending Your Hands to Shoot: Useful for capturing subjects behind crowds.
- Squatting and Shooting at Eye Level: Kneel for better angles when shooting children.
- Panning: Rotate your body to follow a subject smoothly.
Troubleshooting and error codes
| Battery Pack Unable to turn on the power when using the battery pack. |
Recharge the battery pack. Check terminals for dirt. Use only JVC battery packs. |
|---|---|
| Short usage time even after charging. | Battery may be deteriorated. Replace with a new one. |
| Unable to charge the battery pack. | Check terminals for dirt. Use only an original AC adapter. |
| The remaining battery display is not correct. | May occur in high/low temperatures or after repeated charging. |
| Recording Recording cannot be performed. |
Check the / Button. Adjust settings manually if Intelligent Auto fails (e.g., focus). |
| Recording stops automatically. | Unit may stop after 12 hours or if temperature rises. Turn off and on again. |
| The continuous shooting speed of still images is slow. | May happen with repeated use, depending on SD card or recording conditions. |
| The focus is not adjusted automatically. | Adjust focus manually in dark places or low contrast subjects. Wipe lens with a cleaning cloth. Cancel manual focus. |
| Zoom does not work. | Digital zoom is not available in still image mode or time-lapse recording. Set "ZOOM" in the menu. |
| Mosaic-type noise occurs when recording scenes with fast movements or extreme changes in brightness. | Set "VIDEO QUALITY" to "UXP" or "XP". |
| Vertical lines appear on recorded images. | This is normal when shooting subjects illuminated by bright light. |
| A rattling sound is heard when turning on the power. | This is the sound of the image stabilizer starting; not a malfunction. |
| Card Cannot insert the SD card. |
Ensure it is inserted in the correct direction. |
| Unable to copy to SD card. | Format the SD card using "FORMAT SD CARD" if used on other devices. |
| Playback Sound or video is interrupted. |
May occur between scenes; not a malfunction. |
| There is no sound. | Turn off "SILENT MODE" or set "OPERATION SOUND" to "ON". No audio is recorded in HIGH SPEED RECORDING/TIME-LAPSE RECORDING. |
| The same image is displayed for a long time. | Use a high speed SD card (Class 4 or higher). Clean SD card terminals. Format the SD card. |
| The motion is choppy. | Use a high speed SD card (Class 4 or higher). Clean SD card terminals. Format the SD card. Verify computer system requirements for playback. |
| Cannot find a recorded file. | Cancel date search or use "PLAYBACK OTHER FILE". Adjust "SYSTEM SELECT" if needed. |
| Images do not appear on the TV properly. | Reconnect cables. Turn the unit off and on again. |
| Images are projected vertically on the TV. | Set "VIDEO OUTPUT" to "4:3". Adjust TV screen. |
| The image displayed on TV is too small. | Set "VIDEO OUTPUT" to "16:9". Adjust TV screen. |
| When connected via HDMI, proper images and sounds are not output. | Disconnect and reconnect the HDMI cable. Turn the unit off and on again. |
| Other Problems Buttons on touch screen do not work. |
Tap with fingers or stylus, not fingernails or gloves. |
| The image is grainy. | Occurs when using digital zoom. |
| This unit heats up. | Normal operation; stop if it gets too warm. |
| The language on the display changed. | May occur when connecting to TV via HDMI mini cable. |
| When connected to TV via HDMI mini cable, proper images and sounds are not output. | Disconnect and reconnect HDMI cable. Turn unit off and on again. |
| HDMI-CEC functions do not work properly. | Set "HDMI CONTROL" to "OFF". |
| Unit operates slowly. | Copy files to computer and erase them from unit. |
| Remote control does not work. | Replace remote battery. Set "REMOTE" to "ON". May not work in bright light. |
| Unit does not function properly and error messages appear. | Turn off unit, remove AC adapter and battery pack to reset. Back up data. |
| Error Message? SET DATE/TIME! |
Connect AC adapter, charge for 24+ hours, and set clock. If message persists, clock battery may be dead. |
| COMMUNICATION ERROR | Reconnect USB cable. Turn devices off/on. Reattach battery pack. |
| MEMORY CARD ERROR! | Check card compatibility. Turn unit off/on. Remove/re-insert SD card. Clean terminals. Format SD card if problem persists. |
| NOT FORMATTED | Select "OK" then "YES" to format. |
| RECORDING FAILURE | Turn off and on again. |
| CANNOT TAKE MORE STILL IMAGES AT THIS TIME | Stop video recording before taking stills. Re-insert SD card if removed during video. |
| PLAYBACK FAILED | Re-insert SD card. Clean terminals. Insert SD card before power on. Avoid strong impact/vibration. |
| VIDEO MANAGEMENT FILE IS DAMAGED... | Select "OK" to restore. |
| UNSUPPORTED SCENE! / UNSUPPORTED FILE! | Use files recorded with this unit. |
| THIS FILE IS PROTECTED | Turn off "PROTECT/CANCEL" function. |
| CHECK CARD'S WRITE PROTECTION SWITCH | Set the write protect switch to off. |
| INSUFFICIENT AVAILABLE SPACE | Delete files or move files to a computer. |
| RECORDABLE MANAGEMENT CAPACITY LEVEL HAS BEEN REACHED | Move files to computer, format SD card. |
| SCENE QUANTITY EXCEEDED LIMIT | Move files to computer, format SD card. |
| NUMBER OF FOLDERS OVERFLOW | Move files to computer, format SD card. |
| FILE QUANTITY LIMIT EXCEEDED | Move files to computer, format SD card. |
| PLAYLIST QUANTITY EXCEEDS LIMIT | Reduce playlist to 99 files or less. |
| CANCELLED BECAUSE PLAYLIST AMOUNT EXCEEDED MAXIMUM LIMIT | Reduce playlists or videos per playlist. |
| PROCESSING CANCELLED DUE TO LIMITED SPACE FOR OPERATION | Reduce number of videos to add to playlist. |
| RECORDING CANCELLED | Turn off and on again. Protect from vibration/shock. |
| CAMERA TEMPERATURE IS HIGH PLEASE TURN CAMERA OFF TO ALLOW IT TO COOL DOWN PLEASE WAIT | Turn off unit, let it cool down. |
| CAMERA TEMPERATURE IS TOO HIGH, POWER WILL TURN OFF TO PROTECT THE CAMERA | Normal operation. REC light turns yellow when temperature rises. |
| POWER IS OFF, OR USB DEVICE IS UNSUPPORTED | Turn on USB device. Connect AC adapter to DVD/BD writer. |
| INSERT DISC | Check and reset disc, then close tray. Replace disc. |
| CHANGE DISC | Check and reset disc, then close tray. Replace disc. |
