Manual for GZ-MG50E/EK
Uploaded: Aug. 10, 2025, 12:34 a.m.
Getting Started
This manual covers the initial setup and operation of your JVC Hard Disk Camcorder. Key sections include:

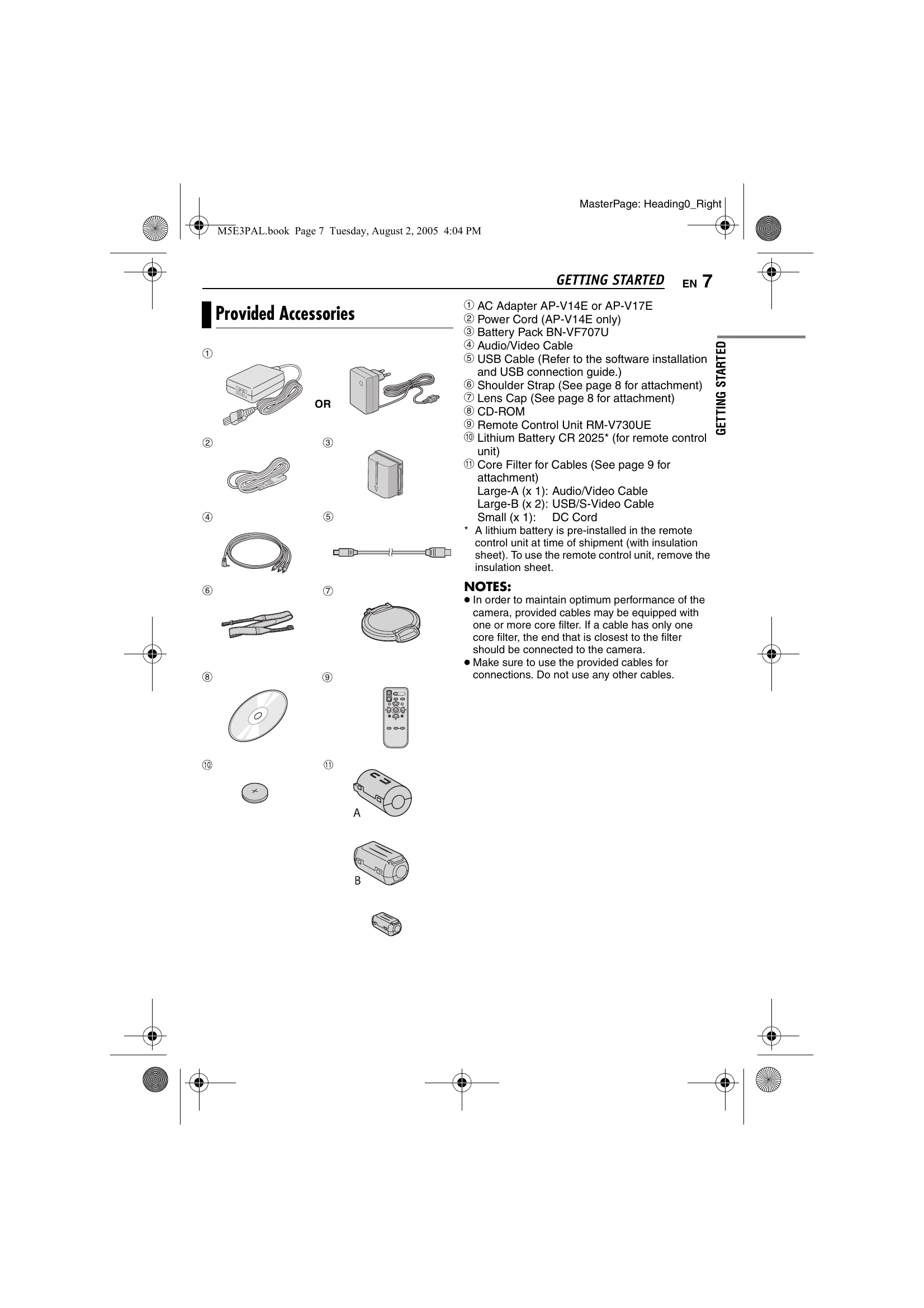

- Provided Accessories: Lists all items included with the camcorder.
- Attaching the Shoulder Strap and Lens Cap: Instructions for physical setup.
- Core Filter and LCD Monitor: Guidance on using accessories and the display.
- Controls and Indicators: Explains the various buttons, switches, and on-screen icons.
- Power: Details on charging the battery pack and using AC power.
- Operation Modes: Switching between recording/playback and auto/manual modes.
- Language and Date/Time Settings: Customizing camera preferences.
- Adjustments: Brightness, grip, and tripod mounting.
- Media Handling: Inserting/removing SD cards and formatting.
- Recording: Video recording procedures and notes.
- Software Installation: Guides for installing bundled software on PC and Macintosh.
Refer to specific pages for detailed instructions on each function.
Troubleshooting and error codes
| Troubleshooting | Possible Cause | Solution |
| Camera does not operate. | Battery is not installed or battery is not charged. | Install or charge the battery pack. |
|---|---|---|
| AC adapter is not connected correctly. | Connect the AC adapter correctly. | |
| Power switch is not set correctly. | Set the power switch correctly. | |
| The power/charge lamp does not light. | Battery is not installed correctly. | Install the battery pack correctly. |
| Battery is completely discharged. | Charge the battery pack. | |
| The battery pack is not compatible. | Use a genuine JVC battery pack. | |
| The camera does not record. | Recording medium is full. | Format the recording medium or transfer files to PC. |
| SD card is write-protected. | Slide the write-protection tab to the unlock position. | |
| The SD card is not formatted or corrupted. | Format the SD card using the camera. | |
| The recorded video/still image is corrupted. | SD card is not compatible or faulty. | Use a guaranteed SD card or format the existing card. |
| Camera was dropped during recording. | Use the Drop Detection function or save files to EXTMOV folder. | |
| No sound is recorded. | Volume is set to minimum or muted. | Adjust volume or check mute settings. |
| Microphone is obstructed. | Ensure microphone is not covered. |
