Getting Started

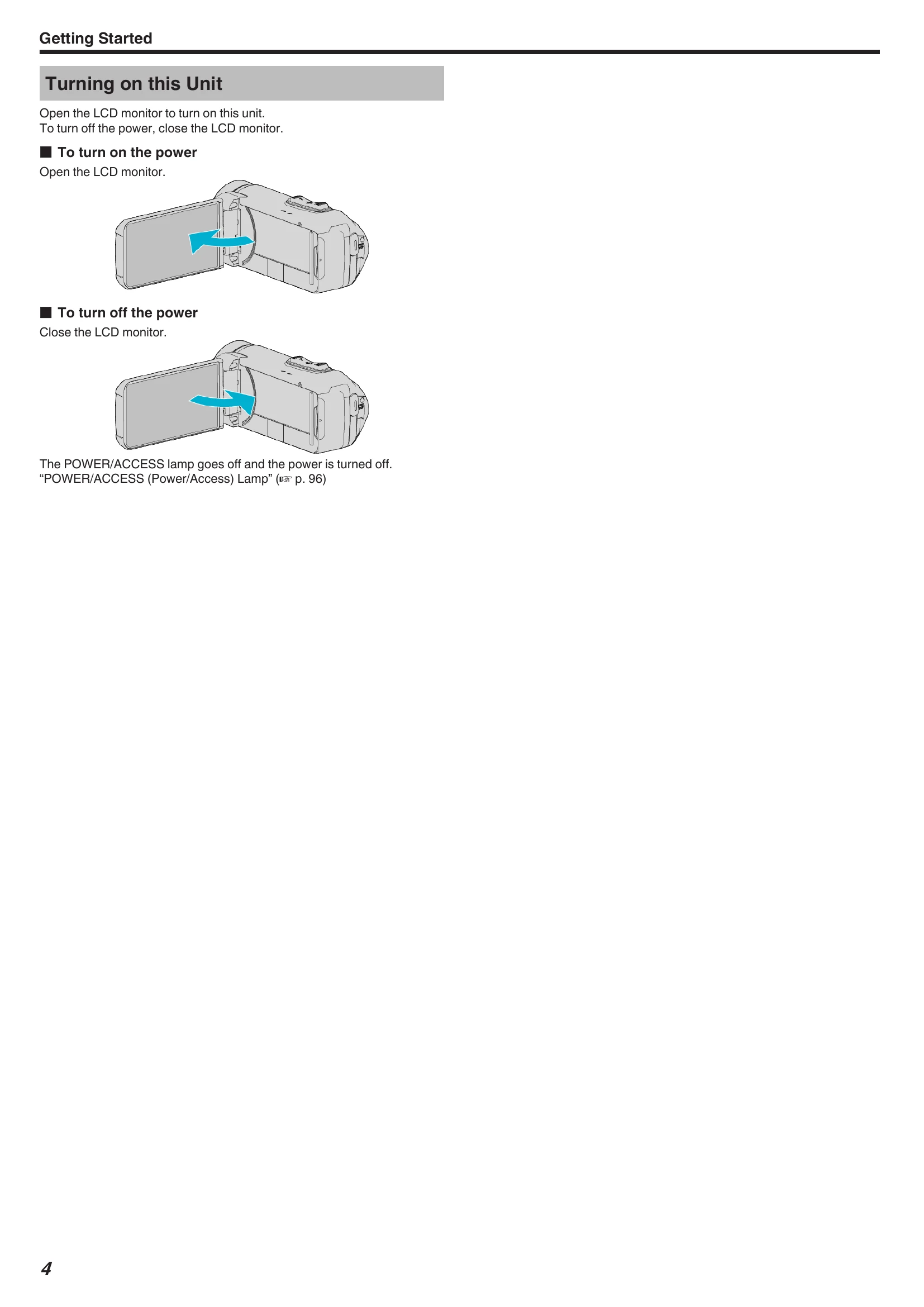

Turning on this Unit:
Open the LCD monitor to turn on the unit. Close the LCD monitor to turn off the power.Charging:
Connect the AC adapter to the unit and an AC outlet. The CHARGE lamp indicates charging status.Inserting an SD Card:
Open the terminal cover, close the LCD monitor, and insert an SD card.Using the Touch Screen:
Tap or drag on the LCD monitor to operate the unit. Adjust the touch panel response if needed.Recording in Auto Mode:
Open the LCD monitor and press the START/STOP button to begin recording. The unit automatically adjusts settings.Using the Silent Mode:
Tap MENU, then SILENT, and select ON to record quietly without operation sounds and with a darkened LCD monitor.Troubleshooting and error codes
| Problem | Solution |
|---|---|
| When the unit is not working properly | Reset this unit by opening the terminal cover, removing power cord and cables, closing LCD monitor, and pressing the reset button with a pointed object. |
| Battery Pack - Unable to charge the battery. | Ensure charging with supplied AC adapter. Check connection. Charge within 10°C to 35°C (50°F to 95°F). Use original AC adapter. |
| Battery Pack - The remaining battery display is not correct. | Use in extreme temperatures or repeated charging may affect display. |
| Battery Pack - The battery runs out quickly even after charging. | Use original AC adapter. Battery performance drops in cold temperatures (-10°C to 0°C). Replace battery if it runs out very quickly even after full charge. |
| Power supply - Unable to turn on the power. | Charge the battery for more than 20 minutes if the power is low. |
| Recording - Recording cannot be performed. | Check the REC button. Set to recording mode. |
| Recording - Recording stops automatically. | Recording stops after 12 or more consecutive hours. Turn off and on the unit. Unit may stop automatically to protect circuit when temperature rises. |
| Recording - The continuous shooting speed of still images is slow. | Speed may drop with repeated use, depending on SD card or recording conditions. |
| Recording - The focus is not adjusted automatically. | Adjust focus manually in dark places or low contrast. Wipe lens. Cancel manual focus in recording menu. |
| Recording - Zoom does not work. | Digital zoom is not available in still image mode or time-lapse recording. Set "ZOOM" in the menu. |
| Recording - Mosaic-type noise occurs. | Set "VIDEO QUALITY" to "UXP" or "XP". |
| SD Card - Cannot insert the SD card. | Insert in correct direction. Do not use miniSD/microSD cards. |
| SD Card - Unable to copy to SD card. | Format the SD card using "FORMAT SD CARD" in "MEDIA SETTINGS". |
| Playback - Sound or video is interrupted. | Interruption between scenes is normal. |
| Playback - There is no sound. | Turn off Silent Mode. Set "OPERATION SOUND" to "ON". Audio sound is not recorded for time-lapse recording. |
| Playback - The same image is displayed for a long time. | Use high speed SD card. Clean terminals. Format SD card. |
| Playback - The motion is choppy. | Use high speed SD card. Clean terminals. Format SD card. Verify PC system requirements. |
| Playback - Cannot find a recorded file. | Select "PLAYBACK OTHER FILE" in the menu. |
| Playback - Images do not appear on the TV properly. | Disconnect/reconnect cables. Reset the unit. |
| Playback - Images are projected vertically on the TV. | Set "VIDEO OUTPUT" to "4:3". Adjust TV screen. |
| Playback - The image displayed on TV is too small. | Set "VIDEO OUTPUT" to "16:9". |
| Playback - When connected to TV via HDMI, proper images/sounds not output. | Disconnect/reconnect HDMI cable. Turn unit off/on. |
| Editing/Copying - Unable to delete file. | Files protected cannot be deleted. Release protection. |
| Computer - Unable to copy files to computer HDD. | Install provided software. Ensure enough free space. |
| Computer - Unable to copy files to DVD/Blu-ray disc. | Requires a recordable DVD or Blu-ray drive. |
| Computer - Cannot upload file to YouTube. | Check YouTube account. File format conversion not possible on unit. |
| Computer - I am using a Mac computer. | Use specific method for Mac file transfer. |
| Computer - Computer cannot recognize SDXC card. | Confirm and update computer OS. |
| Screen/Image - LCD monitor difficult to see. | May be difficult in bright areas. |
| Screen/Image - Color/brightness changes, horizontal stripes appear. | Normal under fluorescent/mercury lamps. Switch image stabilizer setting if needed. |
| Screen/Image - Band or ball of bright light appears. | Change unit direction to avoid light source. Not a malfunction. |
| Screen/Image - Recorded subject is too dark. | Use backlight compensation. Use "GAIN UP". Adjust "BRIGHTNESS ADJUST" to '+'. |
| Screen/Image - Recorded subject is too bright. | Set backlight compensation to "OFF". Adjust "BRIGHTNESS ADJUST" to '-'. |
| Screen/Image - Color looks strange. | Wait for white balance adjustment. Set "WHITE BALANCE" to "MANUAL" or adjust manually. |
| Screen/Image - Color looks different. | Set "WHITE BALANCE" accordingly. |
| Screen/Image - Bright or dark spots on screen. | Normal, 0.01% of pixels may have spots. Not recorded. |
| Other Problems - Buttons on touch screen do not work. | Tap with fingers. Disable "SCREEN LOCK". Save data before service. |
| Other Problems - Image is grainy. | Digital zoom makes image grainy. |
| Other Problems - Unit heats up. | Normal when used for long time. Stop if too warm. |
| Other Problems - Language on display changed. | May occur when connecting to TV via HDMI. |
| Other Problems - Connected to TV via HDMI, proper images/sounds not output. | Disconnect/reconnect HDMI. Turn unit off/on. |
| Other Problems - HDMI-CEC functions do not work properly. | Set "HDMI CONTROL" to "OFF". |
| Other Problems - Unit operates slowly. | Copy all files to computer and erase from unit. |
| Other Problems - Unit does not function properly and error messages appear. | Reset unit due to static discharge, noise, or interference. |
| Other Problems - CHARGE/POWER lamps blinking, operation disabled. | Disconnect/reattach AC adapter. Turn on power. If issue persists, contact service. |
| Error Message? - SET DATE/TIME! | Clock reset after battery depletion. Set clock after charging. |
| Error Message? - COMMUNICATION ERROR | Reconnect USB. Turn devices off/on. Reset unit. |
| Error Message? - FORMAT ERROR! | Reset this unit. |
| Error Message? - MEMORY CARD ERROR! | Check card compatibility. Reset unit. Re-insert SD card. Clean terminals. Format SD card. |
| Error Message? - NOT FORMATTED | Select OK, then YES to format. |
| Error Message? - RECORDING FAILURE | Reset this unit. |
| Error Message? - CANNOT TAKE MORE STILL IMAGES AT THIS TIME | Stop video recording before taking still images. |
| Error Message? - PLAYBACK FAILED | Re-insert SD card. Remove dirt from terminals. Insert before power on. Avoid impact/vibration. |
| Error Message? - VIDEO MANAGEMENT FILE IS DAMAGED... | Select OK to restore. Unrestored videos won't display, may play with "PLAYBACK OTHER FILE". |
| Error Message? - UNSUPPORTED SCENE! | Use files recorded with this unit. |
| Error Message? - UNSUPPORTED FILE! | Use files recorded with this unit. |
| Error Message? - THIS FILE IS PROTECTED | Switch off "PROTECT/CANCEL" in EDIT menu. |
| Error Message? - CHECK CARD'S WRITE PROTECTION SWITCH | Set write protect switch to off. |
| Error Message? - INSUFFICIENT AVAILABLE SPACE | Delete files or move to computer. Replace SD card. |
| Error Message? - RECORDABLE MANAGEMENT CAPACITY LEVEL HAS BEEN REACHED | Move files to computer. Format SD card with "FILE + MANAGEMENT NO". |
| Error Message? - SCENE QUANTITY EXCEEDED LIMIT | Move files to computer. Format SD card with "FILE + MANAGEMENT NO". |
| Error Message? - NUMBER OF FOLDERS OVERFLOW | Move files to computer. Format SD card with "FILE + MANAGEMENT NO". |
| Error Message? - FILE QUANTITY LIMIT EXCEEDED | Move files to computer. Format SD card with "FILE + MANAGEMENT NO". |
| Error Message? - PLAYLIST QUANTITY EXCEEDS LIMIT | Reduce playlist to 99 files or less. |
| Error Message? - RECORDING CANCELLED | Reset this unit. Protect from vibration/shock. |
| Error Message? - CAMERA TEMPERATURE IS HIGH... | Turn off unit to cool down before turning on again. |
