Manual for GZ-R560
Uploaded: Aug. 10, 2025, 12:37 a.m.
Getting Started

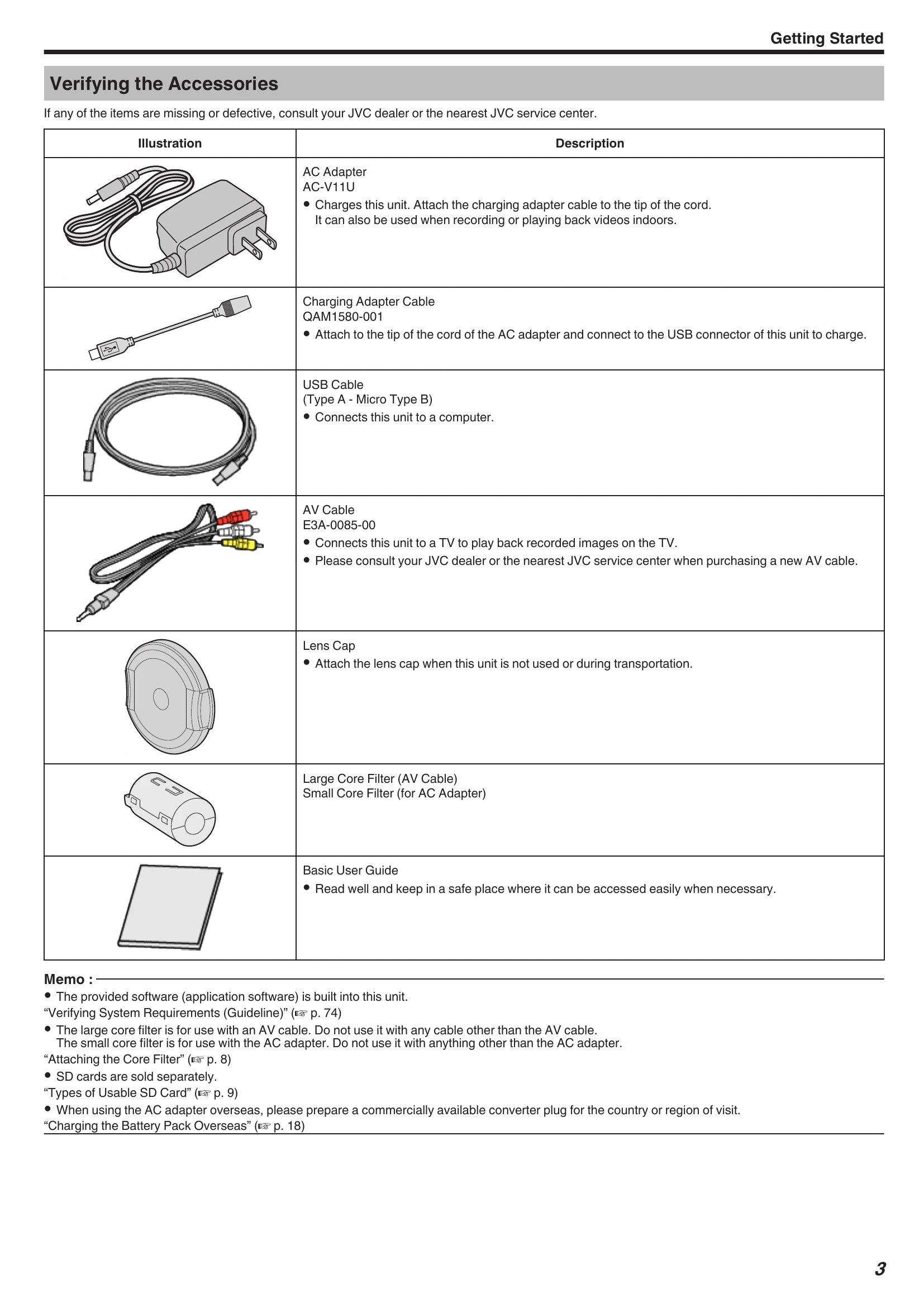

- Verify Accessories: Check all included items.
- Powering On/Off: Open LCD to turn on, close to turn off.
- Charging: Connect the AC adapter to charge the built-in battery.
- SD Card: Insert compatible SD/SDHC/SDXC cards for storage.
- Touch Screen: Navigate menus and options by tapping or dragging.
- Recording: Use Auto mode for automatic adjustments or Manual mode for control.
- Playback: Review recorded videos and still images.
- Troubleshooting: Refer to the guide for common issues and solutions.
Troubleshooting and error codes
| When the unit is not working properly | Solution |
|---|---|
| Unable to charge the battery | Ensure the supplied AC adapter is used. Charge within the 10°C to 35°C temperature range. |
| The remaining battery display is not correct. | Battery performance may be displayed incorrectly after prolonged use in extreme temperatures or frequent charging. |
| The battery runs out quickly even after charging. | Use the supplied AC adapter. Battery performance may temporarily drop in cold temperatures. If issues persist, the battery may need replacement. |
| Recording cannot be performed. | Check the button and set to recording mode by tapping the REC button. |
| Recording stops automatically. | Recording stops after 12 consecutive hours or if the temperature rises. Turn off the unit and wait for it to cool down. |
| The continuous shooting speed of still images is slow. | This can happen with repeated use, depending on the SD card, or certain recording conditions. |
| The focus is not adjusted automatically. | Manually adjust focus in dark or low-contrast scenes. Clean the lens. Cancel manual focus in manual recording menu. |
| Zoom does not work. | Digital zoom is not available in still image mode or time-lapse recording. Set ZOOM in the menu. |
| Mosaic-type noise occurs | Set VIDEO QUALITY to "UXP" or "XP". |
| The inside of the lens is foggy. | Open terminal cover, close LCD monitor, and allow the unit to cool down to reduce temperature. |
| Cannot insert the SD card. | Ensure the SD card is inserted in the correct direction and is compatible. Do not use miniSD or microSD cards. |
| Unable to copy to SD card. | Set REC MEDIA to SD card. Format the SD card if necessary. Release write protection switch on SD card. |
| Sound or video is interrupted. | This is not a malfunction. It can occur at connecting sections between scenes. |
| There is no sound. | Turn off Silent Mode. Set OPERATION SOUND to "ON" in SETUP menu. Audio is not recorded in TIME-LAPSE RECORDING. |
| The same image is displayed for a long time. | Use a high speed SD card (Class 4+). Clean SD card terminals. Format SD card. |
| The motion is choppy. | Use a high speed SD card (Class 4+). Clean SD card terminals. Format SD card. Verify PC system requirements for playback. |
| Cannot find a recorded file. | Change playback media or select "PLAYBACK OTHER FILE" in the menu. |
| Images do not appear on the TV properly. | Disconnect and reconnect cables. Reset the unit. |
| Images are projected vertically on the TV. | Set VIDEO OUTPUT to "4:3". Adjust TV screen. |
| The image displayed on TV is too small. | Set VIDEO OUTPUT to "16:9". |
| When connected to the TV via the HDMI mini cable, proper images and sounds are not output. | Disconnect and reconnect HDMI cable. Turn the unit off and on again. |
| The buttons on the touch screen do not work. | Tap with fingers, not fingernails or gloves. Disable "SCREEN LOCK". |
| The image is grainy. | Digital zoom enlarges the image, making it grainy. |
| This unit heats up. | This is normal for extended use. Stop if it becomes too warm. |
| The language on the display changed. | May occur when connecting to a TV with a different language setting via HDMI. |
