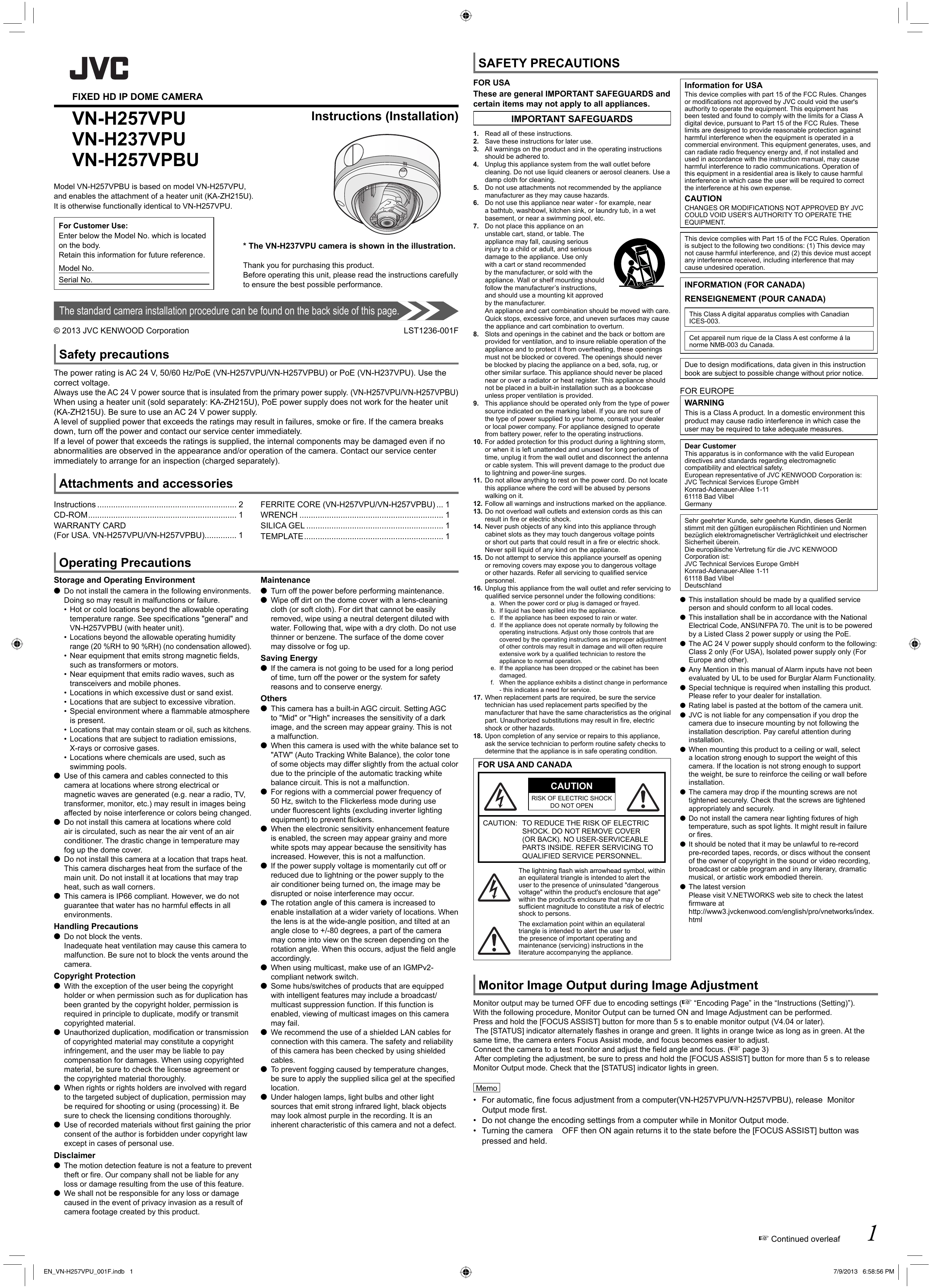

Installation Guide for VN-H257VPU

Brand: JVC

Category: Digital Media Camera

Document Type: Installation Guide

Language: EN

Uploaded: Nov. 21, 2025, 8 p.m.

Warranty Information

Please consult the warranty card for warranty information.

Operation Summary

This document provides instructions for installing and operating the JVC Fixed HD IP Dome Camera models VN-H257VPU, VN-H237VPU, and VN-H257VPBU. It covers safety precautions, installation procedures including removing the dome cover, inserting an SD card, mounting the camera, adjusting the field angle and focus, and connecting cables. It also details operation precautions, maintenance, power-on procedures, and troubleshooting.

Troubleshooting and error codes

Symptom	Causes and Countermeasures
No monitor image is output.	The image output may be turned OFF on Internet Explorer. Check the monitor output setting.
The external mic sound is not heard.	Check the MIC connection. Is the audio setting turned OFF? ( "Instructions (Setting)" → "Audio Page")
Movement of network image is not smooth.	If the monitor image output is turned ON, a lower frame rate is set for network images. If you turned the monitor image output to OFF, set the frame rate again.( "Instructions (Setting)" - "Internet Explorer Setting" - "Encoding Page")
Lens is out of focus.	Is the focus adjustment gear engaged? Check the location of the catch.
The SD card does not go in all the way.	Check the orientation of the SD card.
