Manual for LT-37DR7BJ/SJ

Manual for LT-37DR7BJ/SJ

Brand: JVC

Category: Television

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 6:19 p.m.

Manual Publish Date: 2006-04-01

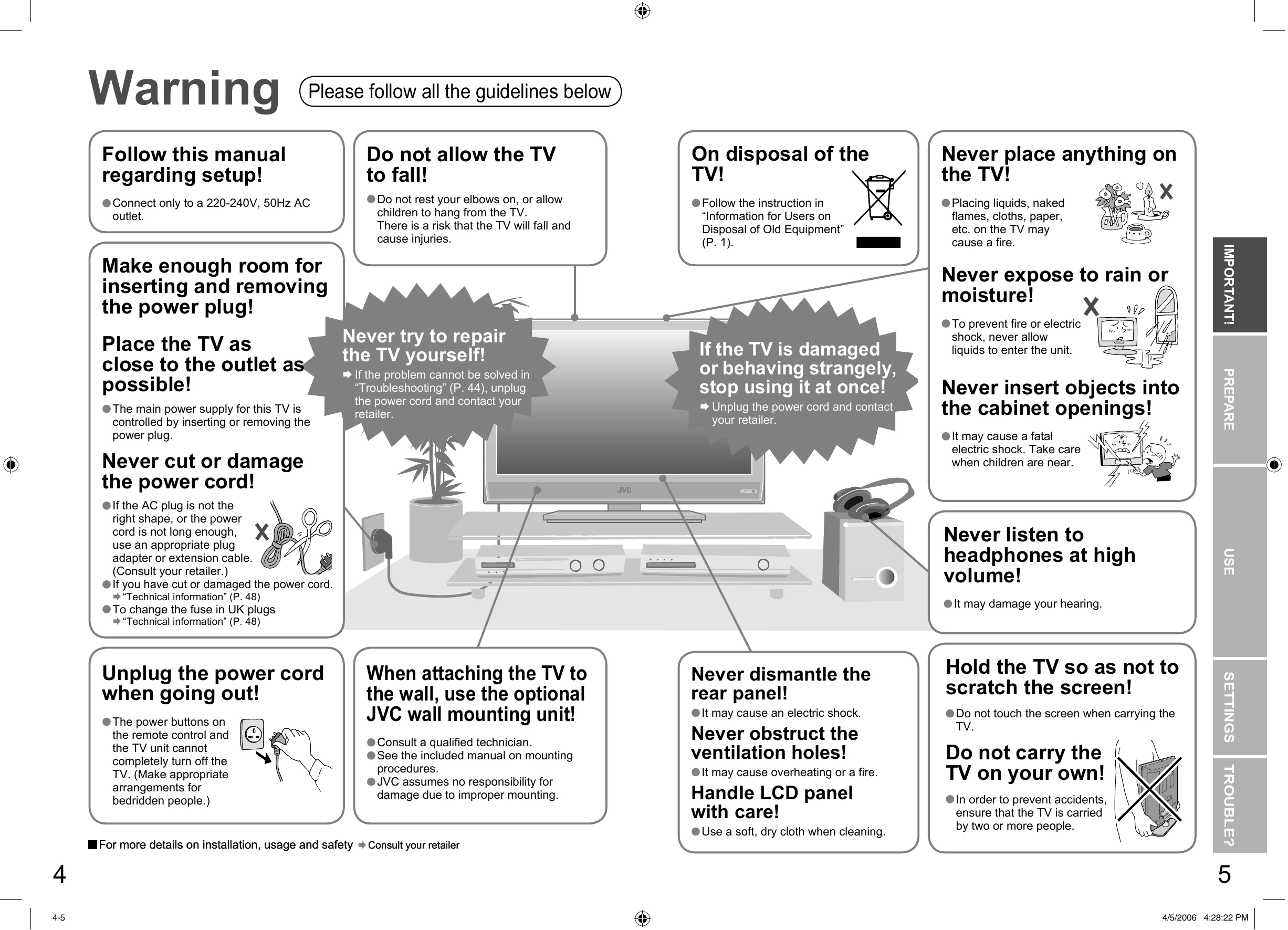

Warranty Information

null

\n

Getting started

\n
    \n
  • Names of all the parts
    • \n
  • Basic connections
    • \n
  • Connecting external devices
    • \n
  • Initial settings
    • \n
  • Editing DTV channels
    • \n
  • Editing ATV channels
    • \n
\n

Let's try it out

\n
    \n
  • Enjoying your new TV!
    • \n
  • Watching TV
    • \n
  • Using EPG
    • \n
  • Viewing teletext
    • \n
  • Watching videos / DVDs
    • \n
\n

Try the advanced features

\n
    \n
  • Useful functions
    • \n
  • Operate JVC recorders and other devices
    • \n
\n

Just the way you like it

\n
    \n
  • Customising your TV
    • \n
  • Using DTV
    • \n
  • Advanced picture adjustment
    • \n
\n

Troubleshooting and error codes

Problem Actions Page
Severe noise or snow Is the TV connected correctly to the aerial?
Change the direction of the aerial.
Is the aerial or its cable damaged? Consult your retailer
Is the ATV reception poor, too? Following the instructions in "Severe noise or snow" can solve this problem. 44
Is there a DTV transmission tower nearby? Turn "Attenuator" to "On", since the radio waves are too strong. 35
Patterns, stripes or noise • There may be problems at the antenna, radio waves, or the area you live in, where reception is bad. Consult your retailer.
• Is the aerial receiving interference from high-voltage power lines or wireless transmitters? Consult your retailer
• Are connected devices too close to the TV? Insert the minimum distance between the aerial and the cause of interference until no interference
Ghosting (Doubling of images) • Are you receiving interference from signals reflected off mountains or buildings? Adjust the direction of your aerial, or change to a good-quality directional aerial
• If you connected S-Video output device, check the "S-IN" setting. If the top of the image is distorted, check the video signal quality itself. 27
• If movement appears unnatural when receiving a signal from a DVD player, etc. with 625p (progressive-scanning), change the output setting of the external device to 625i (interlace-scanning).
I can't turn it on! Is the power cord connected to the AC outlet correctly?
Remote control stops working Unplug TV, several minutes later plug it in again.
DTV screen is frozen • Hold down and simultaneously to restart. on the TV
Some functions do not work • It is not a malfunction. Some functions (dark background) in the menu do not work depending on the situation.
Screen Aspect ratio changes unintentionally 20
PC screen alignment is off 26
Picture Unnatural colour >>> Adjust "Colour" and "Bright-1". Check your "Colour System".
Poor picture quality • Noise >>> Set to the following functions. Picture Mode : Standard Super DigiPure : Max
Dull picture >>> Set to the following functions. Picture Mode : Bright Super DigiPure : Min
Black or white dots appear on the screen LCD panels use fine dots ("pixels") to display images. While more than 99.99% of these pixels function properly, a very small number of pixels may not light, or may light all the time. Please understand that this is not a malfunction.
The shadow of a different image is seen on the screen. This is not a malfunction, it is known as "temporary image retention", a phenomenon that is unique to LCD panels. The shadow will disappear after some time. 41
An error message does not disappear • Deleting a DTV channel may cause an error message to appear while other channels displayed. Register channels again in "Automatic Search" 41
Sound Poor sound Adjust the "Bass" and "Treble". • If receiving a poor signal in "Stereo / I-II", switch to "Mono".
No sound from the audio component • Audio signals received from EXT-5 cannot be sent to the "AUDIO OUT" terminal.
No sound • Check if the device is compliant with HDMI. Switch "Audio" in "HDMI Setting" to "Digital" or "Auto" for HDMI devices, or "Analogue" or "Auto" for DVI devices.
Functions Green and distorted screen Wait a little for the signal to stabilize when switching the signal format for an "HDMI" device.
Some inputs cannot be selected in the sub-picture • DTV channels, EXT-4, EXT-5 inputs, and PC mode cannot be selected in the sub-picture. RGB input signal of EXT-1 and EXT-2 are not available in dual-picture mode.
"Feature Not Available" • Is the T-V LINK compatible device connected to EXT-2? Is the SCART CABLE "Fully Wired"? Is the T-V LINK compatible device turned on?
Error message "ACI Error" After confirming all the conditions above, press "OK" button again. Press to start ACI again.
"No Recording" A problem occurs at the recorder.
"No Recording Possible" The displayed video cannot be recorded.
"No Recording Media Problem" The recorder is not ready for recording. Check the videotape or DVD disc.
"No Recording Device Busy" The recorder is recording another programme, or is playing.
