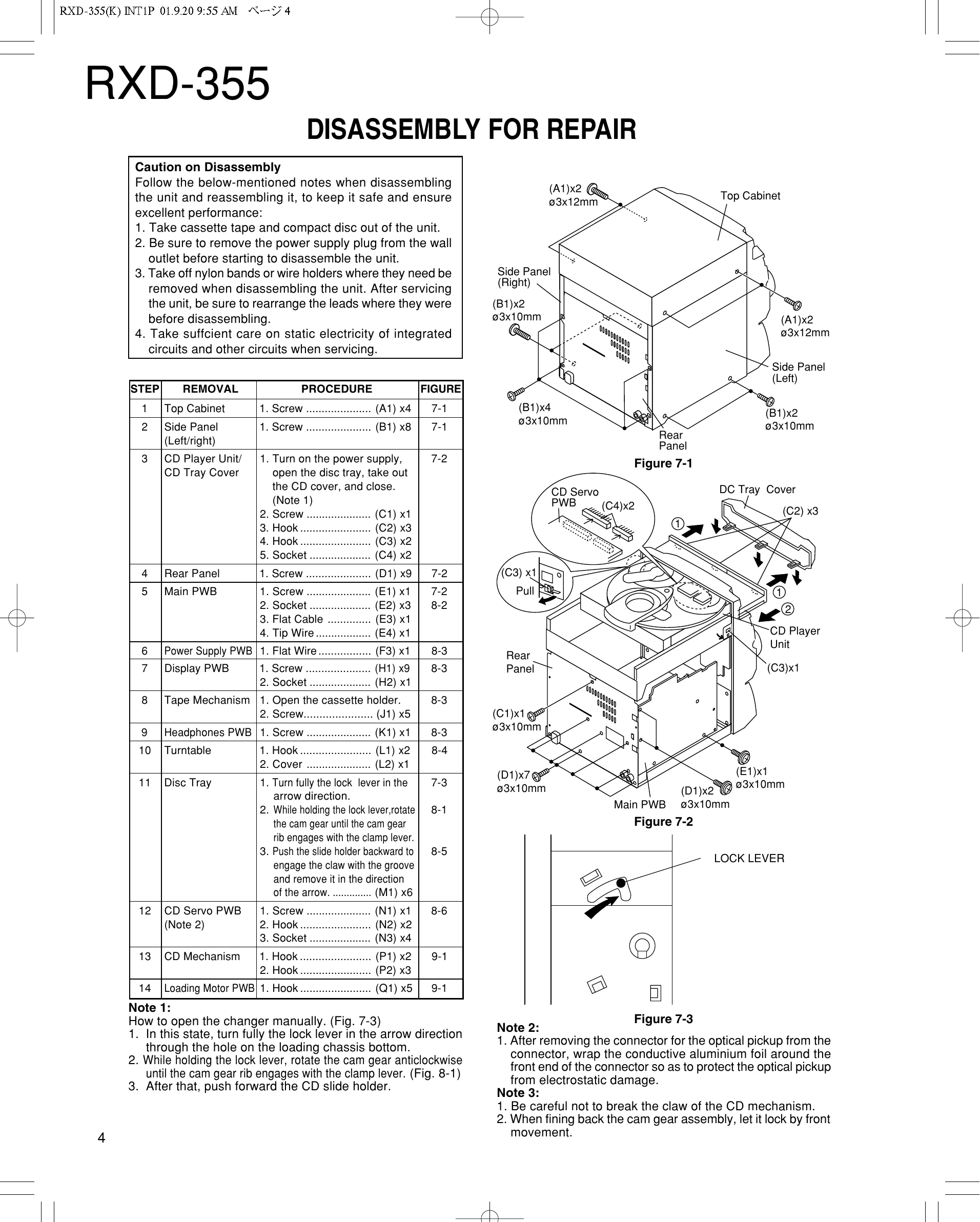

Parts/Service for RXD-355/355H/355E
Uploaded: Nov. 21, 2025, 7:46 p.m.
Manual Publish Date: 2001-09-01
Front Panel Operation:
- CD/TAPE/TUNER/AUX: Selects the input source.
- DISC SKIP, OPEN/CLOSE: Controls CD disc operations.
- STANDBY/TIMER: Powers the unit on/off and sets the timer.
- EX.BASS/DEMO: Activates enhanced bass or demo mode.
- SOUND MODE: Selects different sound profiles.
- REVERSE MODE: Controls tape playback direction.
- CLOCK: Sets and displays the clock time.
- VOLUME CONTROL: Adjusts the audio volume.
- TIMER: Sets timer functions.
- MEMORY/SET: Used for setting memory functions and parameters.
- PHONES: Connects headphones.
- PLAY/STOP/REC/PAUSE: Controls tape and CD playback and recording.
Cassette Deck Operation:
- PLAY/REC/PAUSE/STOP: Standard tape control functions.
- REVERSE MODE: Controls playback direction.
Tuner Operation:
- BAND: Selects AM or FM band.
- TUNING: Tunes radio frequencies.
- CLOCK/TIMER: For setting clock and timer functions.
CD Player Operation:
- DISC SKIP, OPEN/CLOSE: Controls CD disc operations.
- PLAY/STOP: Standard CD playback controls.
Troubleshooting and error codes
| Error Contents | Display | Notes |
|---|---|---|
| Output while Device Protection Operation | 'PROTECT' | Due to over current detection or unit in protect circuit operation. |
| DSP Control Error | 'ER-AP**' | 10:DSP Control Error (general) |
| TAPE | Mechanism Error | 'ER-TA**' |
| Pick-Up Mechanism Error | 'ER-CD**' | |
| CD/VCD | CD Changer Mechanism Error | 'ER-CD***' |
| Tray Error | 'ER-CD**' | |
| Focus Not Match | 'NO DISC' | |
| Micro Communication Error | 'ER-CD***' | |
| TAPE Mechanism Error | 'ER-TA**' | |
| TUNER | PLL UnLock | 'ER-TU**' |
| RDS Connection | WEAK SIG |
