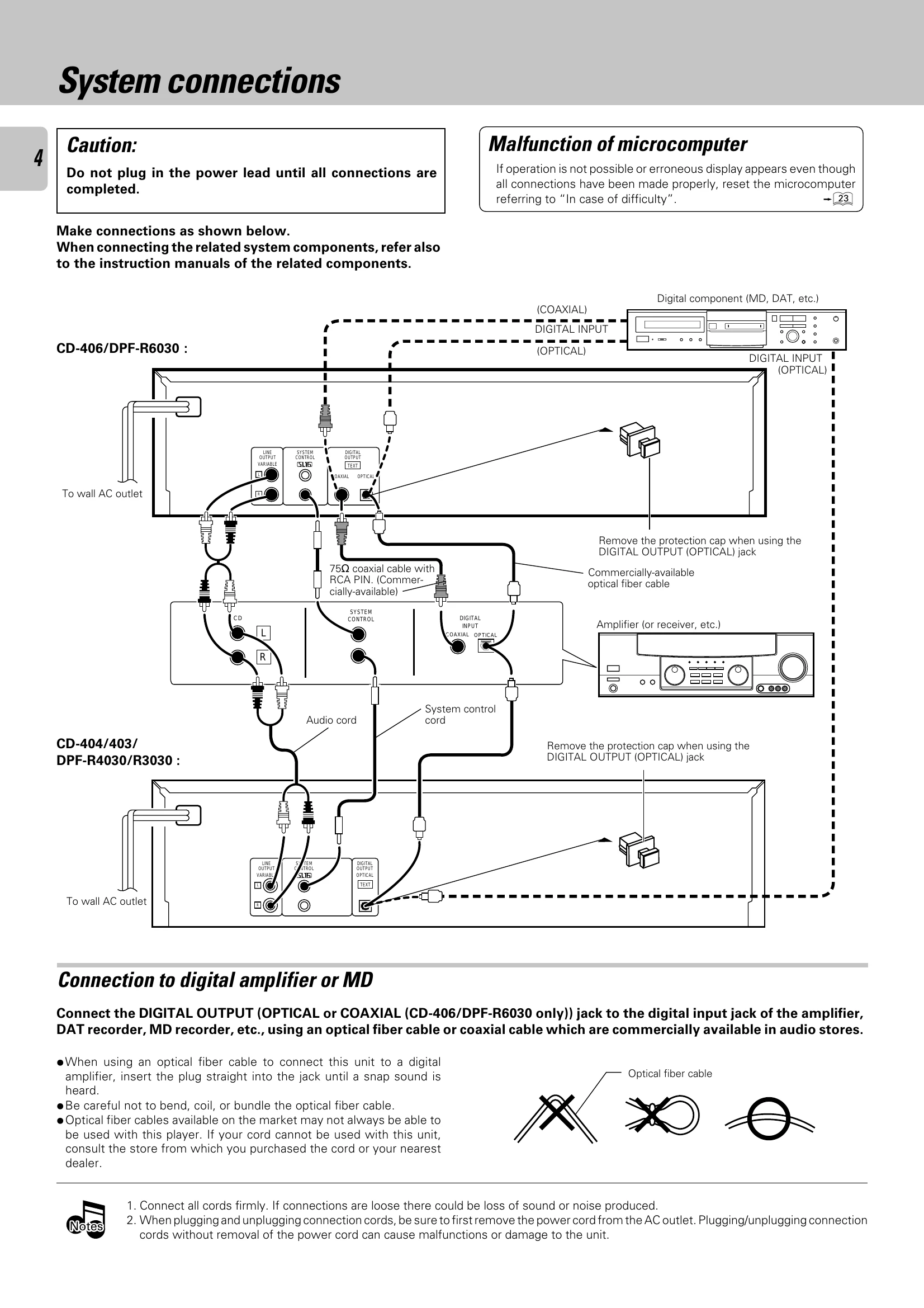

Manual for CD-406/DPF-R6030

Manual for CD-406/DPF-R6030

Brand: KENWOOD

Category: Audio

Document Type: Manual

Language: EN

Uploaded: Nov. 21, 2025, 8:15 p.m.

Warranty Information

KENWOOD follows a policy of continuous advancements in development; specifications may change.

Unpacking

Unpack the unit carefully and make sure that all accessories are put aside so they will not be lost. Examine the unit for any possibility of shipping damage. If your unit is damaged or fails to operate, notify your dealer immediately. If your unit was shipped to you directly, notify the shipping company without delay. Only the consignee (the person or company receiving the unit) can file a claim against the carrier for shipping damage.

We recommend that you retain the original carton and packing materials for use should you transport or ship the unit in the future.

Keep this manual handy for future reference.

Accessories

  • Audio cord
  • System control cord
  • AC plug adaptor
  • Remote control unit (Except for CD-403/DPF-R3030)
  • Batteries (R6/AA) (Except for CD-403/DPF-R3030)

Special features

  • CD-TEXT support (CD-406/DPF-R6030 only)
  • Advanced technologies incorporated in pursuit of improved sound quality and stability (CD-406/DPF-R6030 only)
  • Convenient features for dubbing CD onto tape
  • Easy operation functions

Troubleshooting and error codes

Symptom Cause Remedy
The unit is not turned ON with the ON/STANDBY (POWER / ⁄) switch ON. • Power plug is loosely connected.
• With the power plug connected to the switched AC outlet of an amplifier, the power of the amplifier is turned off. 		• Insert the power plug firmly to the AC outlet.
• Turn the amplifier's power ON.
Sound is not heard with the ‣/II key on. • Disc is loose.
• Disc is too dirty.
• Condensation has occurred on the optical lens unit.
• The connection cords are inserted loosely.
• Output level is attenuated too low. 		• Insert disc properly.
• Wipe off the dust on the surface of the disc referring to "Disc handling precautions". 22
• Replace the disc with a new one.
• Remove any condensation from the unit by referring to the section entitled, "Caution on condensation". 22
• Connect all connection cords firmly.
• Adjust the output level with OUTPUT key on the remote control unit. 5
Music is interrupted. (Sound is skipped.) • Disc is too dirty.
• Disc is cracked.
• Oscillation is applied to this unit. 		• Wipe off the dust on the disc surface referring to "Disc handling precautions". 22
• Replace the disc with a new one.
• Try selecting a place where no strong vibrations occur by changing the installation place, etc.
Play begins as soon as the unit is turned ON. • This unit is designed so that play begins automatically when the unit is turned ON if a disc is already loaded. • If automatic play is not required remove the disc from the player before setting the unit to STANDBY mode.
Remote control operation is not possible. • Batteries are exhausted.
• The remote control unit is too far away from the main system, controlling angle is too large, or there is an obstacle in between. 		• Replace with new batteries.
Operate the remote control unit within the controllable range. 8
