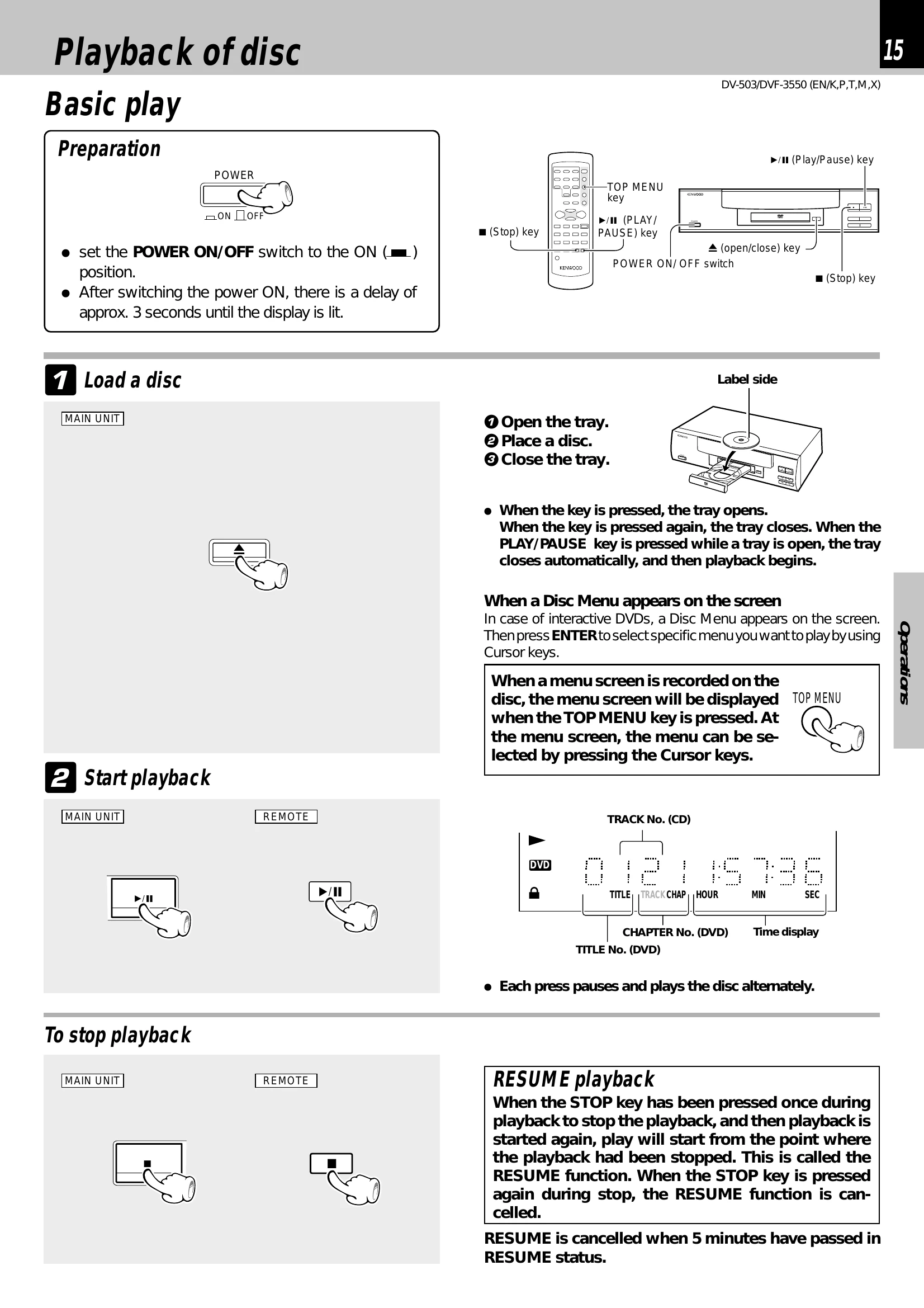

Basic Playback:
  1. Set the POWER ON/OFF switch to ON.
  2. Open the tray, place a disc, and close the tray.
  3. Playback begins automatically or press the Play/Pause key.
  4. Press the Stop key to stop playback. The Resume function allows playback to resume from the last stopped point.
Disc Playback Features:
  • Skipping: Use the Skip keys to move forward or backward through chapters/tracks.
  • Searching: Use the Search keys to fast forward or reverse through the disc content.
  • STEP: Advance one frame at a time.
  • Slow Motion: Playback at reduced speeds.
On-Screen Banner Display:
  • Press the ON SCREEN key during playback to access features like Audio Language, Subtitle Language, Camera Angle, Bookmarks, and Repeat options.
  • Use Cursor keys to navigate and ENTER to select.
MP3 Playback:
  • Insert MP3 media. Playback may start automatically.
  • Use the On-Screen display to navigate files and folders.
  • Program playback allows you to set a desired playback order.

Troubleshooting and error codes

DVD player unit
Symptom Cause Remedy
Playback does not start when the play (►) key is pressed. There is no disc in the player.
• There are no signals recorded on the side of the disc being played.		 Load a disc and press the play (►) key.
• Turn the disc over and properly place it on the disc tray.
Playback starts but no image/sound is seen/heard. • The TV is not turned on.
The connection cords are not properly connected.		 • Turn on the TV.
• Properly reconnect the connection cords.
The picture is disrupted when the image is fast forwarded or fast reversed. • The picture is slightly disrupted during fast forward and fast reverse operations. • This is not a malfunction.
No sound is heard. The audio output cords are not properly connected.
• The volume control of the TV or amplifier is not adjusted properly.
• The player is in a special playback mode.		 • Properly connect the audio cords.
• Set the sound volume to an appropriate level.
• Press the play (►) key to resume normal playback mode.
The picture does not look good or the picture/sound quality is poor. • A nearby device is generating noise.
• The disc is dirty.
The disc is damaged.
• There is condensation on the optical lens.		 • Separate this unit as far as possible from the device you think is generating the noise.
• Refer to the "Disc handling precautions" section and wipe dirt from the disc.
• Use a new disc.
Refer to the "Beware of condensation" section and evaporate the condensation.
It takes a while for the disc to start playing. • Time is required for the unit to detect the disc type and size and for the rotation of the motor to stabilize. This is not a malfunction. Approximately 10 to 20 seconds are required for a disc to start playing, although the time differs depending on the disc.
The tray opens automatically. • The disc is not placed horizontally. • Properly place the disc on the tray.
The top and bottom of the screen cannot be seen. • The video format of the disc being played does not match that of the connected TV monitor. Refer to the "Video formats" section, and use a disc with the appropriate video format for your TV or a TV with the appropriate video format for the disc.
The subtitle is not displayed. • The DVD disc being played does not contain the recording of subtitles.
The subtitle mode is set to off.		 • The subtitle cannot be displayed when the DVD disc being played does not contain the recording of subtitles.
Press the SUBTITLE-ON/OFF key to switch on the subtitle mode.
The voice (or subtitle) language cannot be changed. • The DVD disc being played does not contain the recording of more than one audio (or subtitle) language. • The voice (or subtitle) language cannot be changed when the DVD disc being played does not contain the recording of more than one voice (or subtitle) language.
The viewing angle cannot be changed. • The DVD disc being played does not contain the recording of more than one angle.
You are attempting to switch the angle in a DVD section where more than one angle is not recorded.		 • The viewing angle cannot be changed when the DVD disc being played does not contain the recording of more than one angle.
More than one viewing angle may be recorded only in limited sections in a disc.
Playback will not start even after a title is selected. • A viewing restriction (RATING) has been set for the disc. • Check the viewing restriction level (RATING) setting.
The viewing restriction level (RATING) can not be changed. • You have forgotten the viewing restriction (RATING) password. • Set the initial setup to the factory setup with the following procedure.
① In POWER ON condition, keep the (STOP) key and the ►►►► (Search) key pressed at the same time.
② When both keys are pressed, the region code of the unit, the software version, etc. will be displayed on the display. (When nothing is done, the display of this information continues.)
③ Press the ON/OFF key to go to Power OFF.
④ When Power ON is performed with the ON/OFF key, the settings become the default factory settings.
The voice or subtitle language selected in the initial setting is not played. • The DVD disc being played does not contain the recording of the selected voice or subtitle language. Use a DVD disc containing the recording of the selected voice or subtitle language.
No message appears on the TV screen after a key is pressed. • The function for displaying message on the TV screen (On-Screen Messages) is set to off. • Set On-Screen Messages to on.
Menu screen messages are not shown in the desired language. • The menu language function (MENU) is not set. • Set the disc menu language function (MENU) as required.
Remote control unit
Remote control operation is not possible. Batteries are exhausted.
The remote control is too far away from the system, the controlling angle is deviated or there is an obstacle in between.		 Replace with new batteries.
Operate the unit inside the remote controllable range.
Inhibition icon
The inhibition icon is displayed and remote control is not possible. • Playback is restricted intentionally by the software producer. • The operation is inhibited. Please try another operation.
