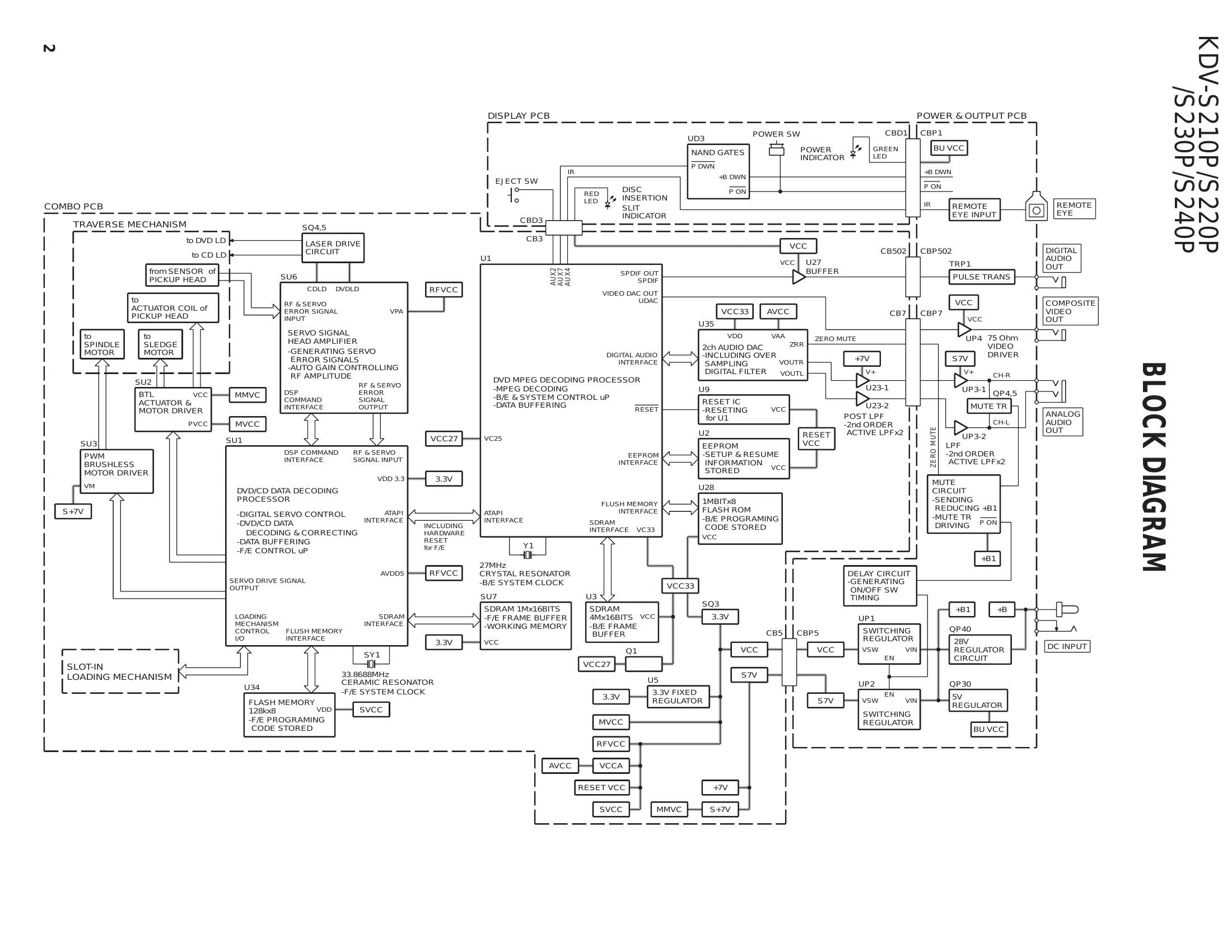

Parts/Service for KDV-S210P / S220P / S230P / S240P
Uploaded: Nov. 21, 2025, 8:23 p.m.
Manual Publish Date: 2004-05
Test Mode:
1. Turn on power.
2. Immediately after turning on, use the remote controller to input RETURN, then PROGRAM, then RANDOM.
3. Pressing keys may show a hand mark (not effective), continue pressing keys.
4. The screen will display the B/E firmware version on the top line and F/E firmware version on the bottom line.
5. The display will disappear soon after.
6. Other operations can be conducted during display.
1. Turn on power.
2. Immediately after turning on, use the remote controller to input RETURN, then PROGRAM, then RANDOM.
3. Pressing keys may show a hand mark (not effective), continue pressing keys.
4. The screen will display the B/E firmware version on the top line and F/E firmware version on the bottom line.
5. The display will disappear soon after.
6. Other operations can be conducted during display.
Troubleshooting and error codes
| Problem | No picture or sound | - Unit is not powered on. | - Plug in the power cord. |
|---|---|---|---|
| - Power switch is OFF. | - Turn the power switch ON. | ||
| - Incorrect input/output selection. | - Select the correct input/output. | ||
| - Speaker cord is disconnected. | - Connect speaker cord. | ||
| - Volume is set to minimum or muted. | - Adjust volume or unmute. | ||
| Disc cannot be played | - Disc is dirty or damaged. | - Clean or replace the disc. | |
| - Disc is not compatible. | - Use a compatible disc. | ||
| - Disc is inserted incorrectly. | - Insert the disc correctly. | ||
| Remote control does not work | - Batteries are depleted. | - Replace batteries. | |
| - Obstruction between remote and unit. | - Remove obstruction. | ||
| - Remote control is not pointed at the sensor. | - Point remote control at the sensor. |
