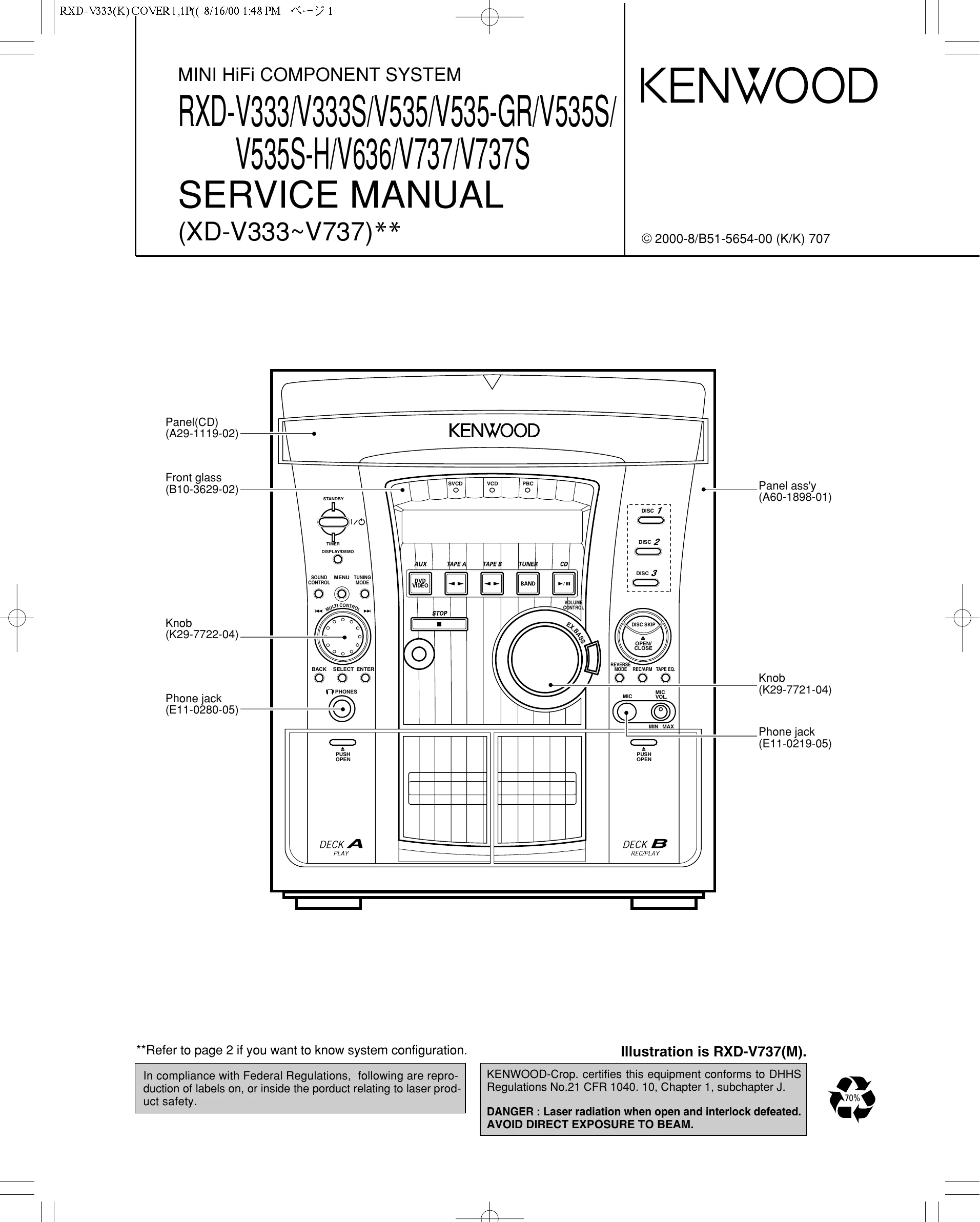

Parts/Service for RXD-V333//V535//V636//V737
Uploaded: Nov. 21, 2025, 6:21 p.m.
Manual Publish Date: 2000-08-01
1. Initialization
1-1 Setting of the Initial Conditions: While pressing the [ENTER] key, plug the AC CORD into the AC wall outlet.
1-2 Initializing Operation: A microcomputer is initialized for start when the AC power is turned on when pressing the [ENTER] key. During this time, CD and cassette mechanisms are also initialized. The display shows 'INITIALIZE' and then returns to standby.
1-3 Initial Items: Covers settings for Amplifier (Power, Volume, Balance, Input Selector, etc.), Tuner (Band, Frequency, Mono/Stereo), Cassette Deck (Reverse Mode, Tape A/B, Direction), Aux (DVD/Video Display), and Other (Clock, Timer).
2. Destination List of Tuner: Details tuner settings (Band, Channel Space, IF, RF, Emphasis) for different model configurations (M,Y; K2, K3, etc.).
3. Test Mode: Guides for entering test modes for Sub Clock Oscillation Diagnosis and Deck/CD test modes. This involves specific key presses during power-on.
Troubleshooting and error codes
| 3-3-1 Deck Test Mode | OPERATION | ||
|---|---|---|---|
| KEY | DISPLAY | If the REC/ARM key is pressed, the system record for 4 seconds. Then, it rewinds to the REC starting position and plays back automatically. If the REC/ARM key is pressed, during the 4 seconds REC operation, the system records further for 4 seconds, then returns to the starting position of the first 4 seconds REC operation and plays back. | |
| REC/ARM | Normal display | ||
| *Mechanism SW Detection | |||
| HALF SW | DISPLAY | HALF SW | DISPLAY |
| A PACK SW | "T" (The first dot) | A CrO2 SW | "A"(The second dot) |
| B PACK SW | "P"(The third dot) | B RVS REC SW | "E"(The fourth dot) |
| B FWD SW | "T"(The sixth dot) | B CrO2 SW | "E"(The seventh dot) |
| A PLAY SW | "Moon" (Segment) | B PLAY SW | "Sun"(Segment) |
| 3-3-2 CD Test Mode | OPERATION | ||
|---|---|---|---|
| KEY | DISPLAY | ||
| CD-PLAY/PAUSE (Change the mode 05 and 03 alternately by the stop key.) |
05 **:** (**:** ) 03 --:-- |
Tracking-servo on. Tracking-servo off. |
|
| DISC 1 | 01 --:-- | STOP | |
| (Cyclically changed in the stop mode only.) | 07 **/** 08 **/** 09 **/** 10 **/** |
Adjustment value/mean value TB value TG value TE value |
FB value FG value RF value VC value |
| STOP | 01 --:-- | Stop (Press it 1time.) Cancel the test mode. (Press it 2 times.) |
|
| TAPE EQ. | Ex.01~02 | CD track no. up. | |
| REVERSE MODE | Ex.02~01 | CD track no. down. |
