Brand: KENWOOD
Category: Audio
Document Type: Manual
Language: EN

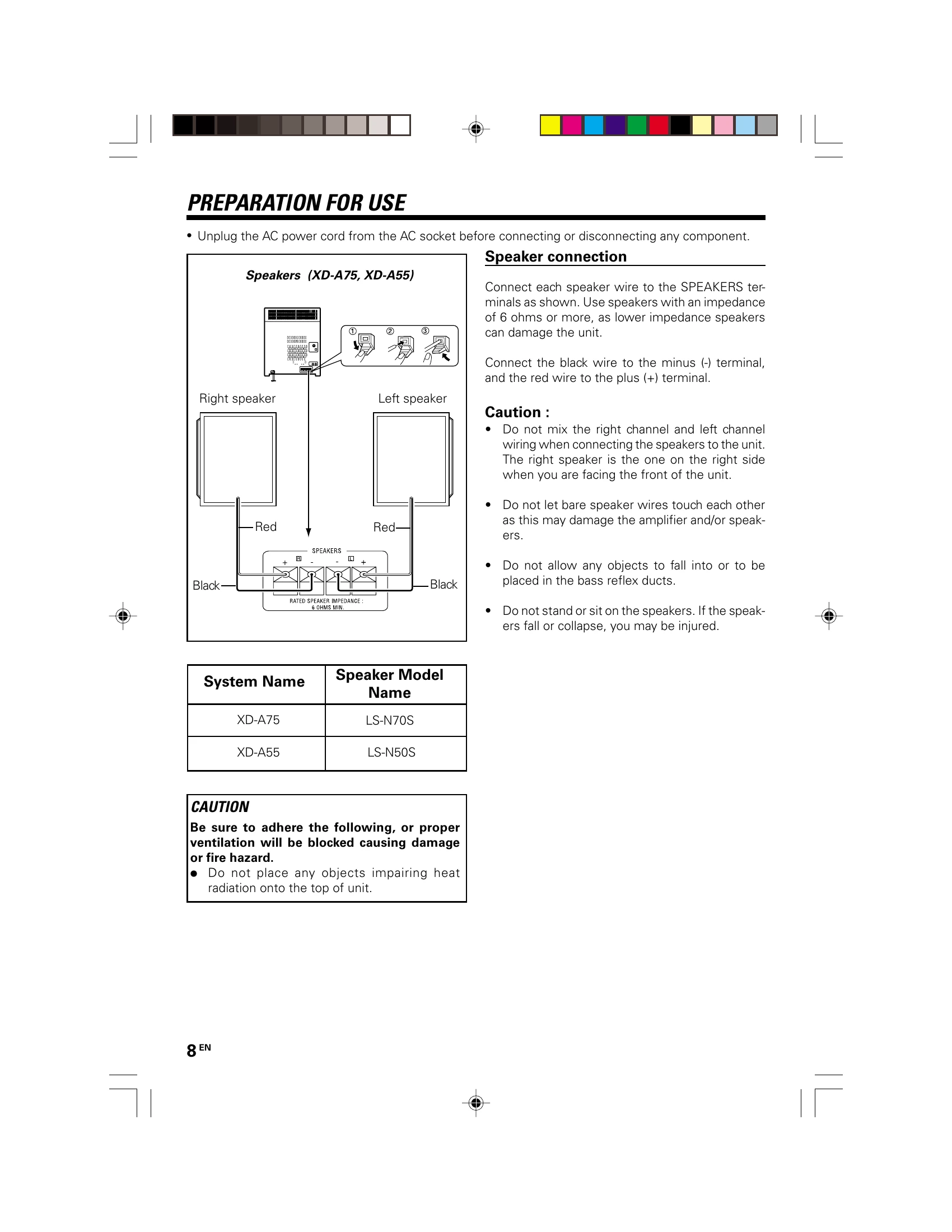

Manual for XD-A75
Uploaded: Nov. 21, 2025, 7:32 p.m.
Warranty Information
Refer to the warranty card for details; no specific period mentioned in this manual.
BASIC OPERATION
CD Playback: Press POWER/ON/STANDBY, then CD. Open the disc tray, place CDs, and press OPEN/CLOSE. Select disc number and press PLAY (►) to start. Use STOP to stop, PAUSE (II) to interrupt.
Radio Operation: Press POWER/ON/STANDBY, then TUNER (BAND). Select FM ST, FM, or AM. Use TUNING/TIME (▲ ▼) for manual or auto tuning.
Cassette Operation: Press POWER/ON/STANDBY, then TAPE (A/B). Open cassette door, load tape, and press PLAY (►). Use STOP to stop. Fast forward/rewind with P.CALL (▶▶ or ▷▷).
Recording: Select source (Radio or CD), load tape B, press REC PAUSE. Press PLAY (►) to start recording.
Timer Functions: Set clock first. Use TIMER to set playback or recording start times.
Sleep Operation: Play desired source, press TIMER until "SLEEP" appears, set time with TUNING/TIME, press MEMORY/SET.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
| No power | AC power cord is not plugged in. | Plug the AC power cord into the AC outlet. |
| No sound or low volume | Volume is set too low. | Turn the VOLUME CONTROL clockwise or press the VOLUME up button. |
| Headphones are connected. | Disconnect the headphones. | |
| CD does not play | CD is dirty or loaded incorrectly. | Clean the disc or load it correctly. |
| Disc tray does not open/close | Obstruction in the tray. | Remove any obstruction. |
| Remote control does not operate | Batteries are depleted or inserted incorrectly. | Replace batteries or insert them correctly. |
