Manual for KDW1274W

Before Operating

• To Open the Door: Pull the door handle. Opening the door during operation interrupts all functions.
• To Close the Door: Push baskets fully in, lift door upwards until it clicks, do not slam.
• Items Not Suitable: Avoid certain items like towel/sponge, cracked china, cast iron pans, and items not dishwasher safe.

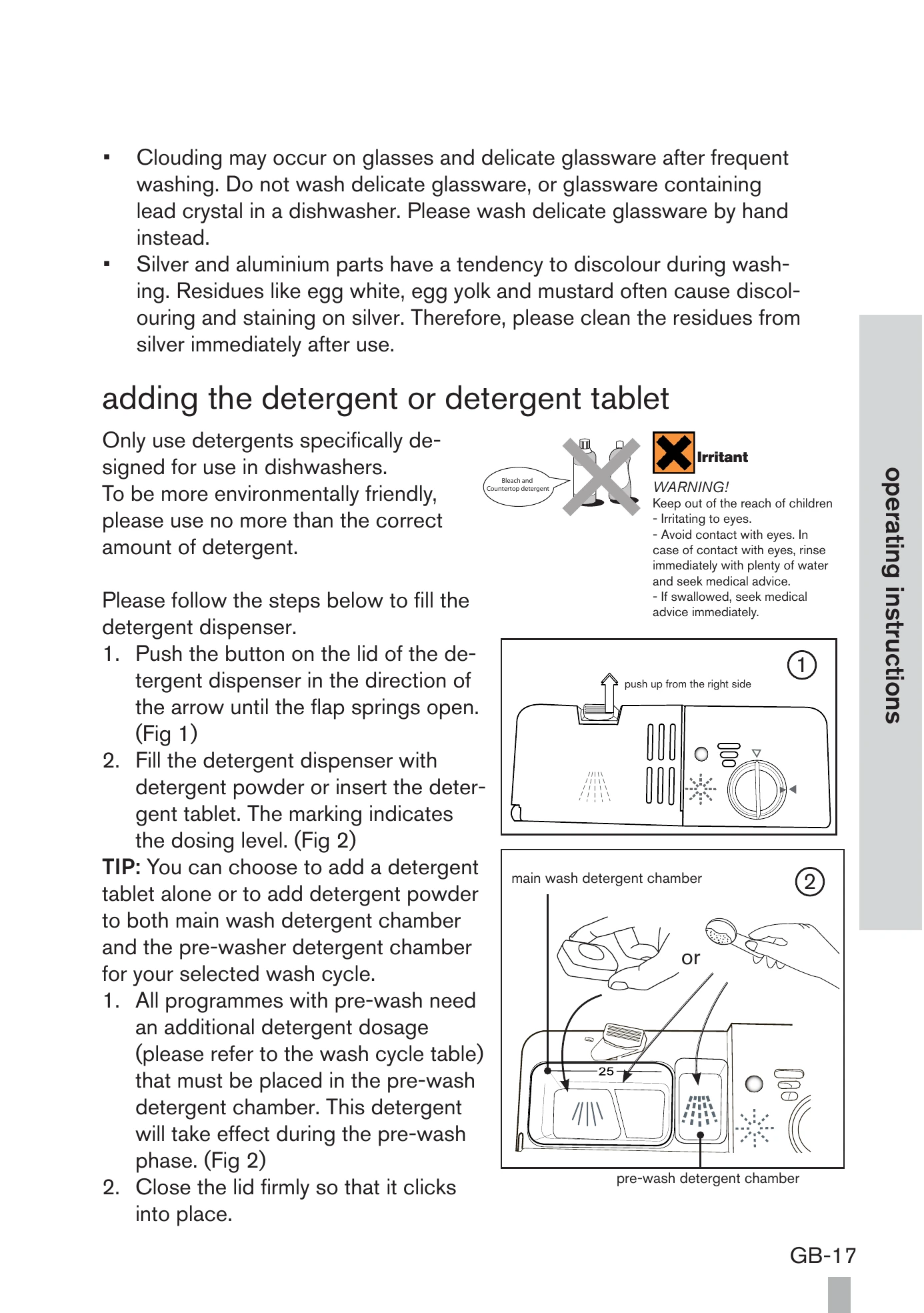

• Detergent: Use only dishwasher-specific detergents. Fill dispenser for main wash and pre-wash if needed.
• Rinse Aid: Helps drying and prevents spots. Fill reservoir as indicated.
• Salt: Use if water is hard to prevent deposits. Fill reservoir and adjust setting.

Loading the Dishwasher

• Remove food residues before loading.
• Ensure items do not overlap.
• Load to allow water access to all surfaces.
• Place hollow items upside down.
• Wide based items at an angle for water runoff.
• Do not block spray arms.
• Ensure small items do not fall through.

Starting a Wash Cycle

• Connect to power and water supply.
• Load dishes.
• Add detergent.
• Close door firmly.
• Press ON/OFF.
• Select programme.
• Cycle will begin shortly.

Changing a Programme

• Open door slightly.
• If dispenser opened, let cycle complete.
• If dispenser closed, press and hold programme button for 3 seconds to cancel, then select new programme.

At the End of a Programme

• Unit will sound, display returns to "--:--".
• Leave door closed until ready to unload, or open fully to cool dishes.

Switching Off the Unit

• Press the "off" button for energy saving.
• Disconnect from mains if not in use for a long period.

Unloading the Dishwasher

• Allow dishes to cool before unloading.
• Unload lower basket first, then cutlery, then upper basket to prevent drips.

Delay Start

• Load dishes, press "on", select programme, press "delay start".
• Set delay time in 1-hour increments.
• Close door; unit starts at assigned time.

Cleaning After Use

• External Care: Wipe door seals and control panel with a damp cloth.
• Internal Care: Clean filtering system regularly under running water.
• Spray Arms: Check and clean jets if blocked.

Frost Precaution

• Avoid temperatures below 0°C. If left in unheated place, disconnect, empty, close door, disconnect water inlet/drain.

Moving the Dishwasher

• Disconnect from mains, water inlet/drain. Remove unit with hoses discharged. Avoid over-tilting.

Maintenance After Prolonged Period of Non-Operation

• Disconnect from mains, water inlet/drain. Slightly open door to prevent smells. Ensure compartment is clean.

Troubleshooting

• Refer to fault codes (E1, E3, E4, E6, E7) and technical/general problems sections for solutions.
