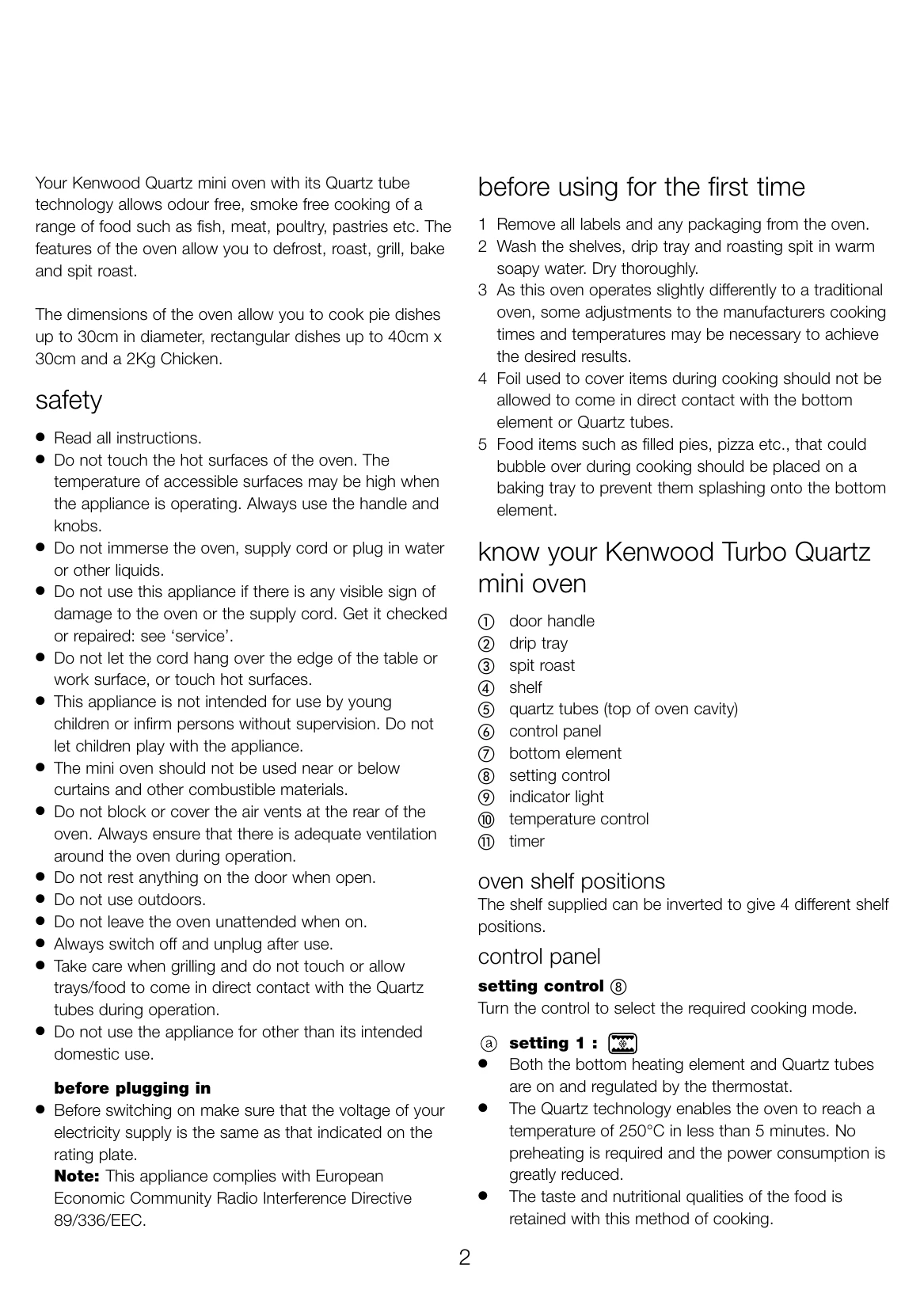

Manual for OV340A

Before using for the first time

1. Remove all labels and any packaging from the oven.
2. Wash the shelves, drip tray and roasting spit in warm soapy water. Dry thoroughly.
3. As this oven operates slightly differently to a traditional oven, some adjustments to the manufacturers cooking times and temperatures may be necessary to achieve the desired results.
4. Foil used to cover items during cooking should not be allowed to come in direct contact with the bottom element or Quartz tubes.
5. Food items such as filled pies, pizza etc., that could bubble over during cooking should be placed on a baking tray to prevent them splashing onto the bottom element.

Know your Kenwood Turbo Quartz mini oven

Key parts include: door handle, drip tray, spit roast, shelf, quartz tubes, control panel, bottom element, setting control, indicator light, temperature control, and timer.

Oven shelf positions

The shelf supplied can be inverted to give 4 different shelf positions.

Control Panel

Setting control: Turn to select cooking mode. Settings include grill, spit roast, and defrost/keep warm.

Indicator light: Illuminates when the oven is on and switches off when the set temperature is reached.

Temperature control: 10 positions from 60°C to 250°C.

Timer: Up to 120 minutes. The oven operates only when a cooking time is selected.
