Warranty Information
Contact your dealer or distributor for information regarding repair work or fuse replacement.
Operation Summary

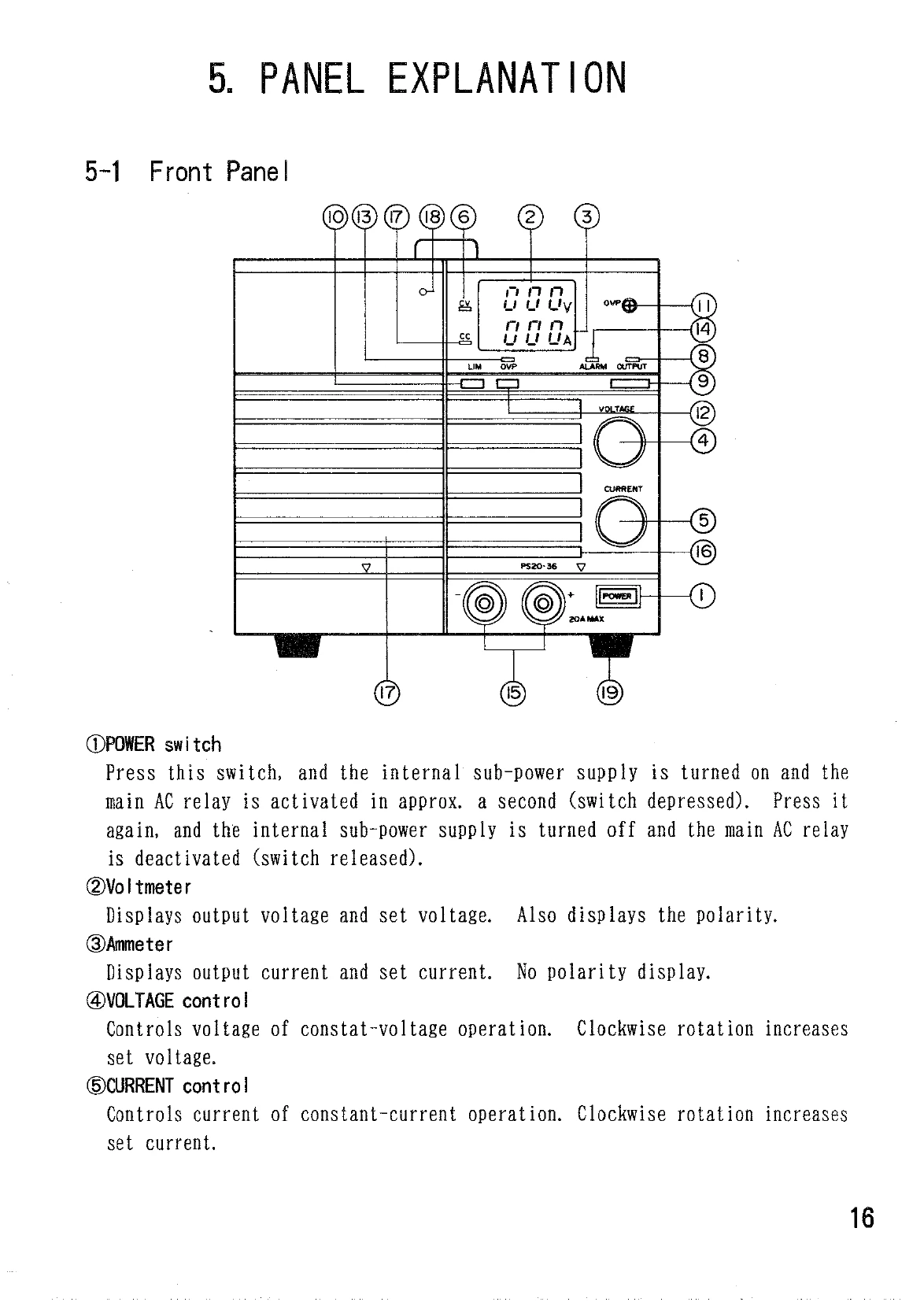

Power On/Off: Use the POWER switch on the front panel. The OUTPUT switch controls power to the load.
Setting Voltage/Current: Use the VOLTAGE control for voltage and the CURRENT control for current. The LIM key allows checking set values.
Over-Voltage Protection (OVP): Set OVP voltage using the OVP control and check with the OVP key. If OVP is exceeded, the output turns off and the OVP LED lights up.
Remote Control: Switches on the rear panel allow remote control of the main relay and output on/off, as well as voltage and current control via external voltage or resistors.
Monitoring: Voltage and current can be monitored via analog output signals on the rear panel. Alarm and status signals are also available.
Resetting Protection: Over-voltage and alarm conditions can be reset via specific procedures involving the POWER switch and external control signals.
Troubleshooting and error codes
| Trouble | Check points | Possible causes |
|---|---|---|
| Power is not turned on. | *All LED on the front panel does not go on. |
*Poor contact or breakage of the power cord *Defects in the input switch *Blowing of the sub input fuse |
| Only the decimal points are displayed on the indicators on the front panel after power on. | *Control switch 1 of S₁ on the rear panel is set improperly. | *Improper setting of S₁ |
| Voltage and/or current may not be set or controlled. |
*Control switches S₁ on the rear panel are improperly set. *Others |
*Improper setting of S₁ *Defects in the circuits |
| No output is given. |
*Is the supply voltage within the rating? *Others |
*No output is given if a 200 V type unit is connected to a 100 V type power line. *Blowing of the main input fuse *Defects in the circuits |
| Alarm occurs when power is turned on. |
*Is the supply voltage within the rating? *Others |
*An alarm is give if a 100 V type unit is connected to a 200 V type power line. *Defects in the circuits |
| Output voltage exceeds set voltage. (Over-voltage) |
*Control switches S₂ on the rear panel are set improperly. *Others |
*Improper setting of S₂ *Defects in the circuits |
| Unstable output |
*Control switches S₂ on the rear panel are set improperly. *Is the supply voltage within the rating? *Are +S and -S lines connected properly? *Others |
*Improper setting of S₂ *The supply voltage is out of the input voltage rating. *Connect the +S and -S lines properly. *Defects in the circuits |
