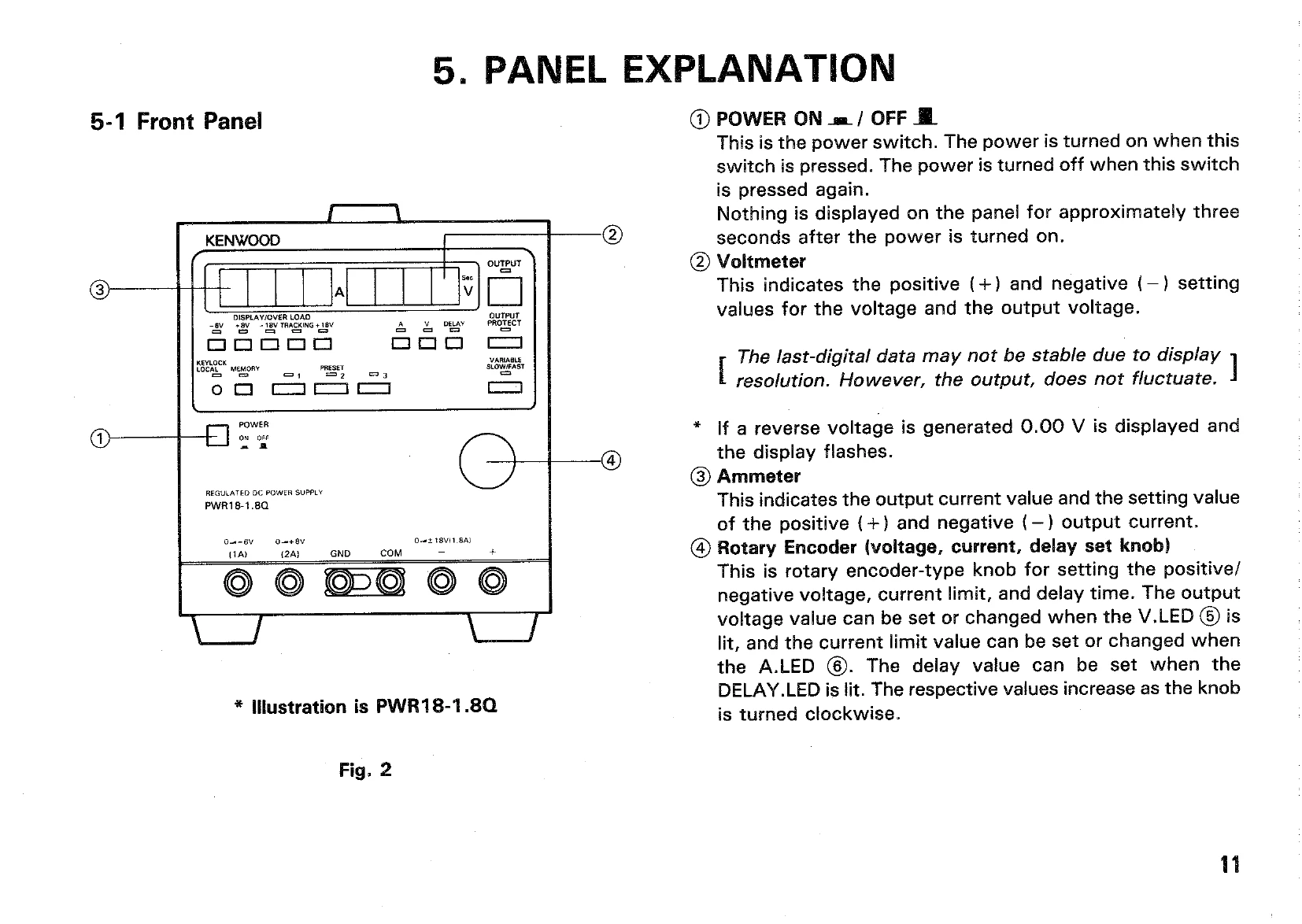

Manual for PWR18-1T
Uploaded: Nov. 21, 2025, 8:43 p.m.
Basic Operation Summary
This manual provides detailed instructions for operating the KENWOOD PWR18-1T and PWR18-1.8Q regulated DC power supplies. Key features include dual tracking, seven-segment LED displays, preset functions, delay functions, and excellent man-machine interface with a rotary encoder. The manual covers setting up the device, including initial parameters upon startup and using the rotary encoder for adjustments. It details how to use the power supply as a positive or negative stabilized output, tracking procedures, preset features, delay procedures, output protection, and key lock functions. Maintenance, troubleshooting, and application examples are also included.
Troubleshooting and error codes
| Trouble | Check point | Cause |
|---|---|---|
| The unit cannot be turned on. | None of the LEDs light up within 5 minutes after the power turned ON. | - The power cord is not connected or is broken. - The power switch is defective. - The fuse is burnt. |
| Excessive output | Neither the output voltage nor the output current decreases. | - The power transistor is broken or the control circuit is malfunctioning. |
| Unstable output | 1) Is there any change in the power voltage? 2) Can any oscillation be observed? 3) Is any strong magnetic or electric field present near the unit? |
1) The power voltage exceeds the limits of a rated input voltage. 2) Oscillation can be caused by special types of loads. 3) The unit should be separated from the oscillating source. |
