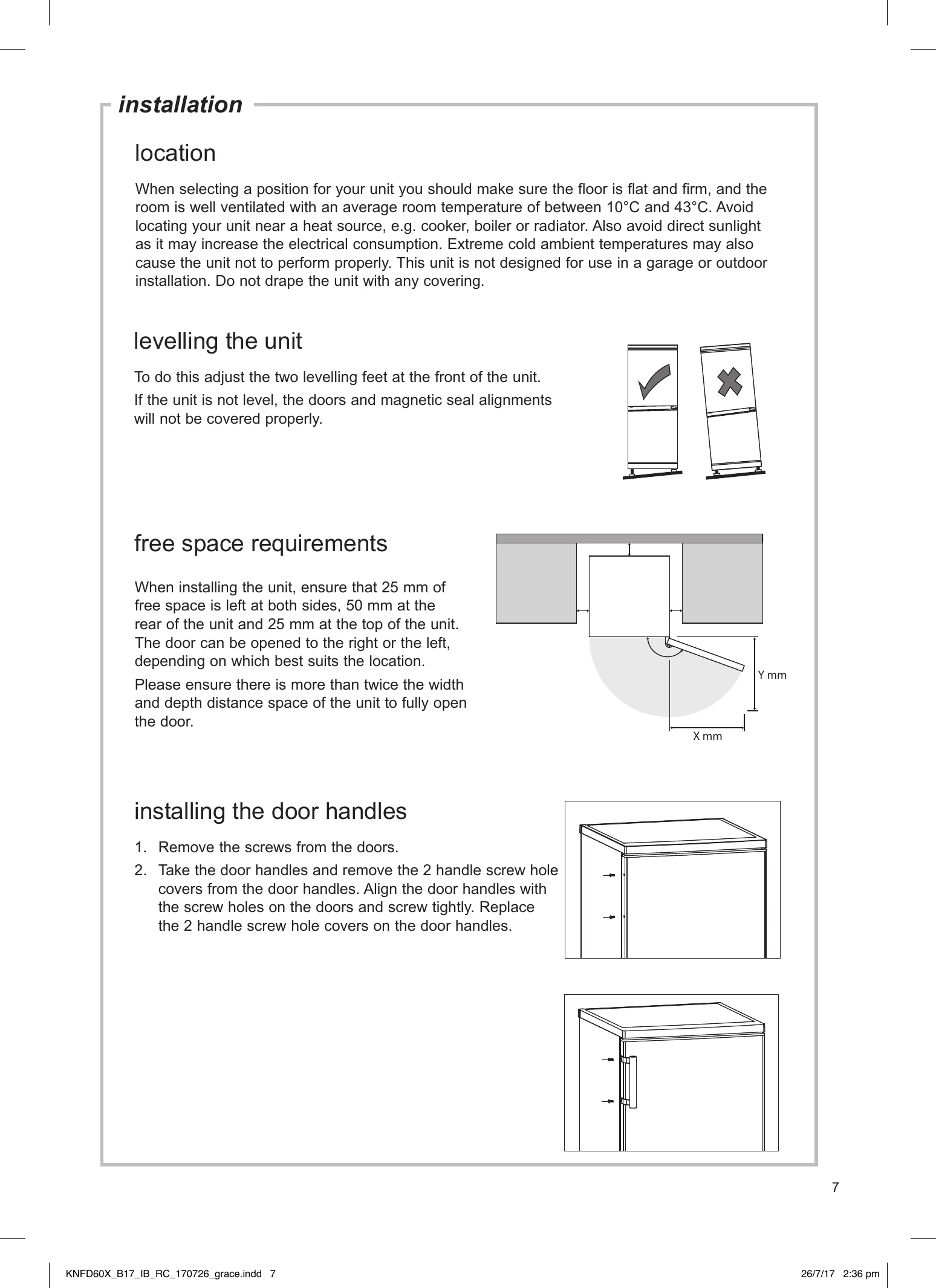

Installation Guide for KNFD60B17 / KNFD60X17
Uploaded: Nov. 21, 2025, 6:09 p.m.
Warranty Information
None
Switching on your unit
- Connect the mains cable to the mains socket.
- Press °C repeatedly to set the fridge compartment temperature (2 to 6°C) and the freezer compartment temperature (-16 to -22°C).
- Ensure the unit is cool enough to sufficiently chill your food; wait 24 hours before filling it with food.
Super Freeze Mode
Press °C repeatedly to select super freeze mode. The * light will illuminate. Temperature in the freezer compartment will be quickly lowered. To switch off, press °C repeatedly to select other freezer temperature settings.
Holiday Mode
If you will be away for a period, set the fridge to holiday mode by pressing °C repeatedly. The light will illuminate. Temperature in the fridge will automatically set to 15°C. Do not store any food in the fridge during holiday mode. To switch off, press °C repeatedly to select other fridge temperature settings.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
| The unit is not operating. | The unit is not plugged in. | Plug the unit into the mains socket. |
| The mains fuse has blown or the circuit breaker has tripped. | Check the mains fuse or circuit breaker. | |
| The unit is not cooling sufficiently. | The doors are opened too often. | Do not open the doors more than necessary. |
| The door is not closed correctly. | Ensure the doors are closed properly. | |
| The temperature is set incorrectly. | Adjust the temperature settings. | |
| There is too much food in the unit. | Reduce the amount of food. | |
| The unit is placed too close to a heat source. | Move the unit away from the heat source. | |
| The ventilation openings are obstructed. | Ensure ventilation openings are clear. | |
| The compressor is running frequently. | The unit is switched on for the first time. | This is normal. The unit will stabilise after a few hours. |
| A large amount of food has been added. | This is normal. The unit will stabilise after a few hours. | |
| The doors are opened too often. | Do not open the doors more than necessary. | |
| The temperature is set incorrectly. | Adjust the temperature settings. | |
| The lights do not work. | The lamp is loose. | Tighten the lamp. |
| The lamp is faulty. | Contact a qualified technician. | |
| Condensation on the outside of the unit. | The ambient temperature has changed. | Wipe off any moisture residue. If the problem continues, contact a qualified technician. |
