Brand: KENWOOD
Category: Refrigerator
Document Type: Manual
Language: EN

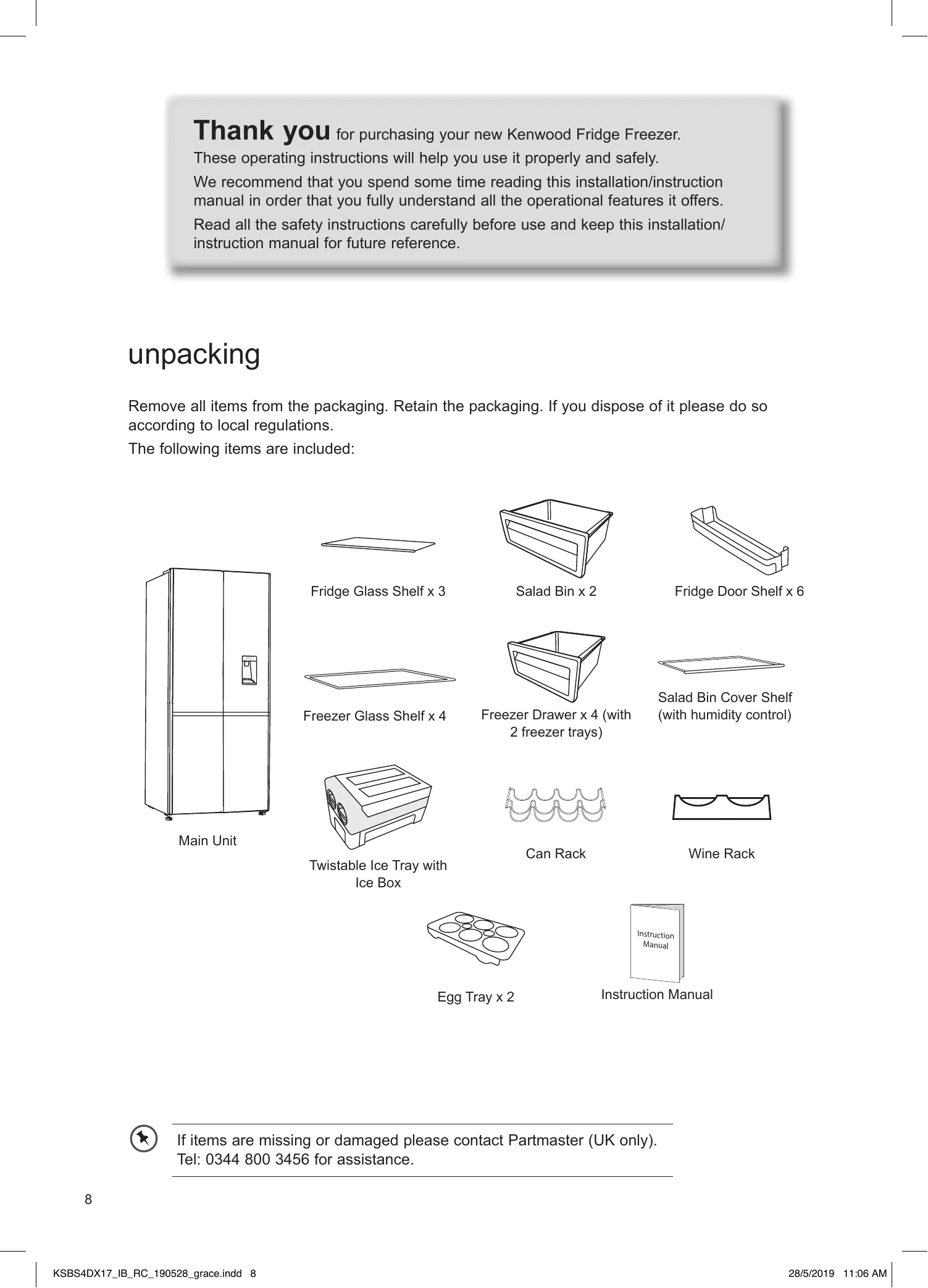

Manual for KSBS4DX17
Uploaded: Nov. 21, 2025, 8:36 p.m.
Warranty Information
Contact Partmaster for missing or damaged items, or seek professional servicing for repairs.
- Temperature Setting: Adjust fridge (2-8°C), My Fresh Choice (-5 to -18°C), and freezer (-15 to -25°C) using the control panel.
- Special Modes: Utilize Super Cool for rapid cooling, Super Freeze for quick freezing, Holiday mode for energy saving while away (fridge 15°C, freezer -18°C, no food in fridge), Eco mode (fridge 6°C, freezer -17°C), and Smart mode (fridge 5°C, freezer -18°C).
- Alarms: A door alarm sounds if a door is left open for over 2 minutes.
- Child Lock: Activate/deactivate by pressing and holding Mode/Unlock for 5 seconds.
- Ice Tray: Twist to release ice cubes into the ice box.
- Water Dispenser: Fill the water tank, ensure it's correctly inserted, and use the lever to dispense water. Lock the dispenser when not in use.
- Cleaning: Regularly clean the interior and exterior with mild detergent and water. Clean the water tank and dispenser as needed.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
| The unit does not operate. | Power supply is not connected. | Check the power supply connection. |
| The plug is not properly connected to the socket. | Ensure the plug is fully inserted. | |
| The unit is not sufficiently cool. | The temperature is not set correctly. | Adjust the temperature settings. |
| The doors are opened too frequently or left open. | Reduce door openings or ensure doors are closed properly. | |
| The unit is too close to a heat source. | Relocate the unit away from heat sources. | |
| Food is packed too tightly. | Allow air to circulate around the food. | |
| Noises inside the unit. | The circulation of refrigerant. | This is normal. |
| The compressor motor working. | This is normal. | |
| Condensation appears on the outside of the unit. | A change in room temperature. | Wipe off moisture residue. If it persists, contact a technician. |
